Sany STC1000T Second Hand Truck Cranes 80m 100ton Mobile Crane

Place of Origin China
Brand Name Sany
Certification CE,ISO9001
Model Number STC1000T
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Maximum Lifting Height 12.3 - 80m
Maximum Lifting Weight 100ton Axle Number 5
Jib 2 Section  production Date 2018
High Light

80m Second Hand Truck Cranes


STC1000T Second Hand Truck Cranes


100ton Mobile Crane

Leave a Message
Product Description

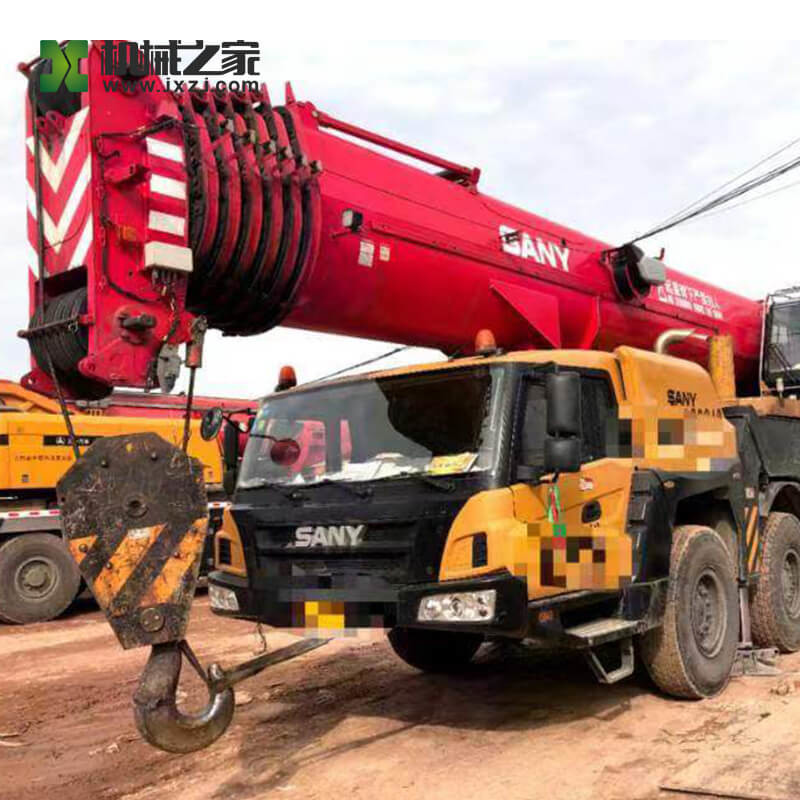

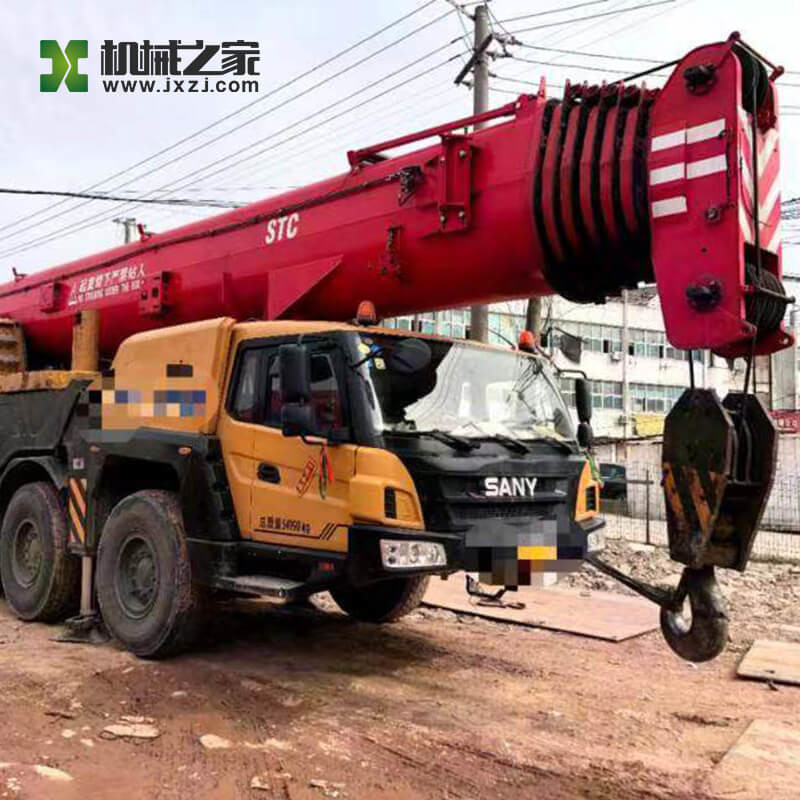

Used Truck Crane Sany STC1000T Second Hand Truck Mobile Crane


Production Details:


Model NO.



Boom Type Telescopic


Max. Rated Lifting Capacity


100000 kg Max. Lifting Height of Jib 64.5M


Max Gradeability


45% Working Diameter 20m


Transport Package


Complies with Min. export packaging requirements Specification



Driving mileage


450000m Working hours 4000h




Sany Place of Origin China


HS Code


  Supply Capacity 10 Units Per Month


Super long U-shaped main boom

7-section main boom, using advanced single-cylinder bolt telescopic technology, the main boom length is 12.3m~64.5m, the basic boom moment is 4920kN.m, the longest boom moment is 2400kN.m, and the jib length is 15.5m. Choose 1 section of 6m main boom extension section and 2 sections of 6m jib extension section, the maximum lifting height is 97.3m, the farthest lifting range is 72m, and the installation angles are 0°, 15°, 30°.


Compact, flexible and easy to transition

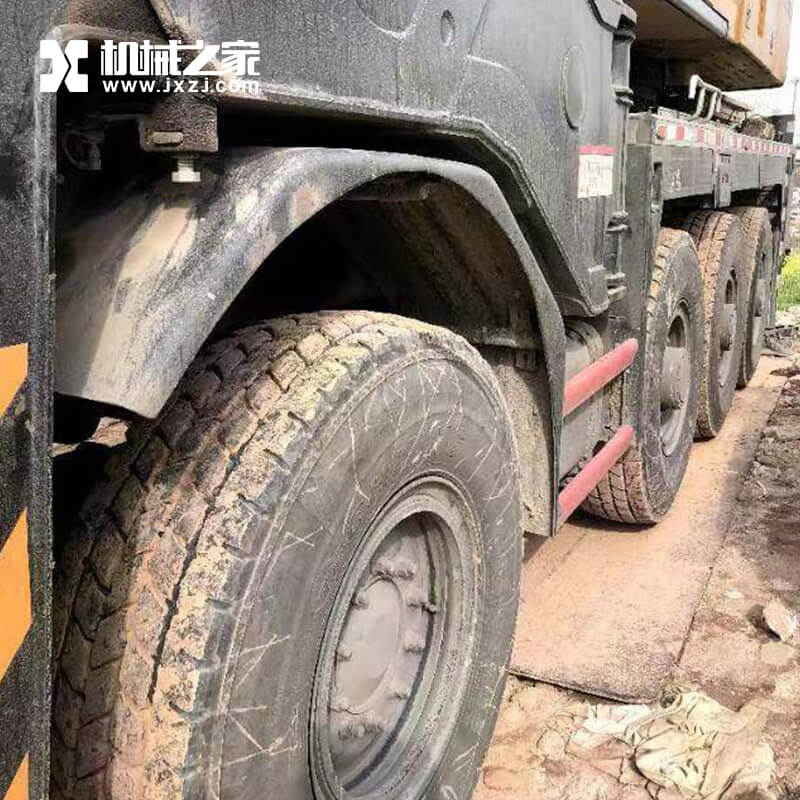

Compact body design, the length of the whole vehicle is 1.25m shorter than that of products of the same tonnage in the industry, 5-axle chassis, 4-axle steering, 9.8m turning radius, more flexible transitions, and more suitable for construction in narrow sites such as factories and cities. Equipped with 385 95R25 all-road tires for better off-road performance.


Heavy-duty high-strength frame

The use of rectangular frame section greatly improves the bending and torsion resistance of the frame;

Through more than 10,000 fatigue tests, the performance is more reliable.


Front swinging outrigger (two-stage retractable)

Optimize the transmission system, the output torque of the engine is directly transmitted to the drive axle through the transmission shaft, which greatly improves the transmission efficiency; it can work in 360°, and has a strong ability to work in front of it.



Using electric proportional control technology, closed double-turn system, the control performance is more stable and reliable;

luffing linear compensation and hoisting motor load detection to ensure that the luffing and hoisting speed are controllable and the action is more stable;

The fixed-point pin extension system is adopted to accurately locate the position of the oil cylinder and release the arm pin at a fixed point, which solves the problem of loud release sound of the arm pin, reduces the shock and vibration acceleration of the telescopic arm by 50%, and makes the operation more comfortable.



All-round safety protection system, the main and auxiliary winches are equipped with three-circle protectors and height limiters to prevent the wire rope from over-discharging and over-rolling, limit angle protection, and outrigger pressure protection;

Torque limiter: The highly intelligent torque limiter system is adopted to intelligently protect the hoisting operation in all directions, ensuring accurate, safe and reliable operation.



The deck board is tiled, and the transition space can be used more.


Product Parameters:

Speed parameter
Main hoist max. single rope speed 135m/min
Boom full extension/retraction time 500/550s
Boom full up/down time 60/150s
Max. rotation speed 1.8r/min
Weight parameter
Total weight of the whole machine 54990kg
Max. weight 40.2t
Overall length of the machine 14342mm
Overall width of the machine 3000mm
Overall heightof the machine 4000mm
Outrigger span (horizontal x vertical) 7.8x8m
Dynamic parameters
Engine model Dongkang ISZ480 51 (National V)
Engine max. power 353/1900kW/rpm
Engine max. output torque 2330/1200N·m/rpm
Traveling parameters
Top speed 85km/h
Min. turning radius 9.8m
Max. gradeability 45%
Approach angle 19°
Departure angle 16°
Min. ground clearance 325mm
