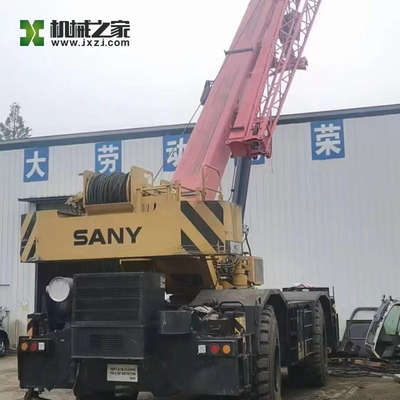

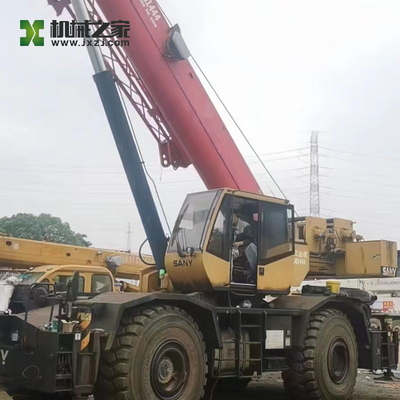

SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton

  • SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton
  • SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton
  • SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton
  • SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton
Place of Origin China
Brand Name SANY
Certification CE, ISO9001
Model Number SRC750
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 11.8 ～62.5M
Maximum Lifting Weight 75 Ton Jib 5 Section
Specification 14248×3340×3800mm  production Date 2012
Highlight

SANY Used All Terrain Crane

,

75 ton Used All Terrain Crane

,

SANY SRC750
Leave a Message
Product Description

Used Rough Terrain Crane SANY SRC750 Second Hand Rough Terrain Mobile Truck Crane



Production Details:



Model NO.



 SRC750 Boom Type Telescopic



Max. Rated Lifting Capacity



 750000 kg Max. Lifting Height of Jib 44.5m



Max Gradeability



 40% Working hours 30000h



Transport Package



 Compliant with export packaging requirements Specification 14248mm×3340mm×3800mm



Trademark



 SANY Place of Origin China



HS Code



   Supply Capacity 1 Units Per Month



  • Innovative design: using PROE, finite element analysis, simulation analysis and other high-tech software to optimize the design, maximize the use of material mechanical properties, light weight and higher mobility;
  • Using a powerful engine, the rated power is 210kw at 2500rpm, and the torque is 970N.m at 1500rpm. meet higher emission requirements;
  • The main boom is made of high-strength steel plate, 5-section U-shaped boom design, with better rigidity and strength, and more stable lifting performance;
  • Equipped with a torque limiter with an all-round intelligent protection system, the accuracy is within 10%;
  • Full hydraulic power steering, with 4 steering modes, good maneuverability;
  • Comprehensive logic and interlock control for safer and more reliable operation.



Product Parameters:

Dimensions

Overall length: 14248mm

Overall width: 3340mm

Overall height: 3800mm
Dynamic parameters

Engine rated power: 210/2500kw/rpm

Engine rated torque: 970/1500N.m/rpm
Traveling parameters

Max. driving speed: 40Km/h

Min. turning radius (2 wheels/4 wheels): 12.5/7.5m

Max. grade: 75%

Fuel consumption per 100 kilometers: 65L
Performance parameters

Max. lifting moment: basic boom: 2529kN.m

Max. lifting moment: the longest main boom: 1232kN.m

Lifting height: basic boom: 11.8m

Lifting height: Longest main boom: 44.5m

Lifting height: the longest main boom + jib: 62.5m

Boom Length: Basic Boom: 11.8m

Boom length: the longest main boom: 45m

Boom length: the longest main boom + jib: 61m
Working speeds

Main hoist single rope max. lifting speed (no load): 125m/min

Boom full extension/retraction time: 120/130s

Boom up/down time: 70/100s

Max. rotation speed: 2r/min

Horizontal outrigger full extension/retraction time: 20/25s

Vertical outrigger fully retracted/retracted time: 25/35s


SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton 0
SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton 1SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton 2SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton 3
