Sany SAC2600T8 Second Hand Truck Cranes 260 Ton

Place of Origin China
Brand Name Sany
Certification CE,ISO9001
Model Number SAC2600T8
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Maximum Lifting Height 12.3m~125m
Maximum Lifting Weight 260 Ton Axle Number 5
Jib 2 Section  production Date 2021
High Light

Sany Second Hand Truck Cranes


260 Ton Second Hand Truck Cranes



Leave a Message
Product Description

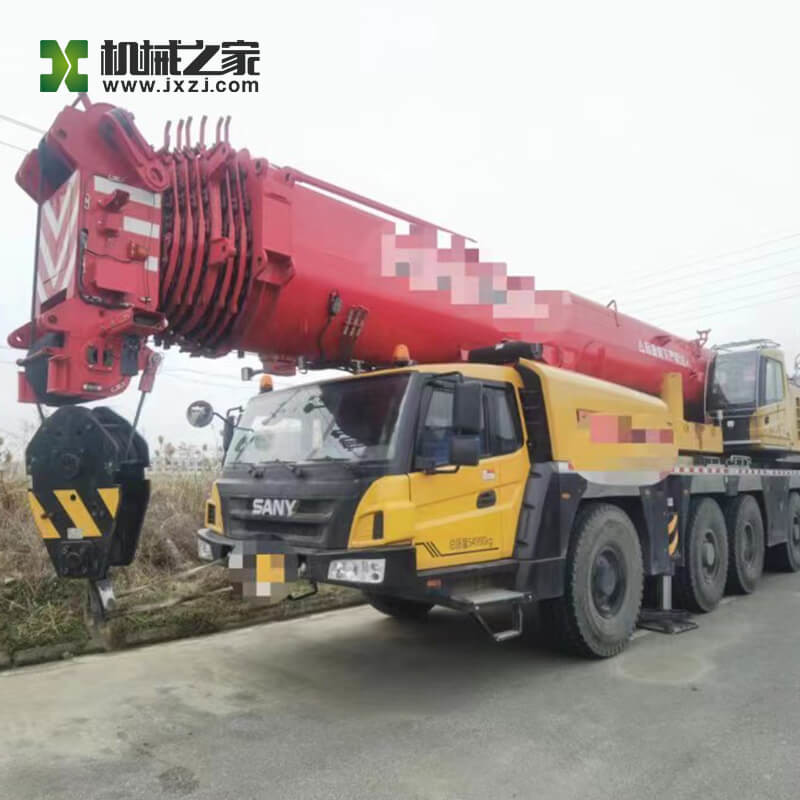

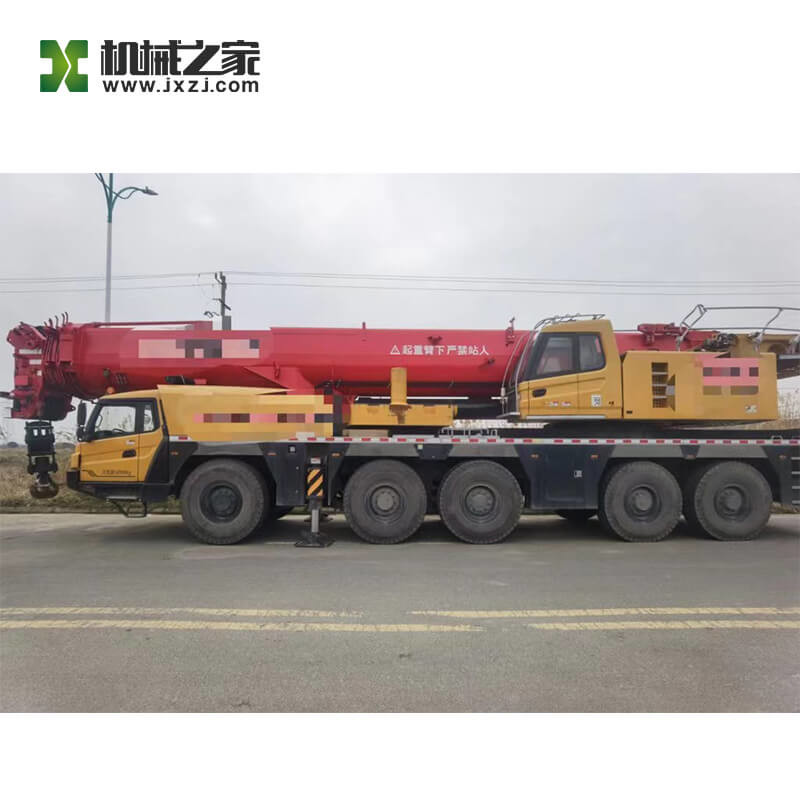

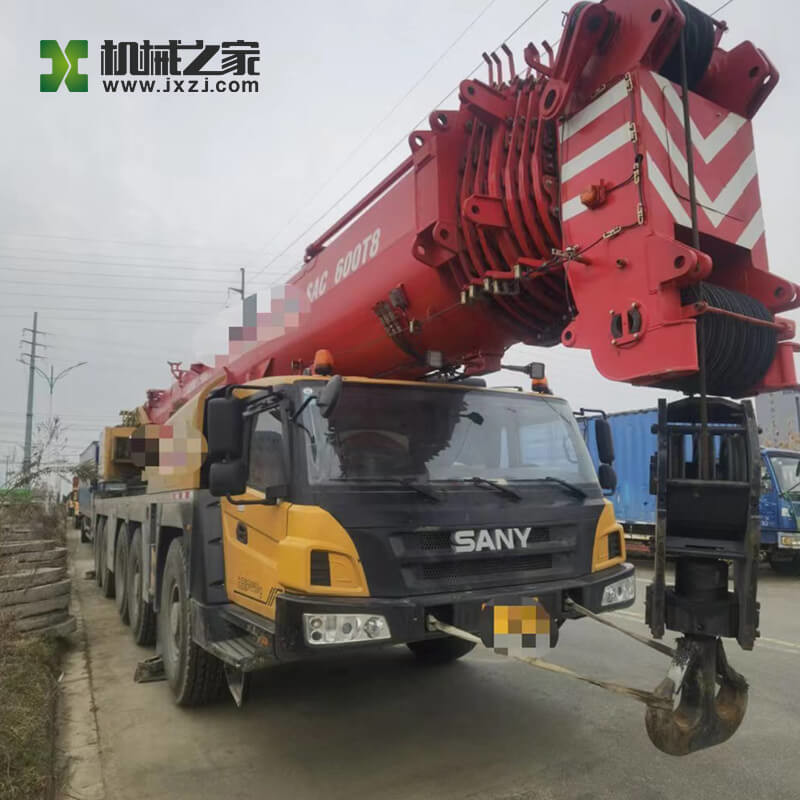

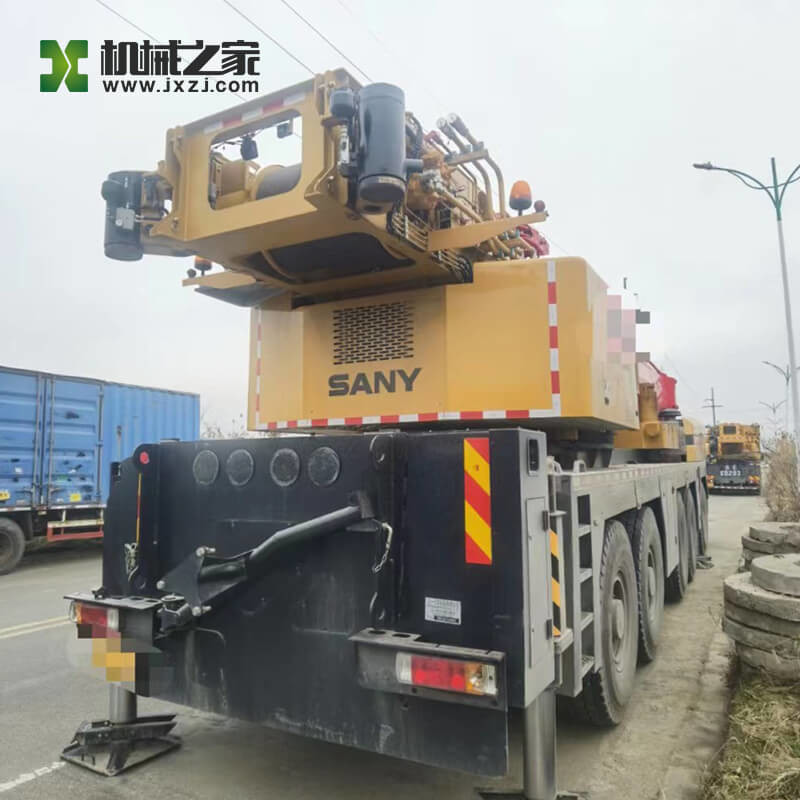

Used Truck Crane Sany SAC2600T8 Second Hand Truck Mobile Crane


Production Details:


Model NO.



Boom Type Telescopic


Max. Rated Lifting Capacity


260000 kg Max. Lifting Height of Jib 81M


Max Gradeability


58% Working Diameter 20m


Transport Package


Complies with Min. export packaging requirements Specification



Driving mileage


450000m Working hours 4000h




Sany Place of Origin China


HS Code


  Supply Capacity 10 Units Per Month


  • 50m upgraded jib, the lifting height exceeds 300 tons
  • SAC2600T8 main boom is 81m long, jib length is 36m, the standard jib is over-lifting condition, the longest main jib is 120m (main boom 80m+4m extension boom+36m jib), jib is 0°, maximum rated lifting capacity 2.7t.
  • It can also be equipped with a 50m upgraded jib, the longest jib is 125m, and the jib length exceeds 300 tons.
  • 50m full-truss jib, upgraded large-section jib, strong lifting performance.
  • The longest main jib is 125m (main jib 75.6m+7m×3 extension jib+29m jib), the jib is 0°, the maximum rated lifting capacity is 3.6t; the 20° variable angle, the maximum rated lifting capacity is 2.5t.
  • The main jib is 114m (the main jib is 71.3m+43m jib), the jib is 0°, and the maximum rated lifting capacity is 6t.
  • Flexible and adaptable to the venue
  • Not only can it be lifted high, but the SAC2600T8 is also flexible. Two turning radii, combined with the ability to move the counterweight forward, the minimum turning radius can reach 4865mm, even if it is a vertical cone, it can easily adapt. The maximum counterweight displacement is 500mm, and the same working condition is 10t less counterweight than the same ton product, and the operating cost is lower.
  • There are also three rows of rollers with large raceway diameter slewing support with double slewing, and H-type outriggers with a maximum span of 8.3mx9.47m, which makes the lifting more stable.
  • With counterweight super-starting transition, the efficiency is doubled
  • SAC2600T8 can drive with 24t counterweight and super-lift, and can carry a maximum of 67t counterweight for transition. In short-distance displacement, it can quickly get into position without removing the counterweight and superlifting, which is one step faster than others, which is an incomparable advantage.
  • SAC2600T8 occupies the top spot in the field of urban scattered activities. It has excellent lifting ability, and various tasks are easily accomplished. In addition, it has excellent site adaptability, and heavy-load transitions are not messy. Invincible in China.


Product Parameters:

Performance parameters
Max. load moment 7644kN·m
Max. lifting capacity 260t
Traveling parameters
Max. traveling speed 80km/h
Min. turning radius 10m
Max. gradeability 58%
Speed parameter
Main hoist Max. single rope speed 125m/min
Boom full extension/contraction time 750/750s
Boom full up/down time 65/115s
Max. rotation speed 1.5r/min
Size parameters
Overall length of the machine 15880mm
Overall widthof the machine 3000mm
Overall heightof the machine 4000mm
Outrigger span (horizontal x vertical) 9.47X8.3m
Weight parameter
The total mass of the whole machine 54990kg
Max. weight 90t
Dynamic parameters
Engine model WP13.550E62
Engine Max. power 405/1900kW/rpm
Engine Max. output torque 2500/950-1400N·m/rpm
