Zoomlion RT550-3 Second Hand Truck Cranes 55 Ton 24m

Place of Origin China
Brand Name Zoomlion
Certification CE, ISO9001
Model Number RT550-3
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Maximum Lifting Height 34.8 -52.4m
Maximum Lifting Weight 55ton Axle Number 4
Jib 2 Section  production Date 2018
High Light

RT550-3Second Hand Truck Cranes


24m Second Hand Truck Cranes


zoomlion crane 55 ton

Leave a Message
Product Description

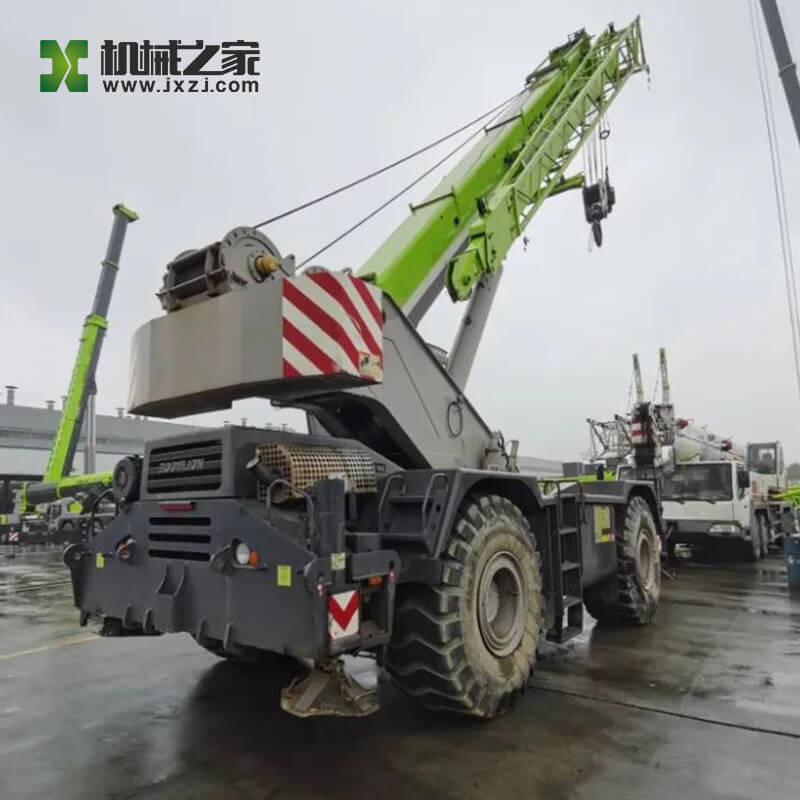

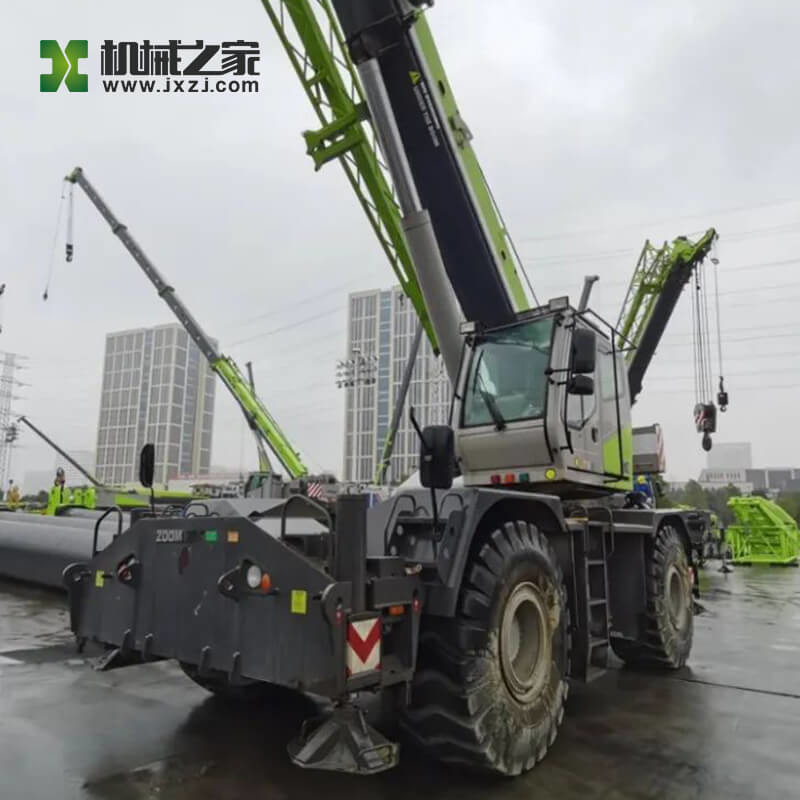

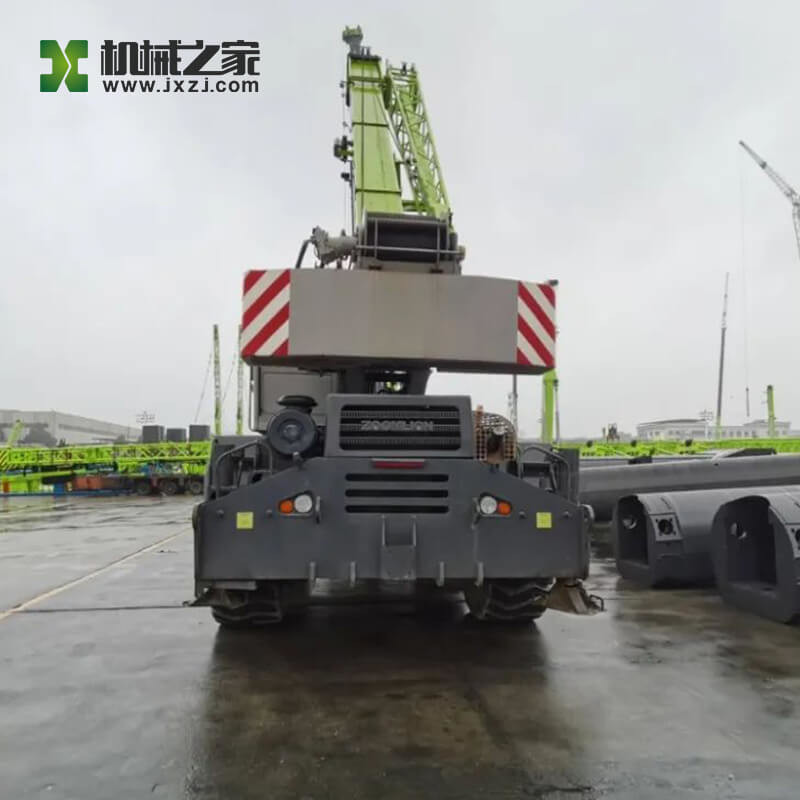

Used Zoomlion Truck Crane Zoomlion RT550-3 Second Hand Truck Mobile Crane


Production Details:


Model No.


RT550-3 Boom Type Telescopic


Max. Rated Lifting Capacity


550000 kg Max. Lifting Height of Jib 34.86m


Max Gradeability


40% Working Diameter 24m


Transport Package


Complies with Min. export packaging requirements Specification 13100×3300×3750MM


Driving Mileage


28300M Working hours 3420h




Zoomlion Place of Origin China


HS Code


  Supply Capacity 10 Units/ Month


RT550-3 off-road tire crane is equipped with 4*4 four-wheel drive and four-wheel steering chassis. It adopts full hydraulic power steering system with three steering control modes: two-wheel steering, four-wheel steering and crab walking, and has the ability to turn on the spot. The vehicle has a short wheelbase and a small turning radius, providing unparalleled maneuverability in tight spaces.


RT550-3 off-road tire crane has a maximum rated gross lifting weight of 55T (when the lifting amplitude is 3m), the maximum lifting height is about 34.8m; the maximum driving speed is 39km/h, and it has the characteristics of off-road driving and lifting with load; the whole The overall dimensions of the car are 13100×3300×3800mm, and the total weight is 41.5T.


In December 2010, RT55 won the "Furong Cup" International Industrial Design Innovation Competition Enterprise Innovation Award, and passed the North American ANSI certification carried out by the most authoritative TuV company in the world. This is the first time that a domestic wheeled crane has obtained this type of certification.


Product Parameters:

Specification Item Unit Value

Working performance



Max. rated total lifting weight × working range kg.m 55000×3.0
Max. lifting moment of the basic boom kN.m 1967
Max. lifting moment of the longest main boom kN.m 1126
Max. lifting height of the longest main boom m 34.8
Max. lifting height of jib m 52.4





Dimensions (L×W×H) mm 13100×3300×3750
Outrigger span (vertical x horizontal) mm 6900×6900
Main boom arm length (full retraction~full extension) mm 10800~34000
Jib length (full retraction to full extension) mm 10000~17000
Main boom elevation ° -3~78
Swing range   360° continuous

Working speeds

Main hoist single rope max. speed m/min 150
Boom extension time s 100
Boom retraction time s 80
Boom boom time s 56
Boom drop time s 63
Swing speed r/min 0~2.5
Hydraulic system Fixed work stress MPa 27
Rated working flow L/min 400
Hydraulic tank capacity L 700
Weights Vehicle curb weight kg 39200
Front axle load kg 20440
Rear axle load kg 18760
Traveling parameters Max. travel speed (forward/reverse) km/h 39/15
Axle distance mm 3950
Wheelbase (front/rear) mm 2605
Max. gradeability % 110
Zoomlion RT550-3 Second Hand Truck Cranes 55 Ton 24m 0Zoomlion RT550-3 Second Hand Truck Cranes 55 Ton 24m 1Zoomlion RT550-3 Second Hand Truck Cranes 55 Ton 24m 2
