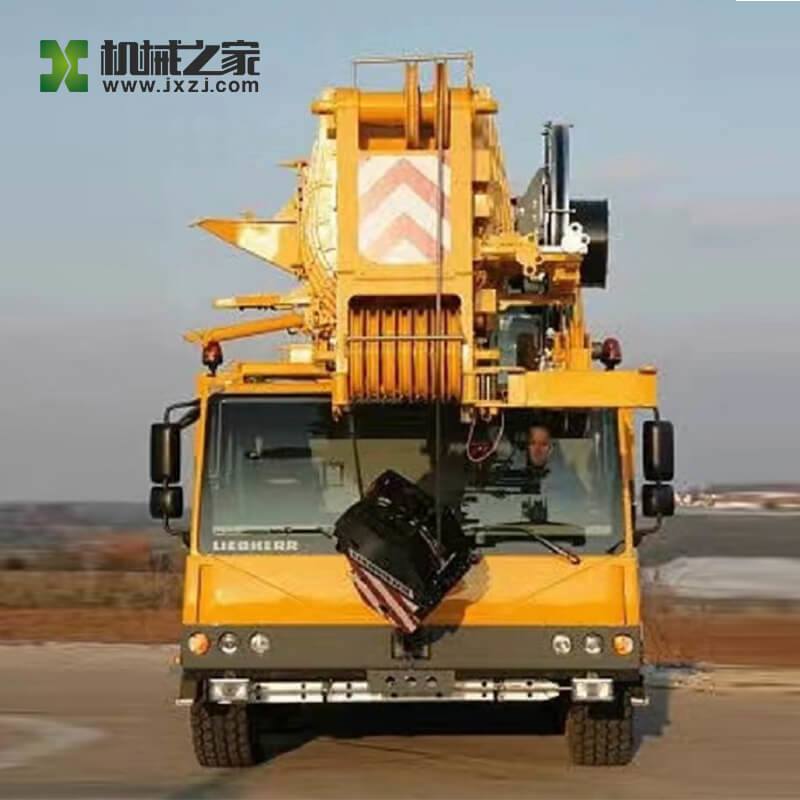

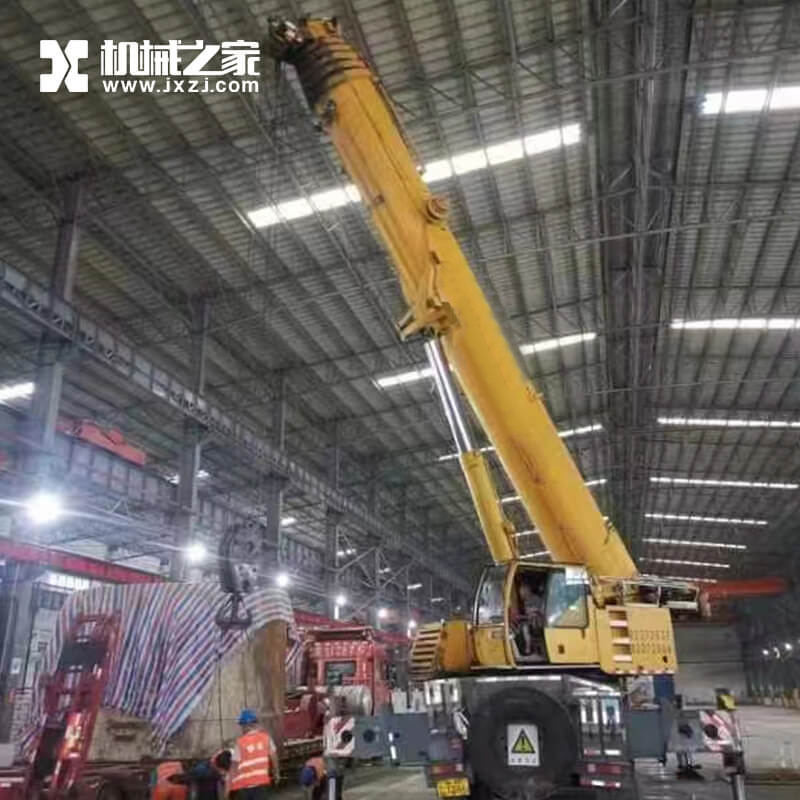

LTM1160 Used Liebherr Truck Crane 160 Ton Second Hand Crane
| Place of Origin | China |
|---|---|
| Brand Name | Liebherr |
| Certification | CE , ISO9001 |
| Model Number | LTM1160 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Bulk |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | Used | Maximum Lifting Height | 13 -62m |
|---|---|---|---|
| Maximum Lifting Weight | 160 Ton | Axle Number | 6 |
| Jib | 2 Section | production Date | 2012 |
| High Light | LTM1160 Used Liebherr Truck Crane,62m Used Liebherr Truck Crane,160 Ton Second Hand Crane |
||
Product Description
Used Liebherr Truck Crane Liebherr LTM1160 Ton Second Hand Crane
Production Details:
|
Model NO.
|
LTM1160 |
Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
160000 kg | Max. Lifting Height of Jib | 62m |
|
Max. Gradeability
|
40% | Turning Diameter | 24m |
|
Transport Package
|
Compliant with export packaging requirements | Specification |
19420*3000*4000mm |
|
Drive Mileage
|
5000kms | Working hours | 10000h |
|
Trademark
|
Liebherr | Origin | Germany |
The LTM1160-5.1 is an improved version of the quite successful LTM1150-5.1 all-terrain crane, and its telescopic boom length and lifting capacity have been significantly improved. The structure of LTM1160-5.1 is quite compact, and it is the smallest model among the 160-ton cranes. Another technological innovation is the pneumatic disc brake system for cranes, pioneered by Liebherr, which significantly improves braking performance and allows the crane to maintain good lateral stability when braking.
Product Parameters:
|
General parameters
|
|||||
| Device model | LTM 1160-5.1 | QAY1200 | SAC6000 | QAY500 | QAY800 |
| Model abbreviation | 1160 | 1200 | 6000 | 500 | 800 |
| Engine | |||||
| Model | Liebherr, 4-cylinder, turbo diesel engine |
OM460LA.E3A/5 (OM502LA.E3A/1) |
Benz OM 906 LA | OM906LA | OM502LA.E3A/1 |
| Rated power(kW/r/min) | 145 | 260/1800(480/1800) | 205/2200 | 205/2100 | OM502LA.E3A/1 |
| Rated torque(N·m/r/min) | 1750/1300(2800/1100) | 1100/1400 | 1110/1200～1600 | 2800/1300 | |
|
Quality parameters
|
|||||
| Vehicle curb weight (kg) | 96000 | ||||
| Driving state self-weight (total mass) (kg) | 60000 | 95000 | 96000 | 96000 | 93900 |
| Axle load per bridge(kg) |
10800×3+11170+10870 +10650+9970×3 |
8×12000 | 12000×8 | 12000×5+11300×3 | |
|
Working parameters
|
|||||
| Max. rated gross lifting weight(kg) | 160000 | 1200000 | 600000 | 500000 | 800000 |
| Outrigger span (vertical × horizontal)(m) | 13(13.045)×13(9.846) | 10.8X10.8 | 10.125×9.6(6.5) | 12.8(10.7)×13(9.8) | |
| Basic boom length (m) | 20 | 16.1 | 16.8 | ||
| Max. lifting moment of basic arm (kN·m) | 35280 | 18228 | 15190 | 24000 | |
| Max. lifting height of basic boom(m) | 20 | 136 | 17.5 | 18.4 | |
| Longest main boom (m) | 105 | 84 | 84 | ||
| The longest main arm + jib (m) | 117 | 56/91 (optional) | |||
| Max. lifting moment of the longest main boom (kN·m) | 3600 | ||||
| Max. lifting height of main boom (m) | 105 | 84.2 | 85.8 | ||
| Max. lifting height of jib (m) | 39.8 | 19.5 | |||
|
Working speed
|
|||||
| Max. speed of the main hoist single rope (m/min) | 126(no load) | 130 | 170(the outermost working layer) | 110(the outermost working layer) | |
| Auxiliary hoist single rope Max. speed (m/min) | 104(no load) | 130 | 170(the outermost working layer) | 110(the outermost working layer) | |
| Boom raising/lowering time (s) | 200 | 110/110 | 125 | 115 | |
| Boom full extension/full retraction time (s) | 2200/2000 | 1100/1100 | 960/900 | 1200/1100 | |
| Horizontal outrigger extension/retraction time (s) | 60/40 | 35 | |||
| Vertical outrigger extension/retraction time (s) | 60/45 | 75 | |||
| Rotation speed (r/min) | 0.85 | 0.9 | 0.8 | 0.6 | |
|
Traveling parameters
|
|||||
| Max. travel speed (km/h) | 80 | 75 | 75 | 80 | 75 |
| Max. grade (%) | 40(95t) | 37.4 | 35(96t) | 40 | |
| Approach angle (°) | 12 | 12 | 13 | 12 | |
| Departure angle (°) | 28 | 18 | 15 | 28 | |
| Min. turning diameter (m) | 30 | 29 | 30 | 29 | |
| Min. ground clearance (mm) | 278 | 330 | 280 | ||
| Braking distance (m) | ≤10 | ≤10 | ≤10 | ≤10 | |
| Fuel consumption/100 kms (L) | 110 | 105 | 110 | ||
|
Machine parameters
|
|||||
|
Dimensions (L×W×H) (mm) |
20490*3000*4000 | 22745X3000X4000 | 20900×3000×4000 | 19420*3000*4000 | |
| Longitudinal distance of outriggers (m) | 13(13.045) | 10.8 | 10.125 | 12.8(10.7) | |
| Outrigger lateral distance (m) | 13(9.846) | 10.8 | 9.6(6.5) | 13(9.8) | |
| Main boom length (m) | 90 | 84 | |||
| Main boom elevation angle (°) | 83 | ||||
| Jib length (m) | 6－42 | 98 | |||
| Jib installation angle (°) | |||||
| Wheelbase (m) |
1500+2170+1500+1630 +1500+3730+3260+1500 |
1650+1650+2900+1650 +1650+2350+1650 |
1480+2100+1480+ 1480+3910+3050+1480 |
||
| Tire distance (m) | 2590 | 2540 | 2590 | ||
| Gradeability (%) | 40(95t) | 37.4 | 35(96t) | 40 | |
| Ground specific pressure (Kpa) | |||||
|
Chassis
|
|||||
| Model | Benz | Benz | |||
| Type | |||||
| Engine model |
Liebherr, 6-cylinder, turbo diesel engine |
OM502LA.E3A/1 | Benz OM 502 LA | OM502LA.E3A/1 | OM460LA.E3A |
| Engine rated power (kW/r/min) | 370 | 480/1800 | 480/1800 | 480/1800 | 260/1800 |
| Max. engine output torque (N·m/r/min) | 2800/1100 | 3000/1300 | 2800/1300 | 1750/1300 |
