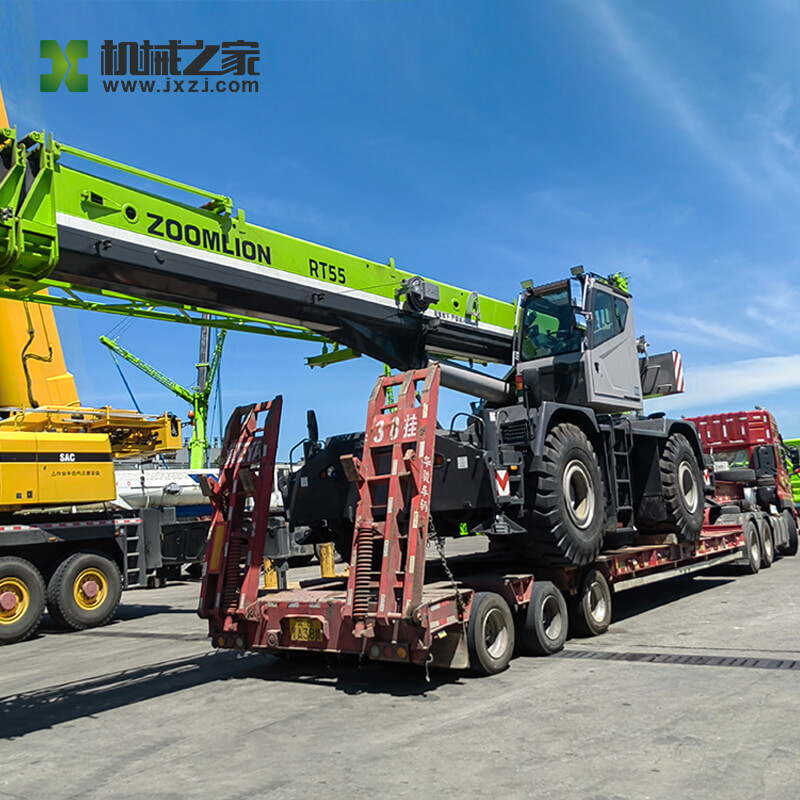

Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane

  • Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane
  • Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane
  • Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane
  • Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane
Place of Origin China
Brand Name Zoomlion
Certification CE, ISO9001
Model Number RT55-1
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 34.8 -52.4m
Maximum Lifting Weight 55ton Axle Number 4
Jib 2 Section  production Date 2018
Highlight

24m Second Hand Truck Cranes

,

55ton Second Hand Truck Cranes

,

Zoomlion RT55
Leave a Message
Product Description

Used Zoomlion Truck Crane Zoomlion RT55-1 Second Hand Truck Mobile Crane



Production Details:



Model No.



 RT55-1 Boom Type Telescopic



Max. Rated Lifting Capacity



 550000 kg Max. Lifting Height of Jib 34.86m



Max Gradeability



 40% Working Diameter 24m



Transport Package



 Complies with Min. export packaging requirements Specification 13100×3300×3750MM



Driving Mileage



 28300M Working hours 3420h



Trademark



 Zoomlion Place of Origin China



HS Code



   Supply Capacity 10 Units/ Month





The RT550-1 off-road tire crane is equipped with a 4*4 four-wheel drive and four-wheel steering chassis. It adopts full hydraulic power steering system with three steering control modes: two-wheel steering, four-wheel steering and crab walking, and has the ability to turn on the spot. The vehicle has a short wheelbase and a small turning radius, providing unparalleled maneuverability in tight spaces.



RT550-1 off-road tire crane has a Max. rated total lifting weight of 55T (when the lifting amplitude is 3m), the Max. lifting height is about 34.8m; the Max. driving speed is 39km/h, and it has the characteristics of off-road driving and lifting with load; the whole The overall dimensions of the car are 13100×3300×3800mm, and the total weight is 41.5T.



In December 2010, RT55 won the "Furong Cup" International Industrial Design Innovation Competition Enterprise Innovation Award, and passed the North American ANSI certification carried out by the most authoritative TuV company in the world. This is the first time that a domestic wheeled crane has obtained this type of certification.



Product Parameters:

Category Item Unit Value

Working performance



 Max. rated total lifting weight × working range kg.m 55000×3.0
Max. lifting moment of the basic boom kN.m 1967
Max. lifting moment of the longest main boom kN.m 1126
Max. lifting height of the longest main boom m 34.8
Max. lifting height of jib m 52.4

Dimensions







 Dimensions (L×W×H) mm 13100×3300×3750
Outrigger span (vertical x horizontal) mm 6900×6900
Main boom arm length (full retraction～full extension) mm 10800～34000
Jib length (full retraction to full extension) mm 10000～17000
Main boom elevation ° -3～78
Swing range   360° continuous

Working speeds







 Main hoist single rope Max. speed m/min 150
Boom extension time s 100
Boom retraction time s 80
Boom derricking up time s 56
Boom telescoping out time s 63
Swing speed r/min 0～2.5
Hydraulic system Fixed work stress MPa 27
Rated working flow L/min 400
Hydraulic tank capacity L 700
Weights Vehicle curb weight kg 39200
Front axle load kg 20440
Rear axle load kg 18760

Traveling parameters



 Max. travel speed (forward/reverse) km/h 39/15
Axle distance mm 3950
Wheelbase (front/rear) mm 2605
Max. gradeability % 110
Category Main project

Main configuration

(high version)
Power system Engine model   U.S.A. CumminsQSB6.7
Engine rated power KW/r/min 160KW
Engine torque N.m/r/min 888N.m
Transmission system Transmission drive type   4×4
Transmission model or brand   DANA (USA)
Transmission gear   first six last six

Traveling system





 Suspension method   Rigid (front)/flexible (rear)
Bridge model or brand   KESSLER (Germany)
Steering type   Two Wheels / Four Wheels / Crab Walk
Tire specifications   26.5-25 32PR
Number of tires Pcs 4

Hydraulic system





 Main valve model or brand   AMCA (Netherlands)
Gear pump   PERMCO (USA)
Balance valve/hydraulic lock   HYDRO CONTROL/OIL CONTROL
Rotary motor   Guizhou Power Source (China)
Cylinder seals   PARKER (USA)

Electrical System







 Torque limiter   Greer (USA)
Controller   EPEC (Finland)
Electronic accelerator pedal assembly   Williams Controls
Bus cable   Lapp, Germany
Battery   VARTA
All lamps and switches etc.   HELLA (France)
Emission     American TⅢ



Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane 0Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane 1Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane 2Zoomlion Second Hand Truck Cranes Zoomlion RT55-1 Used Truck Mobile Crane 3
