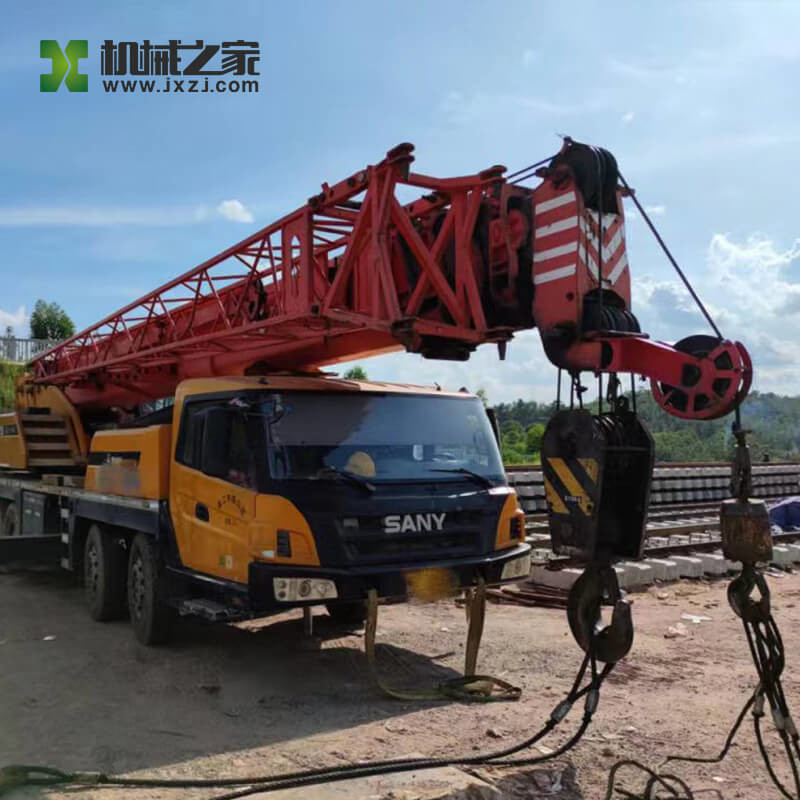

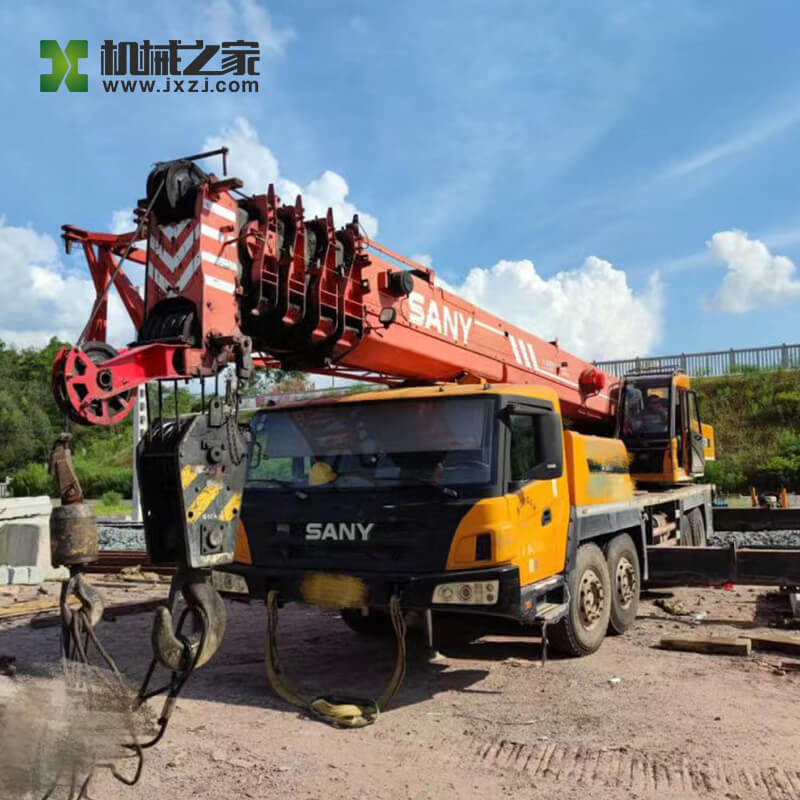

50ton 58.5m Used Truck Crane Sany QY50C Second Hand Truck Mobile Crane

  • 50ton 58.5m Used Truck Crane Sany QY50C Second Hand Truck Mobile Crane
  • 50ton 58.5m Used Truck Crane Sany QY50C Second Hand Truck Mobile Crane
  • 50ton 58.5m Used Truck Crane Sany QY50C Second Hand Truck Mobile Crane
  • 50ton 58.5m Used Truck Crane Sany QY50C Second Hand Truck Mobile Crane
Place of Origin China
Brand Name Sany
Certification CE,ISO9001
Model Number QY50C
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 12 - 58.5m
Maximum Lifting Weight 50ton Axle Number 4
Jib 2 Section  production Date 2012
High Light

58.5m Used Truck Crane

,

50ton Used Truck Crane

,

Sany QY50C
Leave a Message
Product Description

Used Truck Crane Sany QY50C Second Hand Truck Mobile Crane



Production Details:



Model NO.



QY50C

 Boom Type Telescopic



Max. Rated Lifting Capacity



 50000 kg Max. Lifting Height of Jib 42.8M



Max Gradeability



 35% Working Diameter 29m



Transport Package



 Complies with Min. export packaging requirements Specification

13750×2750×3650M



Driving mileage

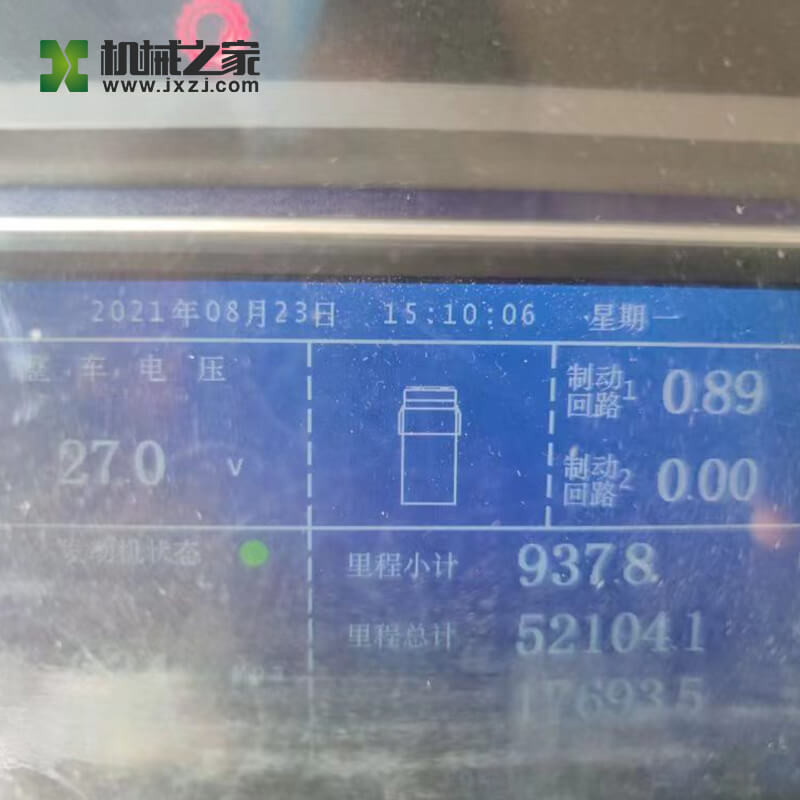

 52104m Working hours 8000h



Trademark



 Sany Place of Origin China



HS Code



   Supply Capacity 10 Units Per Month



  • The maximum rated lifting capacity is 55T, and the minimum working range is 3.0m.
  • he full extension of the main boom is 42.5m, and the maximum lifting height is 42.8m. The boom is made of high-strength structural steel and has a large arc hexagonal section.
  • The two rooms have been carefully designed and beautiful in shape, using advanced molding and electrophoresis technology, and all English red star painting.
  • Euro III emission engine, pilot control or hand lever control on the vehicle.
  • Adopt the load sensing and constant power control hydraulic system independently developed by SANY to reduce system energy consumption.
  • Adopt SANY's self-developed special controller for construction machinery with intellectual property rights, built-in the world's top PHILIPS 32-bit CPU, precise control and high reliability. Comprehensive lifting moment protection, height limit and alarm functions provide reliable safety protection for operations.
  • The main hydraulic components such as hydraulic pumps, motors and valves are from international famous brands such as American Parker and Rexroth. True color LCD display, built-in Japanese original SHARP high-definition display, Danish DANFOSS piezoresistive pressure sensor and American SUNS height limiter.



Product Parameters:

Parameter name Parameter content
Machine type
Truck crane tonnage level heavy
Performance parameters
Turntable tail turning radius (mm) 4000
Working weight of the whole machine (kg) 42000
Max. rated lifting capacity (t) 50
Max. load moment basic boom (kN m) 1788.5
Max. load moment main boom (kN m) 840.8
Max. load moment main boom + Jib (kN m) 318
Lifting height main arm + jib (m) 58.8
Lifting height basic boom (m) 12
Lifting height main boom (m) 42.8
Boom length basic boom (m) 11.5
Boom length main boom (m) 42.5
Boom length main boom+jib (m) 58.5
Min. rated amplitude (m) 3
Front bearing load (kg) 16000
Rear bearing load (kg) 26000
Offset (°) 0,15,30
The max. speed of the main hoist single rope no-load (m/min) 130
Auxiliary winch single rope max. speed no-load (m/min) 130
Boom full extension/retraction time (s) 120/100
Boom full up/down time (s) 80/60
Rotation speed (rpm) 0-2.0
Horizontal outrigger full extension/retraction time (s) 38/20
Vertical outrigger fully retracted/released time (s) 35/15
Chassis
Driving speed (km/h) 76
Min. turning radius (mm) 12000
Min. turning radius of boom head (m) 14.5
Min. ground clearance (mm) 342
Approach angle (°) ≥18
Departure angle (°) ≥12
Braking distance (m) ≤10
Gradeability(%) 35
Fuel consumption per 100 kilometers (L) ≤45
Engine
Engine model ISLe310 30
Rated power KW (HP) 228
Rated speed (rpm) 2200
Max. torque (N m) 1200/1200-1400
Manufacturer Cummins
Overall size
Overall length (mm) 13750
Overall width (mm) 2750
Overall height (mm) 3650
Wheel base (mm) 2300
Tire distance (mm) 1450
