130 Ton Used Rough Terrain XCMG Truck Mounted Crane QAY130 Second Hand Crane

Place of Origin China
Brand Name XCMG
Certification CE , ISO9001
Model Number QAY130
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Maximum Lifting Height 13.8- 70m
Maximum Lifting Weight 130 Ton Axle Number 6
Jib 2 Section  production Date 2012
High Light

130 Ton XCMG Truck Mounted Crane


QAY130 XCMG Truck Mounted Crane


xcmg rough terrain crane

Leave a Message
Product Description

XCMG Used All-Terrain Truck Crane XCMG QAY130 Ton Second Hand Crane
Production Details:

Model NO.


Boom Type Telescopic

Max. Rated Lifting Capacity

130000 kg Max. Lifting Height of Jib 50m

Max Gradeability

50% Working Diameter 20m

Transport Package

Compliant with export packaging requirements Specification


Driving Mileage


Working hours



XCMG Place of Origin China

HS Code

  Supply Capacity 1 Units Per Month


  • XCMG QAY130 all-terrain crane adopts 5-axle all-terrain special chassis, H-type outrigger structure, large outrigger span, and superior lifting performance; mechanical, electrical and hydraulic integration of precise full-axle steering and braking technology, driving performance Superior use of mature "international" power combination, low cost of use;
  • Special chassis for five-axle all-terrain cranes, full-axle steering, two-, four- and five-axle drive, mechanical gearbox, manual operation.
  • Hydraulic transmission, pump-controlled open variable system, closely combined with electric proportional operating system, modular design, stable operation, greatly improving the control performance of the crane.
  • The control method of getting on the car is pilot electric proportional control, using PLC integrated intelligent control technology, CAN-BUS bus control network, in addition to conventional control functions, it also has system real-time monitoring, fault automatic diagnosis functions, good micro-movement, flexible and lightweight.

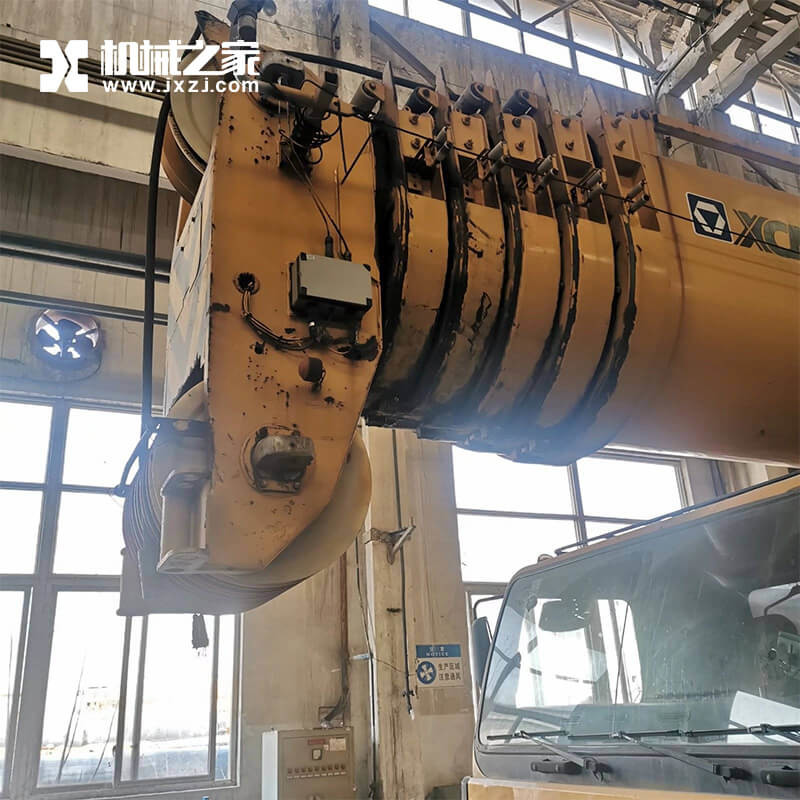

  • Five-section box-shaped telescopic boom, "U"-shaped section, high-strength steel plate, single telescopic oil cylinder automatically controls the telescopic mechanism, internal interlocking system, which can realize various boom lengths and strong lifting capacity.
  • Equipped with world-class technology and self-contained fault diagnosis function, automatic torque limiter, wire rope overwind and overrun, height limit, anemometer, outrigger pin device, hydraulic balance valve, hydraulic overflow valve, hydraulic two-way lock and level, as well as various The operation indication and alarm device under various working conditions make the operation safe and reliable.
  • The operating room is bright, spacious and comfortable, with adjustable seats and air conditioning. Equipped with safety glass, windows are equipped with sun blinds, sliding doors, the control room can be raised 20°, which increases the field of vision.
  • It is equipped with an imported progressive centralized lubrication system, which makes vehicle maintenance easier and more convenient.
  • With self-loading and unloading a variety of combination weights, easy to use.
  • This machine has a variety of optional accessories available for users, which can provide auxiliary boom, auxiliary lifting mechanism, single pulley device at the arm end, etc.

Product Parameters:

Item Unit Parameters
Parameter item   QAY130
Size parameter
Overall length of the whole machine mm 14730
Overall width of the whole machine mm 3000
Overall height of the whole machine mm 3990
Wheelbase mm 2650+1650+2500+1650
Tire distance mm 2590
Weight parameter
Total mass in driving state kg 58500
Axle load kg 11271×2+11986×3
Dynamic parameters

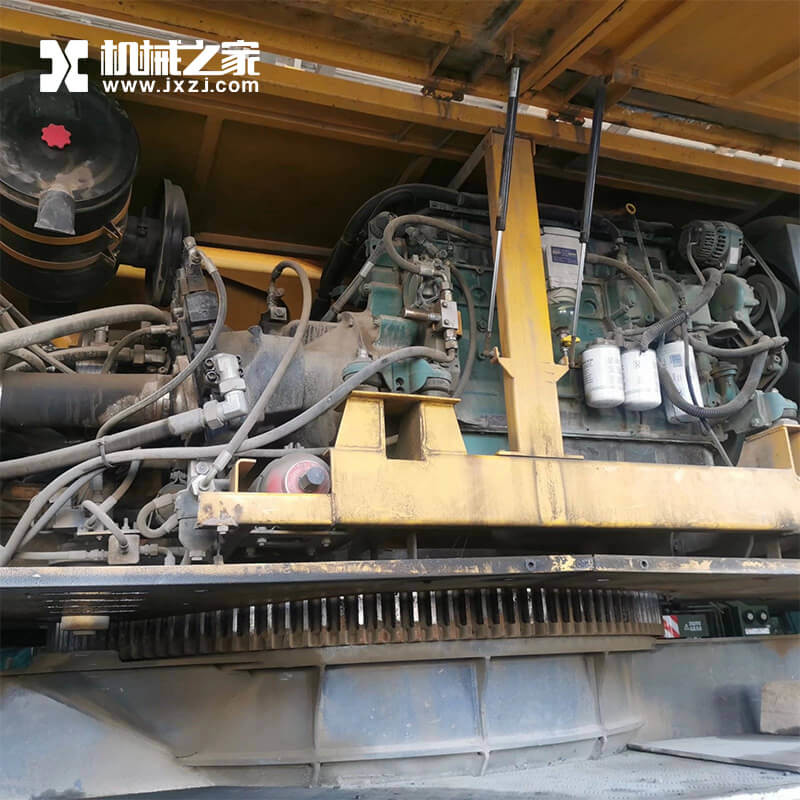

Engine model (operating cab)   TAD720VE/BF6M1013ECP
Engine rated power kw/(r/min) 162/2100/173/2100
Engine rated torque N.m/(r/min) 854/1400/906/1400
Engine model (driving cab)   ISME420 30
Engine rated power kw/(r/min) 306/1900
Engine rated torque N.m/(r/min) 2010/1200
Traveling parameters
Top speed km/h 80
Min. stable driving speed km/h 1.8
Min. turning diameter m 20
Boom head Min. turning diameter m 26
Max. grade 50
Min. ground clearance mm 280
Approach angle ° 16°
Departure angle ° 19°
Braking distance m ≤10
Fuel consumption per 100 km L 75.6
Main performance parameters
Max. gradeability (%) 50
Max. rated lfting capacity t 130
Min. rated amplitude m 3
Max. lifting moment of the basic boom kN·m 4439
Turntable tail turning radius mm 4470
vertical m 8.36
horizontal m 8.3(5.5)
Max. lift height
Basic boom m 12.8
Longest main boom m 50
Longest main boom + jib m 70
Boom length
Basic boom m 12.8
Longest main boom m 50
Longest main boom + jib m 70
The longest main boom + jib + extension m -
Working speed
Max. rotation speed r/min 2
Lifting speed
Main hoisting mechanism   94
Auxiliary lifting mechanism   94
Boom extension time
Full extension s 360
Full retraction   -
Amplitude time
Full boom lift s 60
Full boom drop s -
Outrigger retractable
put at the same time s 30
receive at the same time s 25
put at the same time s 40
receive at the same time s 35
