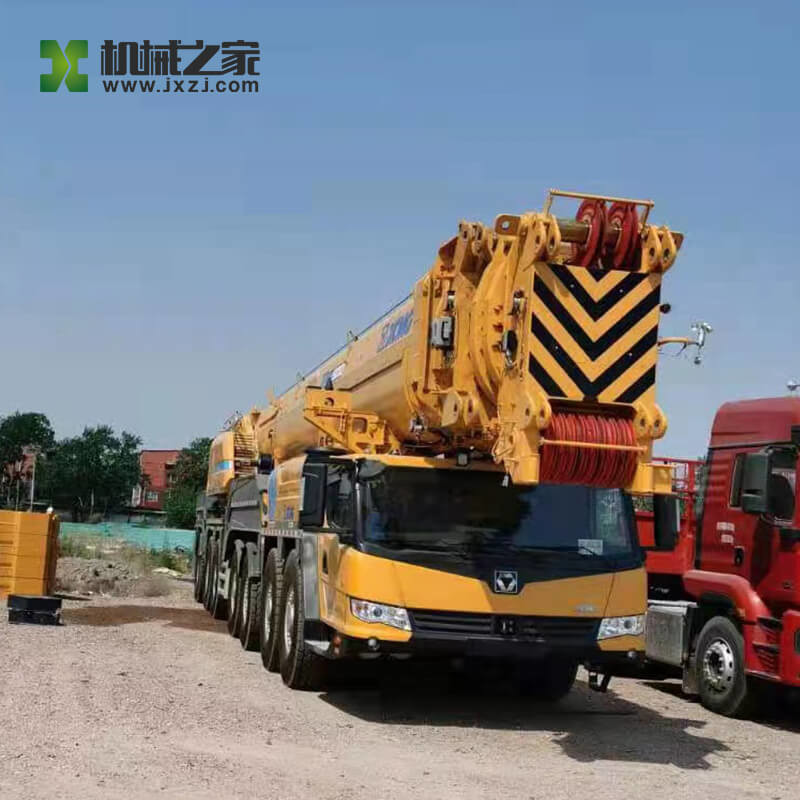

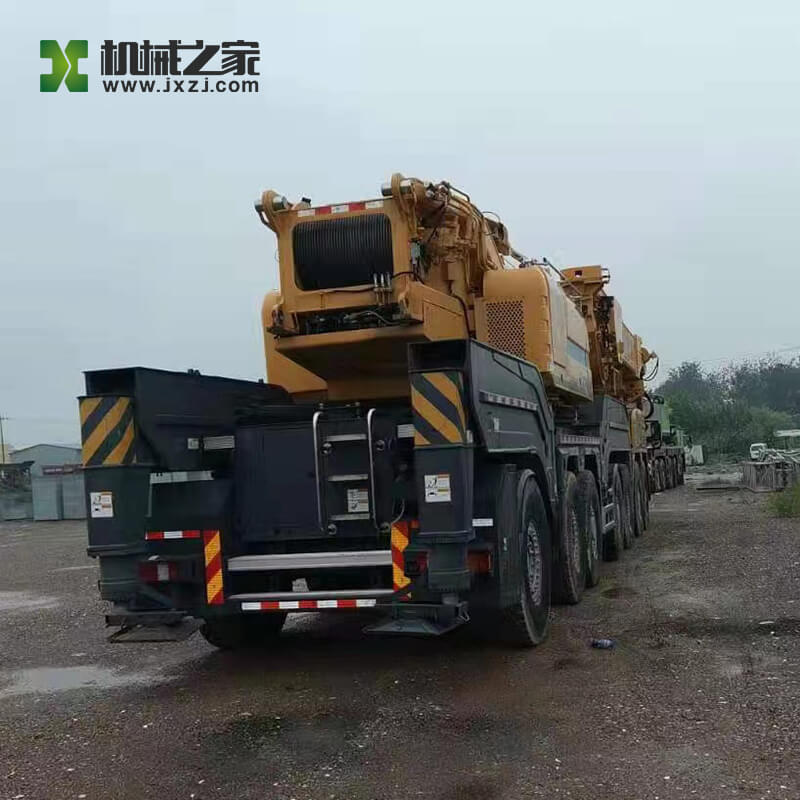

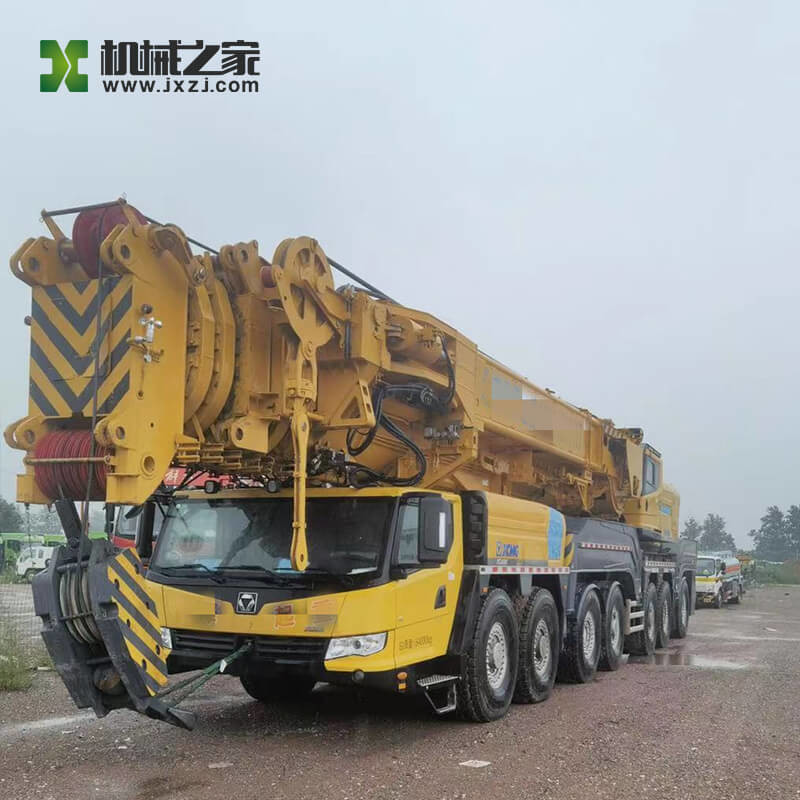

2021 Used All Terrain Cranes XCMG QAY500 500 Ton Truck Crane 91m
| Place of Origin | China |
|---|---|
| Brand Name | XCMG |
| Certification | CE, ISO9001 |
| Model Number | QAY500 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Bulk |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10PCS/M |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max. Lifting Weight | 500ton | Max. Lifting Height | 18- 91m |
|---|---|---|---|
| Axle No. | 8 | Jib | 2 Section |
| production Date | 2021 | Condition | Used |
| High Light | 91m Used All Terrain Cranes,QAY500 Used All Terrain Cranes,XCMG 500 Ton Truck Crane |
||
Product Description
2021 Used Truck Crane XCMG QAY500 Second Hand Truck Mobile Crane
Production Details:
|
Model No.
|
QAY500 |
Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
500000 kg | Max. Lifting Height of Jib | 84m |
|
Max Gradeability
|
35% | Working Diameter | 30m |
|
Transport Package
|
Complies with Min. export packaging requirements | Specification |
15918×3080×4000mm |
|
Driving Mileage
|
200000M | Working hours | 1200h |
|
Trademark
|
XCMG | Place of Origin | China |
|
HS Code
|
Supply Capacity | 10 Units/ Month |
- The QAY500 all-terrain crane is equipped with a new-generation large-space luxury cab that is enlarged and widened, and is equipped with a combined center console, all-digital display instruments, Grammer air suspension seats, and electrically adjustable rear-view mirrors. This product is an eight-axle chassis, six-axle steering, four-axle drive, and sufficient power.
- The 7-section elliptical section boom is equipped with a single-cylinder bolt telescopic mechanism.
- The full outrigger length is 84m. At the same time, this product has a variety of optional devices, such as a 63m fixed and extended jib, and a 95m luffing jib, which expands the operation of the crane. space, making installation projects with high working height requirements, such as wind power projects; improving the super-lifting device of the boom force, multiplying the length of the jib of the crane, increasing the lifting height by 712m, and improving the lifting performance by 1260%.
- The computer integrated control technology, through the application of the field bus technology, makes the energy-saving effect of the product very obvious, the fault diagnosis is highly intelligent, and the control is highly automated.
- This product is equipped with an auxiliary hoist specially used to install the wire rope of the large hook, and the disassembly of optional devices such as counterweight, luffing jib, etc., is completed by the machine itself, taking into account the convenience of installation and disassembly to the greatest extent.
Product Parameters:
| Item | Unit | Parameters |
| Parameters item | QAY500 | |
| Size parameters | ||
| Overall length of the whole machine | mm | 20900 |
| Overall width of the whole machine | mm | 3000 |
| Overall height of the whole machine | mm | 4000 |
| Wheelbase | mm |
1650+1650+2900+1650 +1650+2350+1650 |
| Tire distance | mm | 2540 |
| Weight parameters | ||
| Total mass in driving state | kg | 96000 |
| Axle load | kg | 12000×8 |
| Dynamic parameters | ||
| Engine model (Operating cab) | OM906LA | |
| Engine rated power | kw/(r/min) | 205/2100 |
| Engine rated torque | N.m/(r/min) | 1110/1200～1600 |
| Engine model (Driving cab) | OM502LA.E3A/1 | |
| Engine rated power | kw/(r/min) | 480/1800 |
| Engine rated torque | N.m/(r/min) | 2800/1300 |
| Traveling parameters | ||
| Traveling | ||
| Top speed | km/h | 80 |
| Min. stable driving speed | km/h | 2 |
| Turning | ||
| Min. turning diameter | m | 30 |
| Boom head Min. turning diameter | m | - |
| Max. grade | ％ | 35(96t) |
| Min. ground clearance | mm | 330 |
| Approach angle | ° | 13 |
| Departure angle | ° | 15 |
| Braking distance | m | ≤10 |
| Fuel consumption per 100 km | L | 105 |
| Main performance parameters | ||
| Max. gradeability | (％) | - |
| Max. Rated Gross Lifting Weight | t | 500 |
| Min. rated amplitude | m | 3 |
| Max. lifting moment of the basic boom | kN·m | 15190 |
| Turntable tail turning radius | mm | 6760 |
| Outrigger | ||
| Vertical | m | 10.125 |
| Horizontal | m | 9.6(6.5) |
| Max. lift height | ||
| Basic boom | m | 17.5 |
| Longest main boom | m | 84.2 |
| Longest main boom + jib | m | 124 |
| Boom length | ||
| Basic boom | m | 16.1 |
| Longest main boom | m | 84 |
| Longest main boom + jib | m | - |
| The longest main boom + jib + extension | m | 56/91(optional) |
| Working speed | ||
| Max. rotation speed | r/min | 0.8 |
| Lifting speed | ||
| Main hoisting mechanism | (m/min) | 170 (outermost working layer) |
| Auxiliary lifting mechanism | (m/min) | 170 (outermost working layer) |
| Luffing jib luffing winch | (m/min) | 65 (fourth floor) |
| Boom extension time | ||
| Full extension | s | 960 |
| Full retraction | 900 | |
| Amplitude time | ||
| Full boom lift | s | 125 |
| Full boom drop | s | - |
| Outrigger retractable | ||
| Horizontal | ||
| put at the same time | s | 60 |
| receive at the same time | s | 40 |
| Vertical | ||
| put at the same time | s | 60 |
| receive at the same time | s | 45 |
