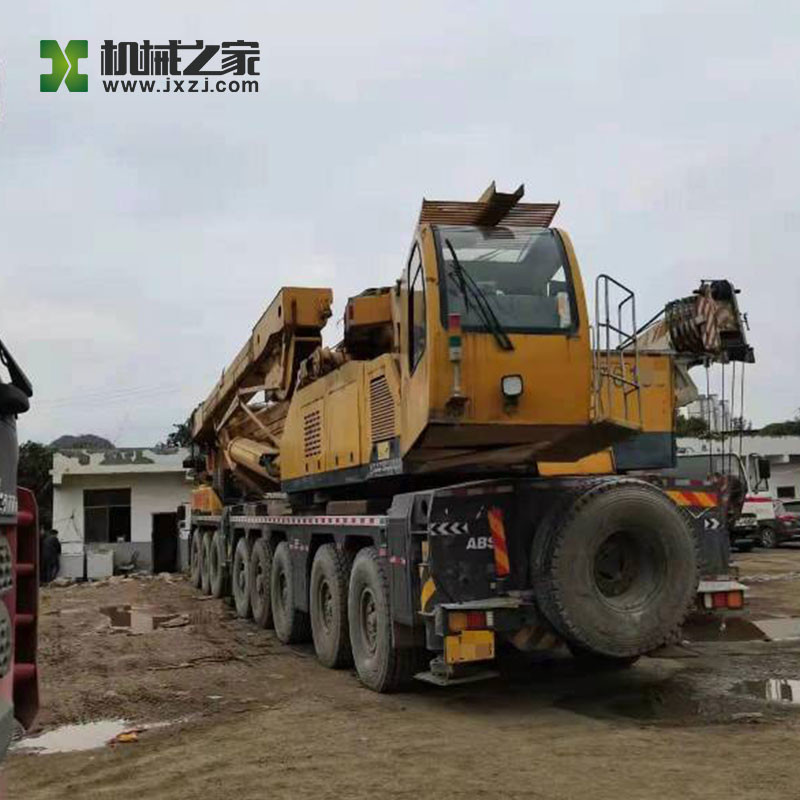

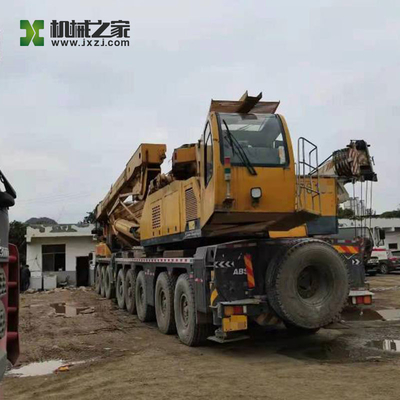

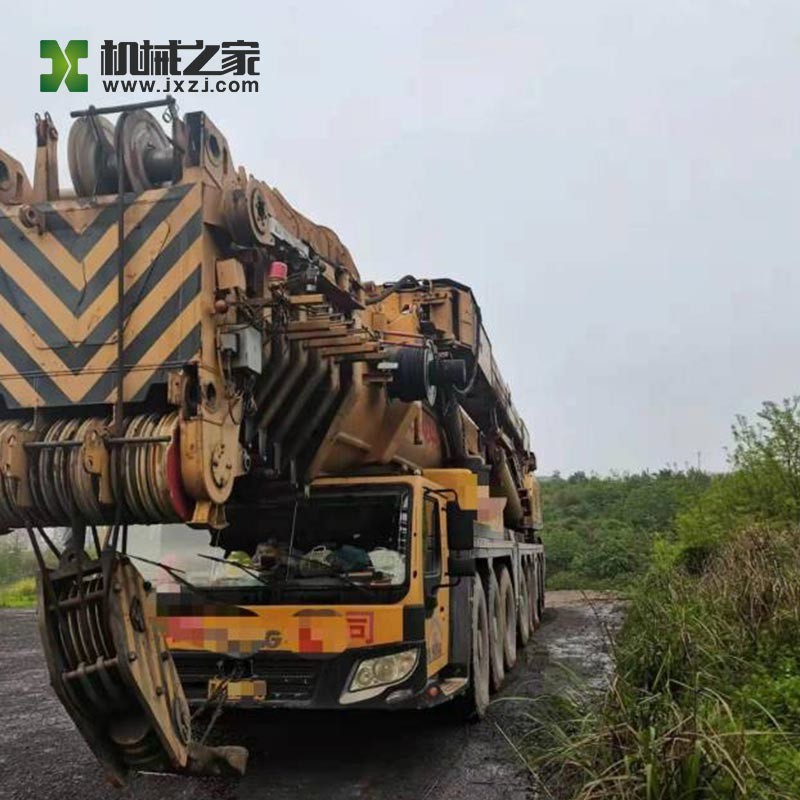

XCMG QAY500 Used All Terrain Cranes 500 Ton Mobile Crane

  • XCMG QAY500 Used All Terrain Cranes 500 Ton Mobile Crane
  • XCMG QAY500 Used All Terrain Cranes 500 Ton Mobile Crane
Place of Origin China
Brand Name XCMG
Certification CE , ISO9001
Model Number QAY500
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Status Used Max. Lifting Height 18- 91m
Max. Lifting Weight 500 Ton Axle No. 8
Jib Boom 2 Section Production Date 2013
Highlight

XCMG Used All Terrain Cranes

,

QAY500 Used All Terrain Cranes

,

500 Ton Mobile Crane
Leave a Message
Product Description

XCMG Used All-Terrain Truck Crane XCMG QAY500 Ton Second Hand Crane



Production Details:



Model NO.



QAY500

 Boom Type Telescopic



Max. Rated Lifting Capacity



 500000 kg Max. Lifting Height of Jib 84m



Max Gradeability



 35% Working Diameter 30m



Transport Package



 Compliant with export packaging requirements Specification

20900×3000×4000mm



Driving Mileage



700000m

Working hours

6000h



Trademark



 XCMG Place of Origin China



HS Code



   Supply Capacity 1 Units Per Month





  • The QAY500 all terrain crane is equipped with a new-generation large-space luxury cab that is enlarged and widened, equipped with a combined center console, all-digital display instruments, grammer air suspension seats, and electrically adjustable rear-view mirrors.
  • The full outrigger length is 84 meters, on the other hand, this crane has a variety of optional devices, including 63m fixed and extended jib, and a 95meters luffing jib, that expands the operation ability, making installation projects with high working height requirements, like wind power projects;
  • The computer integrated control technology, through the application of the field bus technology, makes the energy-saving effect of the product very obvious, the fault diagnosis is highly intelligent, also the control is highly automated.
  • Equipped with an auxiliary hoist specially used to install the wire rope of the large hook, and the disassembly of optional devices such as counterweight, luffing jib, etc..



Product Parameters:

Item Unit Parameters
Parameter item   QAY500
Size parameters
Overall length of the whole machine mm 20900
Overall width of the whole machine mm 3000
Overall height of the whole machine mm 4000
wheelbase mm 1650+1650+2900+1650+1650+2350+1650
Tire distance mm 2540
Weight parameters
Deadweight in traveling condition kg 96000
Axle load kg 12000×8
Dynamic parameters
Engine model (Operating cab)   OM906LA
Engine rated power kw/(r/min) 205/2100
Engine rated torque N.m/(r/min) 1110/1200～1600
Engine model (Driving cab)   OM502LA.E3A/1
Engine rated power kw/(r/min) 480/1800
Engine rated torque N.m/(r/min) 2800/1300
Traveling parameters
Traveling
Top speed km/h 80
Min. stable driving speed km/h 2
Turning
Min. turning diameter m 30
Boom head Min. turning diameter m -
Max. gradeability ％ 35(96t)
Min. ground clearance mm 330
Approach angle ° 13
Departure angle ° 15
Braking distance m ≤10
Fuel consumption per 100 km L 105
Main performance parameters
Max. gradeability (％) -
Max. rated lifting capacity t 500
Min. rated amplitude m 3
Max. lifting moment of the basic boom kN·m 15190
Turntable tail turning radius mm 6760
Outrigger
Vertical m 10.125
Horizontal m 9.6(6.5)
Max. lift height
Basic boom m 17.5
Longest main boom m 84.2
Longest main boom + jib m 124
Boom length
Basic boom m 16.1
Longest main boom m 84
Longest main boom + jib m -
The longest main boom + jib + extension m 56/91(optional)
Working speed
Max. rotation speed r/min 0.8
Lifting speed
Main hoisting mechanism (m/min) 170 (outermost working layer)
Auxiliary lifting mechanism (m/min) 170 (outermost working layer)
Luffing jib luffing winch (m/min) 65 (fourth floor)
Boom extension time
full extension s 960
full contraction s 900
Amplitude time
Full boom lift s 125
Full boom drop s -
Outrigger retractable
Horizontal
put at the same time s 60
receive at the same time s 40
Vertical
put at the same time s 60
receive at the same time s 45



XCMG QAY500 Used All Terrain Cranes 500 Ton Mobile Crane 0XCMG QAY500 Used All Terrain Cranes 500 Ton Mobile Crane 1
