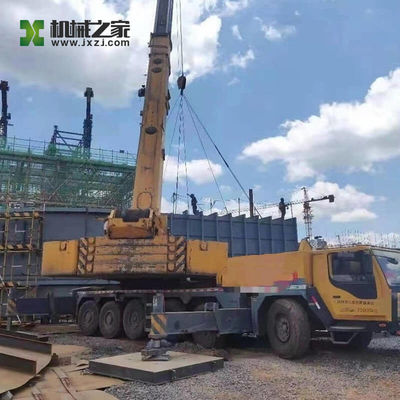

Used XCMG All Terrain Crane XCMG JQAY200 200 Ton Mobile Crane
| Place of Origin | China |
|---|---|
| Brand Name | XCMG |
| Certification | CE , ISO7501 |
| Model Number | JQAY200 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Bulk |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | Used | Maximum Lifting Height | 13 - 81m |
|---|---|---|---|
| Maximum Lifting Weight | 200 Ton | Axle Number | 6 |
| Jib | 2 Section | production Date | 2011 |
| High Light | JQAY200 XCMG All Terrain Crane,Used XCMG All Terrain Crane,XCMG 200 Ton Mobile Crane |
||
Product Description
Used XCMG All- Terrain Truck Crane XCMG JQAY200 Ton Second Hand Crane
Production Details:
|
Model NO.
|
JQAY200 |
Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
200000 kg | Max. Lifting Height of Jib | 61m |
|
Max. Gradeability
|
40% | Turning Diameter | 24m |
|
Transport Package
|
Compliant with export packaging requirements | Specification |
4000×3000×16130mm |
|
Drive Mileage
|
22381.4kms | Working hours | 10000h |
|
Trademark
|
XCMG | Origin | China |
XCMG QAY200 crane fully integrates domestic and foreign advanced design and manufacturing technologies, and a number of proprietary core technologies have obtained national patents. Among them, large-scale equipment such as blast furnaces and coke ovens tend to be larger and larger, and similar large-scale lifting machinery is required to install and maintain these large-scale equipment.
This machine was manufactured in 2011. It is an all-terrain crane with a counterweight of 65 tons, a main boom of 60 meters, and a three-section jib of 20 meters. It has excellent performance.
Product Parameters:
| Item | Data |
| Model | QAY200 |
| Auxiliary lifting mechanism no-load lifting speed | 110m/min |
| Main hoisting mechanism no-load hoisting | 120m/min |
| Retract the vertical outriggers simultaneously | 45s |
| Extend the vertical outriggers simultaneously | 50s |
| Horizontal outriggers retract at the same time | 40s |
| Horizontal outriggers extend at the same time | 50s |
| Max. rotation speed | 1.9r/min |
| Full extension/retraction boom telescopic | 550/550m |
| Boom boom luffing | 90m |
| The longest main boom + jib boom length | 81m |
| Longest main boom boom length | 61m |
| Basic Boom Boom Length | 13.8m |
| The longest main boom + jib lifting height | 82.1m |
|
The longest main boom lifting height |
61.5m |
| Basic boom lift height | 14.5m |
| Outrigger distance vertical/horizontal | 9.625/8.7(6.5)m |
| Max. lifting moment The longest main boom | 2752kN.m |
| Max. lifting moment of the basic arm | 6774kN.m |
| Turntable tail turning radius (balance weight) | 5070mm |
| Min. rated working range | 3m |
| Max. rated gross lifting | 200t |
| Fuel consumption/100km | 80l |
| Max. climbing grade | 48% |
| Braking distance (vehicle speed is 30km/h) | ≤10m |
| Departure angle | 20/18° |
| Approach angle | 25° |
| Min. turning diameter | 24m |
| Min. ground clearance | 278mm |
| Max. driving speed | 71km/h |
| Rated speed of the Driving Cab engine | 1800r/min |
| Rated torque Rated torque | 2400/1080N.m/(r/min) |
| Rated power of the Driving Cab engine | 390/1800v |
| Rated speed of the Operating Cab engine | 854/1400N.m/(r/min) |
| Rated power of the Operating Cab engine | 2100r/min |
| Rated power of the Operating Cab engine | 162/2100kw/(r/min) |
| Five, six axes 5th | 11900kg |
| Three, four axles 3rd | 11850kg |
| 1st, 2nd axis 1st | 11750kg |
| The weight of the whole machine in driving state | 71000kg |
| Overall height of the whole machine | 4000mm |
| Overall width of the whole machine | 3000mm |
| Overall length of the whole machine | 16130mm |
