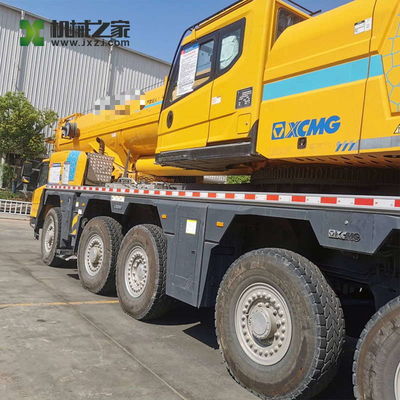

XCMG XCA220 Used All Terrain Cranes 220 Ton Second Hand Crane 108.5m

  • XCMG XCA220 Used All Terrain Cranes 220 Ton Second Hand Crane 108.5m
  • XCMG XCA220 Used All Terrain Cranes 220 Ton Second Hand Crane 108.5m
  • XCMG XCA220 Used All Terrain Cranes 220 Ton Second Hand Crane 108.5m
  • XCMG XCA220 Used All Terrain Cranes 220 Ton Second Hand Crane 108.5m
Place of Origin China
Brand Name XCMG
Certification CE , ISO9001
Model Number XCA220
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 13.8- 108.5m
Maximum Lifting Weight 220 Ton Axle Number 5
Jib 2 Section  production Date 2020
Highlight

XCA220 Used All Terrain Cranes

,

108.5m Used All Terrain Cranes

,

220 ton crane
Leave a Message
Product Description

XCMG Used All-Terrain Truck Crane XCMG XCA220 Ton Second Hand Crane

Production Details:


Model NO.


XCA220

 Boom Type Telescopic


Max. Rated Lifting Capacity


 220000 kg Max. Lifting Height of Jib 73m


Max Gradeability


 67% Working Diameter 18.5m


Transport Package


 Compliant with export packaging requirements Specification

15500×2980×3930mm


Driving Mileage


220000m

Working hours

2800h


Trademark


 XCMG Place of Origin China


HS Code


   Supply Capacity 1 Units Per Month



  • XCMG XCA220 all-terrain crane is the five-axle 220-ton all-terrain crane with the highest lifting performance in the world.
  • Industry-leading boom length and operating performance, five-axle chassis with strong driving power and high mobility, original fully closed hydraulic system to improve operation fretting and smoothness, intelligent boom technology and human-computer interaction system make the product more intelligent and easy to operate more efficient.
  • The seven-section main boom is 73m, the jib is 44m, and the maximum system boom length can reach 108.2m.
  • Full-axle steering, small turning radius, free switching of three-axle/four-axle drive, three-wheel drive for highway driving, high driving economy; four-wheel drive is suitable for off-road and site transfer, and the climbing ability reaches 67%, the highest in the industry.


Product Parameters:

Parameter item XCA220
Dimensions *
Overall length of the whole machine (mm) 15500
Overall width of the whole machine (mm) 2980
Overall height of the whole machine (mm) 3930
Wheelbase(mm) 2650+1650+2500+1650
Tire distance(mm) 2590
Weights *
Total mass in driving state (kg) 55000
Self-dismounting counterweight mass (kg)
Axle load(kg) 12000×3+9500×2
Dynamic parameters *
Engine model
Engine model (on the car) OM460LA.E3B/3
Engine rated power (kw/(r/min)) 361.1/1800
Engine rated torque (N.m/(r/min)) 2200/1300
Engine model (get off) —
Engine rated power (kw/(r/min)) —
Engine rated torque (N.m/(r/min)) —
Traveling parameters *
Traveling *
Max. travel speed (km/h) 84
Min. stable driving speed (km/h) 1~1.5
Turning *
Min. turning diameter (m) 18.5
Arm head Min. turning diameter (m) 22.5
Max. gradeability(%) 67
Min. ground clearance (mm) 280
Approach angle (°) 18
Departure angle (°) 14

Braking distance (dry and flat asphalt or concrete road,

when the vehicle speed is 30km/h) (m)

 ≤9
Fuel consumption per 100 kilometers (L) 65
Main performance parameters *
Max. gradeability(%) 67
Max. rated total lifting weight (t) 220
Min. rated amplitude (m) 3
Max. lifting moment of the basic boom (kN m) 7393
Turntable tail turning radius (mm) 5030
Legs *
Longitudinal (m) 8.89
Lateral (half extension) (m) 8.3
Max. lift height *
Basic boom (m) 13.4
The longest main boom (m) 73.5
The longest main boom + jib (m) 108
Boom length *
Basic boom (m) 13.4
The longest main boom (m) 73
The longest main boom + jib (m) 108.2
Longest luffing jib (m) —
Working speeds *
Max. rotation speed (r/min) 1.9
Main hoisting mechanism (m/min) 130
Lifting speed (single rope, no load, 4th floor) *
Luffing jib luffing winch (m/min) —
Auxiliary lifting mechanism (m/min) 130
Boom extension time *
Main boom derricking up time (s)
Full extension(s) 600
Full shrink(s) 600
Amplitude time *
Full lift (s) 55
Full arm drop(s) —
Outrigger retraction--horizontal *
Simultaneously put(s) —
Simultaneous receipt (s) —
Outrigger retraction-vertical *
Simultaneously put(s) 100
Simultaneous receipt (s) 70

XCMG XCA220 Used All Terrain Cranes 220 Ton Second Hand Crane 108.5m 0XCMG XCA220 Used All Terrain Cranes 220 Ton Second Hand Crane 108.5m 1XCMG XCA220 Used All Terrain Cranes 220 Ton Second Hand Crane 108.5m 2
