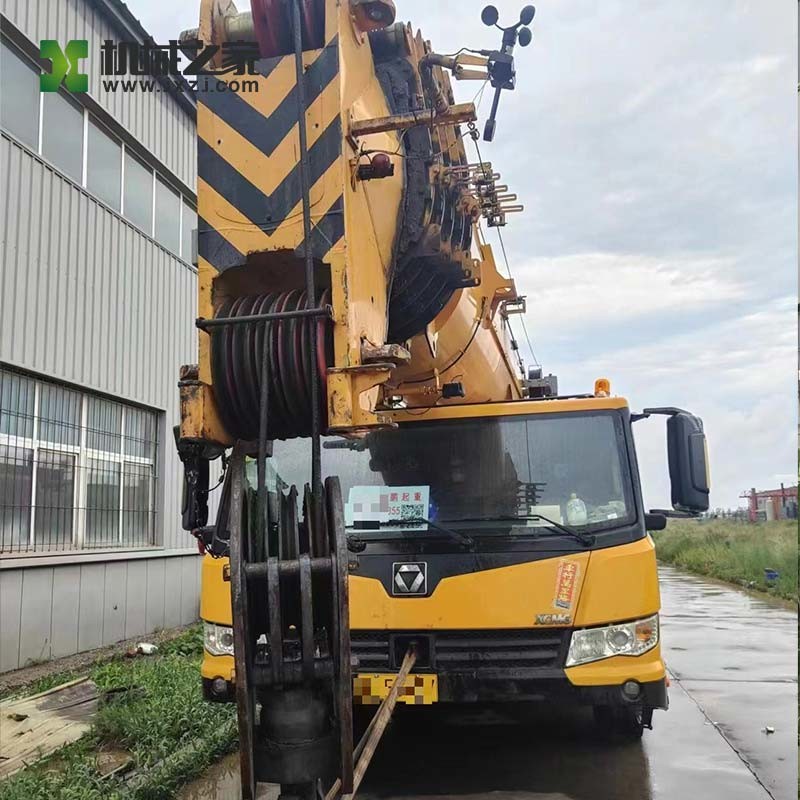

180 Ton Used All Terrain Cranes XCMG XCA180 Second Hand Crane

Place of Origin China
Brand Name XCMG
Certification CE , ISO9001
Model Number XCA180
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Maximum Lifting Height 13.8- 110.7m
Maximum Lifting Weight 180 Ton Axle Number 5
Jib 2 Section  production Date 2019
High Light

180 ton Used All Terrain Cranes


80m Used All Terrain Cranes


XCMG XCA180 Second Hand Crane

Leave a Message
Product Description

XCMG Used All-Terrain Truck Crane XCMG XCA180 Ton Second Hand Crane
Production Details:

Model NO.


Boom TypeTelescopic

Max. Rated Lifting Capacity

180000 kgMax. Lifting Height of Jib80m

Max Gradeability

65%Working Diameter18.5m

Transport Package

Compliant with export packaging requirementsSpecification


Driving Mileage


Working hours



XCMGPlace of OriginChina

HS Code

 Supply Capacity1 Units Per Month


  • Super high performance, super power
  • XCA180L8C eight-section 80m main boom, the Max. boom length is 110.7m, and the Max. lifting moment is 6480KN.m
  • The Max. lifting height of the jib is 106m, and the Max. lifting weight is 2.9t
  • XCA180L8C uses five-axle all-terrain crane chassis, large-tonnage crane, hydraulic single-engine system, optimized layout and mature and efficient transmission parts. It has lower fuel consumption than the industry and saves users' operating costs.
  • At the same time, it has a dual-mode time-sharing drive system, three-wheel drive and four-wheel drive can be freely switched, and the Max. climbing performance is as high as 65%, which can meet the needs of various road conditions.
  • Compared with the three-axle drive model in the industry, it has a stronger ability to get out of trouble. The large-tonnage crane itself is heavy, and once it gets stuck on a muddy road, it will not be able to get out for a while, avoiding the impact of the trapped vehicle on the income.
  • XCA180L8C adopts heavy-duty special steering tie rods and self-lubricating high-strength bearings, so that the single-bearing load capacity is as high as 30t, and it has an extremely powerful 132.5-ton heavy-duty transition mode:
  • Arm end single pulley, auxiliary roll, full counterweight 68t, get off with spare tire, spare tire bracket, with movable outrigger, foot plate, etc.
  • XCA180L8C adopts a new energy-saving hydraulic system. The four major actions of hoisting, slewing, luffing, and telescoping all realize the pure pump-controlled volume speed regulation system, which completely realizes pure linear speed control, and the control feels silky and smooth.
  • Using the latest plunger motor, the hydraulic system has fast speed and high efficiency, which can easily achieve rapid lifting of light loads, stable lifting of heavy loads and large torques, and each movement can be manipulated freely, fully meeting the needs of users for precise hoisting operations.

Product Parameters:

Parameter itemXCA180L8
Overall length of the whole machine (mm)15400
Overall width of the whole machine (mm)3000
Overall height of the whole machine (mm)4000
Weight parameter
Axle load (kg)10790/11200/11500/10900/10600
Dynamic parameters
Engine modelMC13.54-50/MC13.54-61
Engine rated power (kw/(r/min))400/1900 400/1800
Traveling parameters
Max. travel speed (km/h)≥80
Min. stable driving speed (km/h)3
Min. turning diameter (m)≤18.5
Boom head Min. turning diameter (m)≤22.7
Max. grade(%)≥65
Min. ground clearance (mm)307
Approach angle (°)18
Departure angle (°)14

Braking distance
(Dry and flat asphalt or concrete pavement,
When the vehicle speed is 30km/h) (m)

Fuel consumption per 100 kilometers (L)72
Main performance parameters
Max. rotation speed (r/min)≥1.5
Full extension(s)≤850
