XCMG QAY650 Used All Terrain Cranes 650 Ton Crane 152m

Place of Origin China
Brand Name XCMG
Certification CE , ISO9001
Model Number QAY650
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Max. Lifting Weight 650 Ton
Max. Lifting Height 18- 152m Jib 2 Section
Axle No. 8 MOY 2015
High Light

XCMG QAY650 Used All Terrain Cranes

,

152m Used All Terrain Cranes

,

650 ton crane

Leave a Message
Product Description

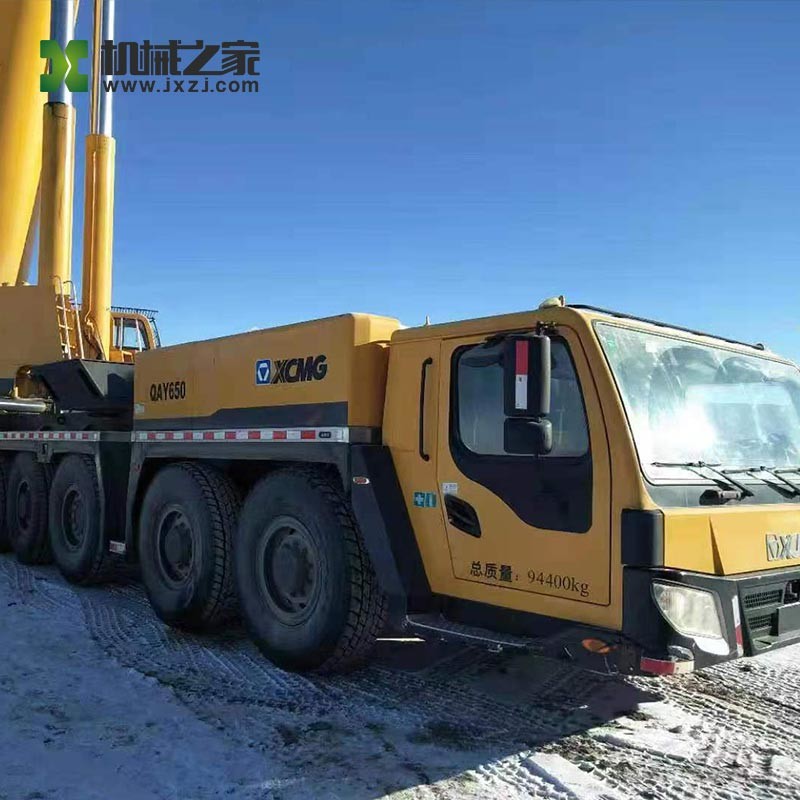

XCMG Used All-Terrain Truck Crane XCMG QAY650 Ton Second Hand Crane



Production Details:



Model NO.



QAY650

Boom Type Telescopic



Max. Rated Lifting Capacity



650000 kg Max. Lifting Height of Jib 92m



Max Gradeability



40% Working Diameter 29m



Transport Package



Compliant with export packaging requirements Specification

22695×3000×4000mm



Driving Mileage



460910m

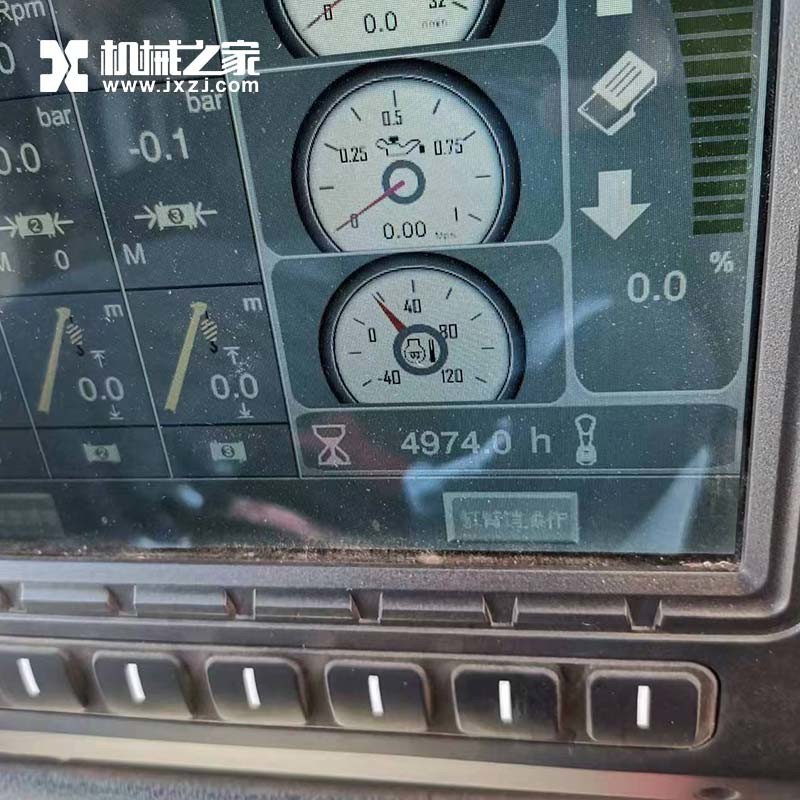

Working hours

4974h



Trademark



XCMG Place of Origin China



HS Code



  Supply Capacity 1 Units Per Month



  • XCMG QAY650A all-terrain crane is positioned to meet the mainstream 1.5MW wind turbine installation requirements in the market, and can meet the construction and maintenance of some 2.0MW wind power, petrochemical equipment hoisting and bridge construction.
  • The whole vehicle adopts 8-axle all-terrain special chassis, the driving and steering form is 16×8×16, X-type outrigger structure; 7-section U-section box-type main arm, the arm length is 18-92m; it is equipped with double-rate Y-type super Lifting, luffing jib and special wind power boom head, the longest fixed jib can be up to 56m, and the luffing jib can be up to 56m.
  • Special wind power arm head working condition design to meet the installation requirements of 2.0MW wind turbines;
  • The new luffing jib device makes the boom safer and more efficient;
  • The new self-top counterweight hooking method is adopted to realize the self-disassembly of the counterweight.
  • Using black box technology, touch screen display control technology, fault detection and diagnosis technology and many other high-tech technologies, it is easy to operate and has high reliability.
  • The chassis power system is optimized and matched, which is more efficient and energy-saving; the precise electronically controlled multi-mode steering system ensures flexible and reliable steering; the advanced multi-brake integrated management system ensures safe and economical driving. The heavy-duty transition ability is strong, and the transition operation is efficient and convenient.



Product Parameters:

Item



Unit



Parameters



parameter item   QAY650
Size parameters
Overall length of the whole machine mm 22695
Overall width of the whole machine mm 3000
Overall height of the whole machine mm 4000
Wheelbase mm

1500+2150+1500+1500

+3430+3680+1500

Tire distance mm 2590
Weight parameters
Total mass in driving state kg 94400
Axle load kg 11680×5+12000×3
Dynamic parameters
Engine model (Operating cab)   OM906LA
Engine rated power kw/(r/min) 205/2100
Engine rated torque N.m/(r/min) 1110/1200~1600
Engine model (Driving cab)   OM502LA.E3A/1
Engine rated power kw/(r/min) 480/1800
Engine rated torque N.m/(r/min) 2800/1300
Traveling parameters
Traveling
Top speed km/h 75
Min. stable driving speed km/h 2
Turning
Min. turning diameter m 29
Boom head Min. turning diameter m 34
Max. grade 40(94.4t)
Min. ground clearance mm 280
Approach angle ° 12
Departure angle ° 30
Braking distance m ≤10
Fuel consumption per 100 km L 110
Main performance parameters
Max. gradeability (%) -
Max. rated lifting capacity t 650
Min. rated amplitude m 3
Max. lifting moment of the basic arm kN·m 19500
Turntable tail turning radius mm 7300 (balance weight)
Outrigger
Vertical m 11.1
Horizontal m 10
Max. lift height
Basic boom m 19
Longest main boom m 91
Longest main boom + jib m 130
Boom length
Basic boom m 18
Longest main boom m 92
Longest main boom + jib m -
The longest main boom + jib + extension m 56/91(optional)
Working speed
Max. rotation speed r/min 1
Lifting speed
Main hoisting mechanism (m/min) 140(empty)
Auxiliary hoisting mechanism (m/min) -
Luffing jib luffing winch (m/min) 140
Boom extension time
Full extension (s) 1350
Full contraction (s) 1350
Amplitude time
Full boom lift s 150
Full boom drop s -
Outrigger retractable
Horizontal
put at the same time s -
receive at the same time s -
Vertical
put at the same time s -
receive at the same time s -
