Sany SCC1500C Used Crawler Cranes 150 Ton 16 M 2010

Place of Origin China
Brand Name Sany
Certification CE, ISO9001
Model Number SCC1500C
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 13~116 M
Maximum Lifting Weight 150 Ton Jib 2 Section
Specification 16990×3470×3500mm MM  production Date 2010
High Light

SCC1500C Used Crawler Cranes

,

Sany Used Crawler Cranes

,

crawler crane 150 ton

Leave a Message
Product Description

Used Sany Crawler Crane Sany SCC1500C Second Hand Crawler Crane



Production Details:



Model No.



SCC1500C

Boom Type Tower boom



Max. Rated Lifting Capacity



1500000 kg Max. Lifting Height of Jib 75m



Max Gradeability



30% Working hours 12000h



Transport Package



Compliant with export packaging requirements Specification

16990×3470×3500mm



Trademark



Sany Place of Origin China



HS Code



  Supply Capacity 10 Units Per Month



Safe control system

The two operation modes of work and installation are convenient and reliable; equipped with real-time display of levelness, off-machine stop action, emergency electrical control, lightning protection, automatic walking direction adjustment, closed-circuit monitoring and other functions, complete safety and monitoring systems;

Excellent operating performance Load sensing, limit load adjustment and electro-hydraulic proportional micro-speed control make each movement excellent in micro-movement and operate more smoothly;





Reliable function guarantee

All key components are of international famous brands; the safety margin of structure and mechanism design is sufficient;

The control system can operate stably in the harsh environment of high cold, high temperature, plateau and strong wind and sand;

Convenient maintenance technology The time for approaching the part to be adjusted is no more than 10min/person, the time for approaching the part requiring daily maintenance is no more than 30min/person, and the time for approaching the longest maintenance is no more than 2h/person;

And equipped with GPS remote monitoring system to facilitate users to maintain and manage equipment;

Strong lifting capacity The Max. lifting capacity of the main boom is 900t·m, the longest main boom is 81m, the Max. lifting capacity of the luffing jib is 548.41t.m, and the longest boom combination is 53m+52m, supporting up to 7 working condition combinations;

Efficient self-loading and unloading technology The whole machine can be installed and disassembled by itself, and the main engine installation only takes 3 hours, and the synchronous control technology of one-key lifting of the mast has self-made property rights;



Optimised transport solution

The transport width of the body is only 3m, the transport weight is only 41t, and the chassis can be transported unlimitedly. The chassis is designed with a gauge of 6m to ensure excellent operational stability within a 360° rotation range;

100% walking with load, strong walking traction and walking stability make the advantages of crawler cranes to the extreme;



Broad adaptability

Complies with CE, North America, Australia, Russia and Taiwan certification requirements and European and American off-highway Stage 3 emissions standards.



Various optional configurations

Optional third winch.





Product Parameters:

Main boom condition
Max. lifting weight 155t
Max. Lifting Moment 124.5×7t•m
Boom length 18~81m
Main boom luffing 30°~80°
Fixed jib condition
Max. Lifting Moment 11.5×35.3t•m
Boom length 27~75m
Jib length 13~31m
Longest main boom + longest fixed jib 69+31/75+13m
Main boom luffing 30°~80°
Jib variable angle 15°,30°
Working condition of luffing jib
Max. Lifting Moment 14.8×22t•m
Boom length 34.79~49.79m
Luffing Jib Length 27~45m
Longest main boom + longest luffing jib (49.8+45) m
Jib variable angle 25°~72°
Speed parameter

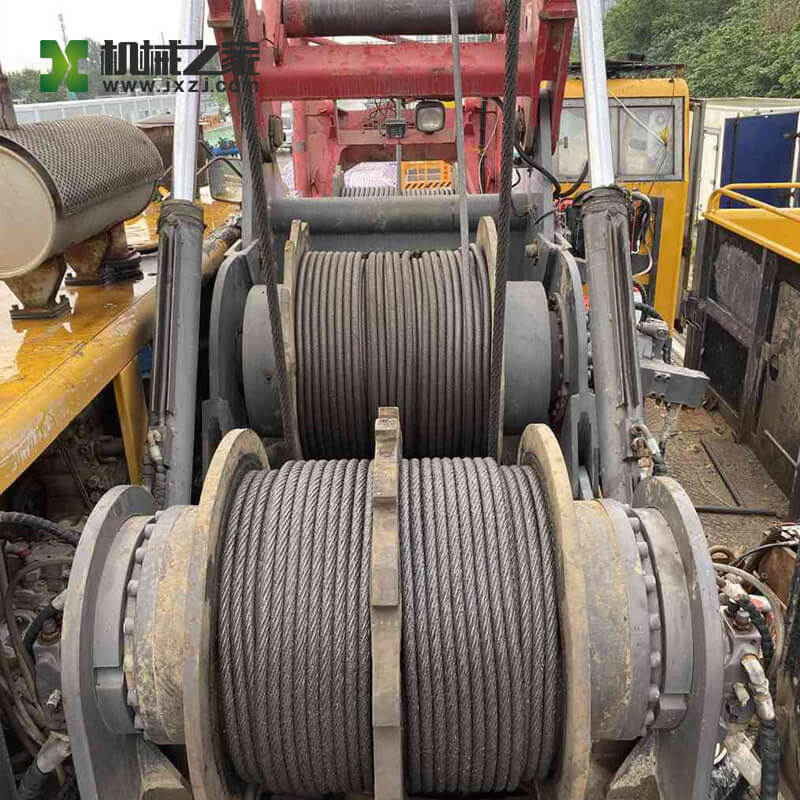

Main winch rope speed 0~125m/min
Auxiliary winch rope speed 0~125m/min
Luffing winch rope speed (0~24)×2 m/min
Swing speed 0~2.0rpm
Walking speed 1.2/0.6 km/h (two-speed)
Gradeability 30%

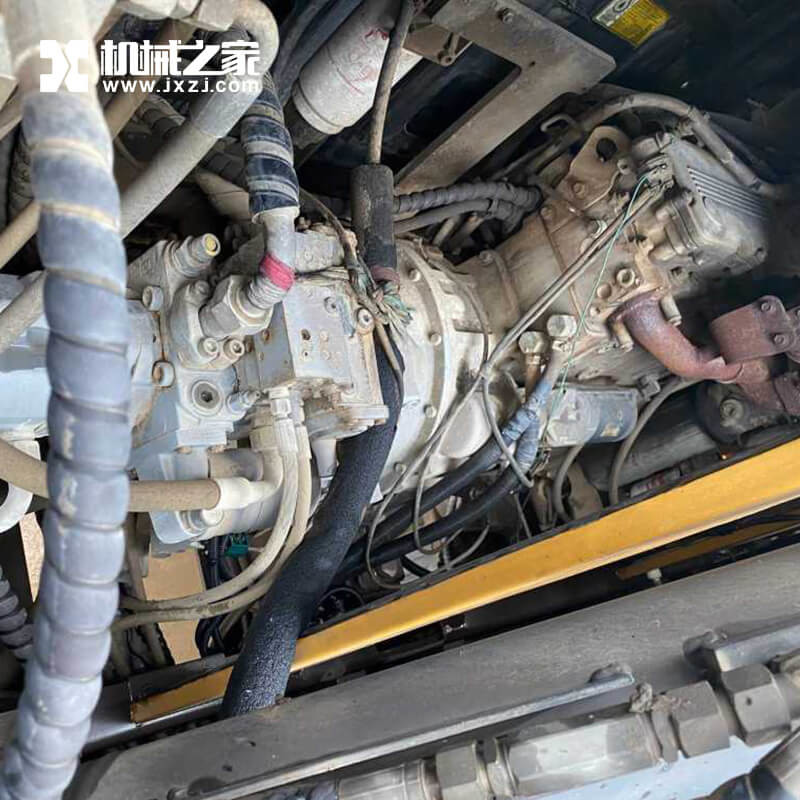

Engine
Output Power 242kW
Rated speed 2100rpm
Weights
Total Weight 153.2t
Counterweight 53.2t
Max. single piece shipping weight 53.6t
Shipping Dimensions (L×W×H) 16990×3470×3500mm
Ground specific pressure (basic boom) 0.093MPa

Note: Main/auxiliary hoist rope speed, luffing hoist rope speed, rotation and travel speed vary according to the size of the load.



The speed of the main and auxiliary hoisting ropes refers to the speed of the third working layer.



The speed of the luffing hoisting rope refers to the speed of the fifth working layer.
