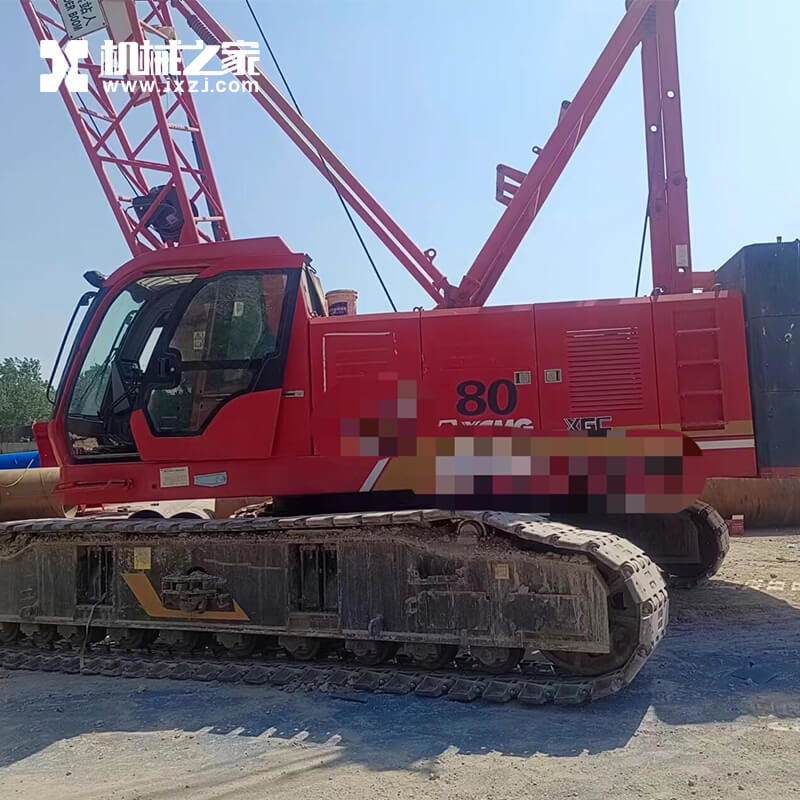

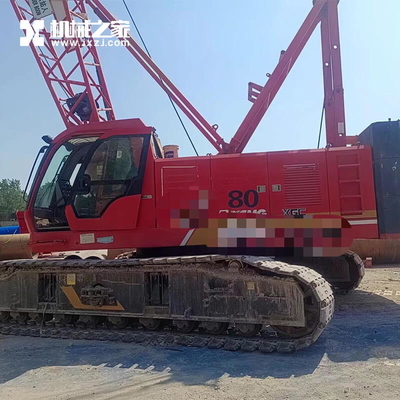

Used XCMG Crawler Crane XCMG XGC75 Second Hand Crawler Crane 75 Ton
| Place of Origin | China |
|---|---|
| Brand Name | XCMG |
| Certification | CE, ISO9001 |
| Model Number | SCC750E |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Bulk |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | Used | Maximum Lifting Height | 13～58 M |
|---|---|---|---|
| Maximum Lifting Weight | 75 Ton | Jib | 3 Section |
| Specification | 12300×3360×3300mm | production Date | 2017 |
| High Light | Used XCMG Crawler Crane,XGC75 XCMG Crawler Crane,75 ton Second Hand Crawler Crane |
||
Product Description
Used XCMG Crawler Crane XCMG XGC75 Second Hand Crawler Crane
Production Details:
|
Model NO.
|
XGC75 |
Boom Type |
Tower boom |
|
Max. Rated Lifting Capacity
|
75000 kg | Max. Lifting Height of Jib | 49m |
|
Max. Gradeability
|
30% | Working hours | 7000h |
|
Transport Package
|
Compliant with export packaging requirements | Specification |
12.7×3.4×3.4 M |
|
Trademark
|
XCMG | Origin | China |
1. Optimized design of transportation and assembly/disassembly.
* The basic machine is designed for integrated transportation, without disassembling the crawler frame and boom base, which greatly saves transportation costs and improves assembly/disassembly efficiency.
* The unique A-type gantry self-supporting technology can realize self-supporting without oil cylinder and realize the rapid assembly of the crane. * The weight of a single counterweight does not exceed 4 tons, and a small auxiliary lifting device can achieve a complete counterweight assembly.
2. Optimized hydraulic system design
* Adopt highly integrated LUDV main valve, with multi-way operation, control combined flow, high/low speed selection and other functions to ensure operation efficiency.
* The unique independent bypass filter and strong magnetic adsorption device in the industry are used to strengthen the filtering and anti-emulsification ability of the hydraulic system.
3. One-key switching function of main/auxiliary hooks Using a one-key switch
The main/auxiliary hook switching can be easily realized, and the application range is wider.
This machine was manufactured in 2017, the main boom length is 49m, the main hook is 55T, the auxiliary hook is 8T, no quick release, no overfitting, and the vehicle condition is very good.
Product Parameters:
|
Project
|
Value
|
|
| Parameter item | - | XGC75 |
|
Working performance
|
||
| Max. rated lifting capacity of main boom | (t) | 75 |
| Max. rated lifting capacity of fixed jib | (t) | 12 |
| Max. rated lifting capacity of luffing jib | (t) | - |
| Max. Lifting Moment | (t.m) | 286 |
| Max. lifting capacity of tower jib | (t) | - |
| Max. rated lifting capacity of single pulley at arm end | (t) | 6.5 |
| Max. rated lifting capacity of dedicated jib | (t) | - |
|
Dimensions
|
||
| Main boom length | (m) | 13～58 |
| Main boom luffing angle | (°) | -3～80 |
| Fixed Jib Length | (m) | 7～19 |
| Tower Jib Length | (m) | - |
| Max. size of a single piece in transport state (L×W×H) | (m) | 12.7×3.4×3.4 |
| Fixed jib mounting angle | (°) | 10°,30° |
| Dedicated Jib Length | (m) | - |
| Working speeds | ||
| Max. single rope speed of hoisting mechanism | (m/min) | 128 |
| Max. single rope speed of main boom luffing mechanism | (m/min) | 70 |
| Max. single rope speed of jib luffing mechanism | (m/min) | - |
| Max. rotation speed | (r/min) | 3 |
| Max. driving speed | (km/h) | 1.4 |
| Gradeability | (%) | 30 |
| Average ground pressure | (MPa) | 0.08 |
| Max. single rope speed of tower boom luffing mechanism | (m/min) | - |
| Max. single rope speed with super hoisting and luffing | (m/min) | - |

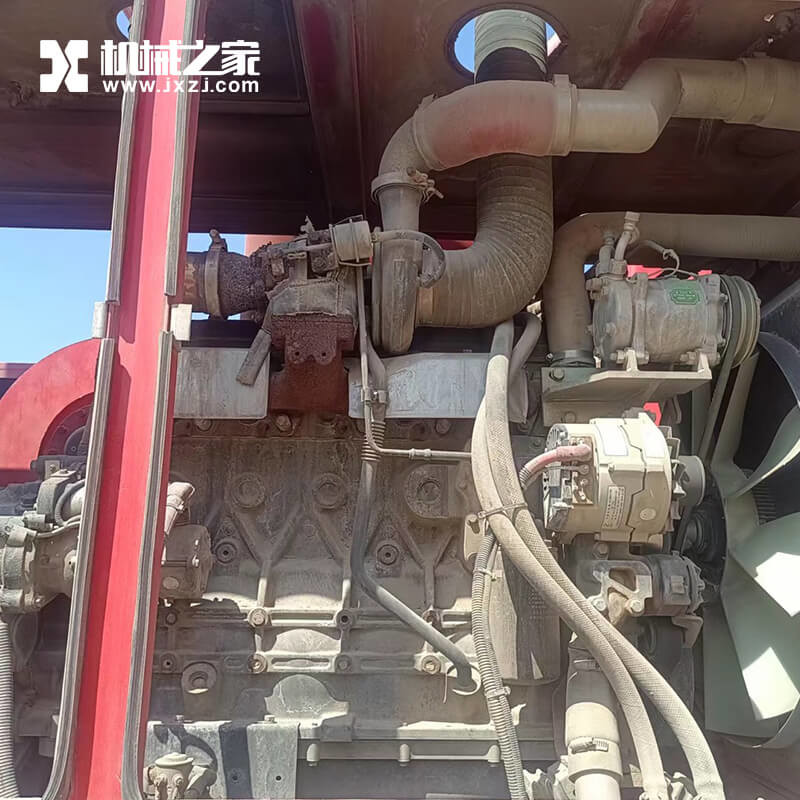

| Engine | ||
| Model | - | SC7H210/QSB6.7 |
| Engine power | (kW) | 154/153 |
| Emissions | - | Euro Ⅱ/Euro Ⅲ |
| Weights | ||
| Mass of the whole machine | (t) | 61(main hook, 13m arm) |
| Max. mass/piece in shipping condition | (t) | 37 |
