XCMG XGC75 Used Crawler Cranes 75 Ton Second Hand Crawler Crane MOY 2018

Place of Origin China
Brand Name XCMG
Certification CE, ISO9001
Model Number XGC75
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Status Used Max. Lifting Height 13~58 M
Max. Lifting Weight 75 Ton Jib Boom 3 Section
Dimension 12.7×3.4×3.4 M Production Date 2018
High Light

58 M Used Crawler Cranes

,

XGC75 Used Crawler Cranes

,

xcmg crane 75 ton

Leave a Message
Product Description

Used Crawler Crane XCMG XGC75 Second Hand Crawler Crane MOY 2006

Production Details:



Model NO.



XGC75 Boom Type Tower boom



Max. Rated Lifting Capacity



75000 kg Max. Lifting Height of Jib 49m



Max Gradeability



30% Working hours 7000



Transport Package



Complies with Min. export packaging requirements Specification 12.7×3.4×3.4 M



Trademark



XCMG Place of Origin China



HS Code



  Supply Capacity 1 Units Per Month





1. Optimized design of transportation and assembly/disassembly

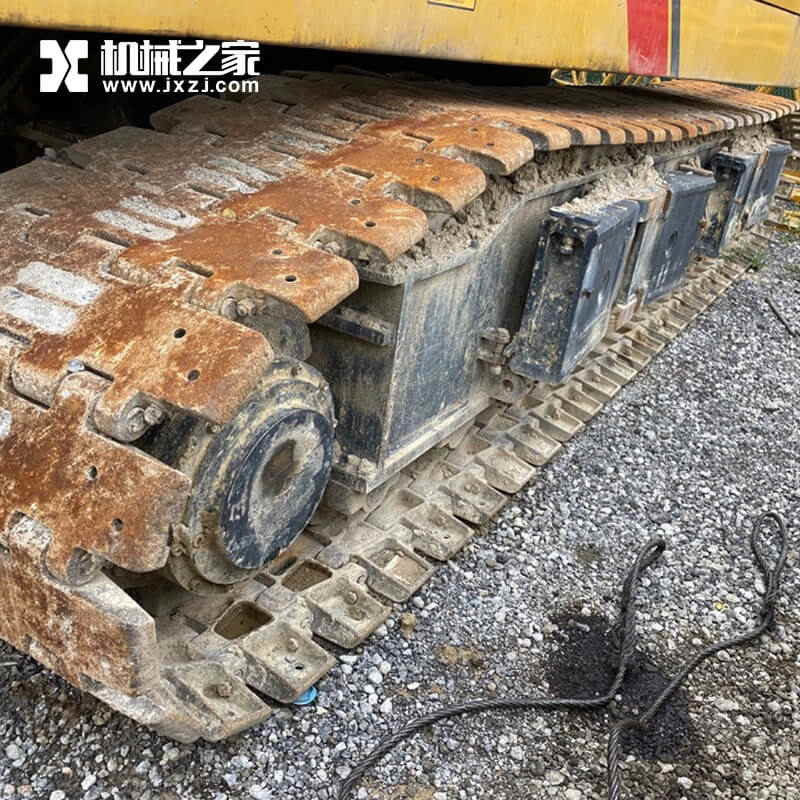

* The basic machine is designed for integrated transportation, without disassembling the crawler frame and boom base, that greatly saves transportation costs and improves assembly/disassembly efficiency.

 * The weight of a single counterweight does not exceed 4 tons, and a small auxiliary lifting device can achieve a complete counterweight assembly.



2. Optimized hydraulic system design

* Integrated design reduces failure points while reserving open space for assembly/disassembly and maintenance.

* Adopt highly integrated LUDV main valve, with multi-way operation, control combined flow, high/low speed selection and other functions to ensure operation efficiency.

* The unique independent bypass filter and strong magnetic adsorption device in the industry are used to strengthen the filtering and anti-emulsification ability of the hydraulic system.

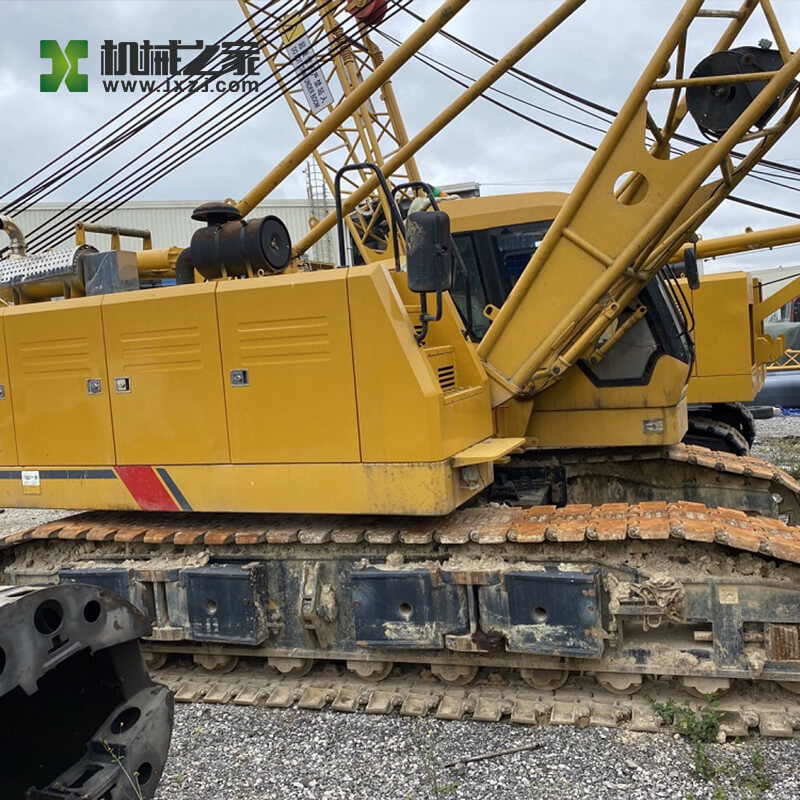

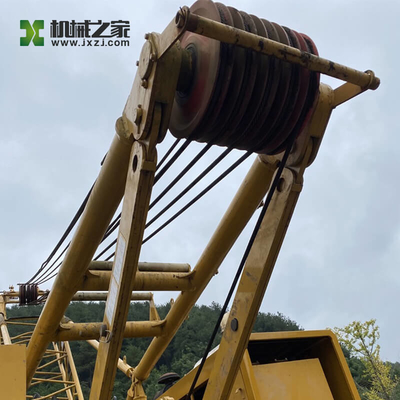

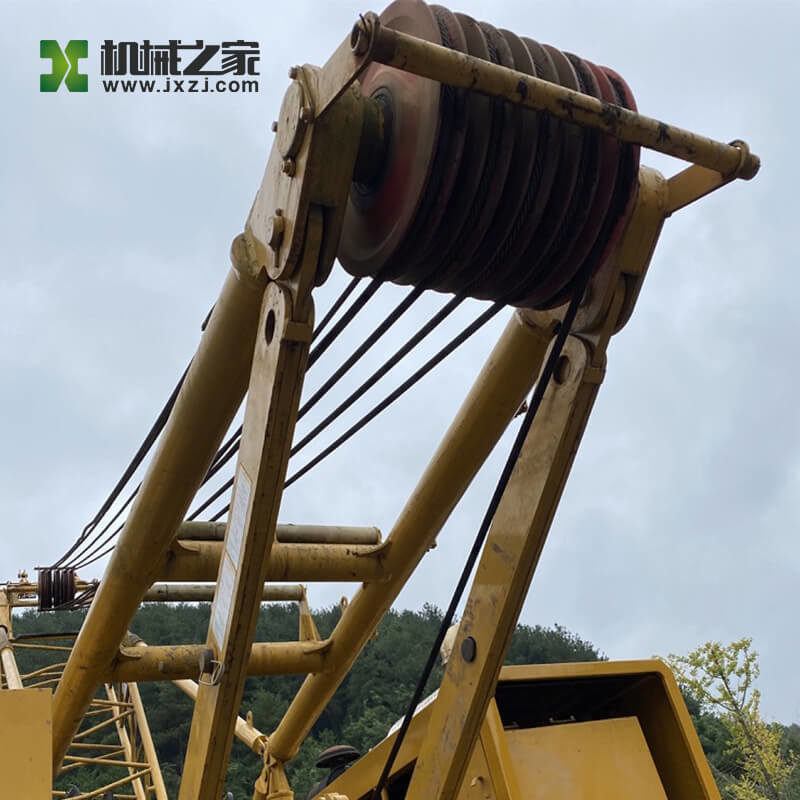

This machine was manufactured in 2018, the main arm is 49 meters, the main hook is 55T, the auxiliary hook is 8T, no quick release, no overfitting, and the vehicle condition is very good.



Product Parameters:



Item



Unit Value
parameter item - XGC75

Working performance parameters



Max. rated lifting capacity of main boom (t) 75
Max. rated lifting capacity of fixed jib (t) 12
Max. rated lifting capacity of luffing jib (t) -
Max. lifting Moment (t.m) 286
Max. lifting capacity of tower jib (t) -
Max. rated lifting capacity of single pulley at arm end (t) 6.5
Max. rated lifting capacity of dedicated jib (t) -

Size parameters



Boom length (m) 13~58
Main boom luffing angle (°) -3~80
Fixed jib length (m) 7~19
Tower jib length (m) -

Max. size of a single piece in shipping state

(length × width × height)

(m) 12.7×3.4×3.4
Fixed jib mounting angle (°) 10°,30°
Dedicated Jib Length (m) -

Speed parameters



Max. single rope speed of hoisting mechanism (m/min) 128
Max. single rope speed of main boom luffing mechanism (m/min) 70
Max. single rope speed of jib luffing mechanism (m/min) -
Max. rotation speed (r/min) 3
Top speed (km/h) 1.4
Gradeability (%) 30
Average ground pressure (MPa) 0.08
Max. single rope speed of tower boom luffing mechanism (m/min) -
Super hoisting and luffing maximum single rope speed (m/min) -

Engine



Model - SC7H210/QSB6.7
Engine power (kW) 154/153
Emission - Euro II/Euro III

Weight parameters



Machine weight (t) 61(Main hook, 13m jib)
Max. mass per piece in shipping condition (t) 37
