XCA260 XCMG Used Truck Cranes 260 Ton Truck Mobile Crane

Place of Origin China
Brand Name XCMG
Certification CE, ISO9001
Model Number XCA260
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T
Supply Ability 10PCS/M

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Maximum Lifting Height 13.8- 120.5m
Maximum Lifting Weight 260ton Axle Number 6
Jib 2 Section  production Date 2022
High Light

XCA260 Used Truck Cranes


2022 Used Truck Cranes


XCMG 260 Ton Crane

Leave a Message
Product Description

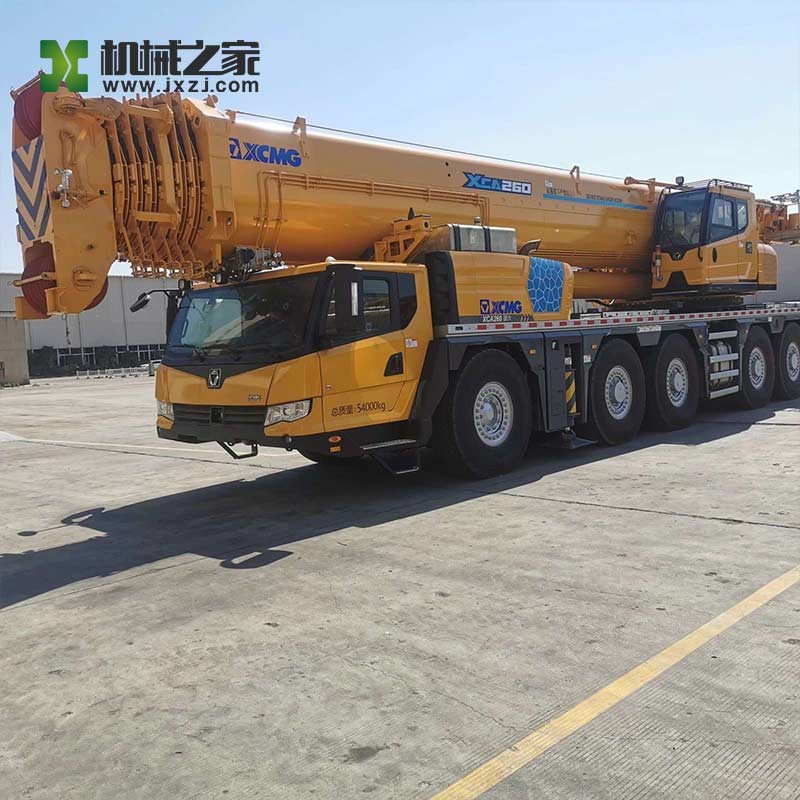

Used Truck Crane XCMG XCA260 Second Hand Truck Mobile Crane


Production Details:


Model No.



Boom Type Telescopic


Max. Rated Lifting Capacity


260000 kg Max. Lifting Height of Jib 82m


Max Gradeability


65% Working Diameter 18.5m


Transport Package


Complies with Min. export packaging requirements Specification



Driving Mileage


100000M Working hours 800h




XCMG Place of Origin China


HS Code


  Supply Capacity 10 Units/ Month


  • XCMG XCA260C all-terrain crane XCMG XCA260C all-terrain crane is an all-terrain crane with a rated lifting capacity of 180~300t manufactured by XCMG.
  • The power adopts high-end first-line brand power transmission parts: 550 horsepower engine + 12-speed automatic transmission + high-load vehicle The collocation of the bridge, the four-axle drive is mechanically driven.
  • With the excellent layout of the whole machine and deeply matched transmission parts, the driving force is maximized, and the Max. climbing performance is as high as 60%, reaching the highest level in the industry.
  • Not to mention higher configuration, even the same configuration, XCMG power matching is better!
  • A car takes the responsibility of a team, and its carrying capacity and economy are absolutely super. 137t self-weight, three-wheel drive switching to four-wheel drive, the power is still calm.
  • Eight-section 82m longest main boom in the industry, 44m jib, the Max. boom length can reach 120.5m, with fixed-length super-lifting device.
  • XCMG abandoned the single development route of stack configuration, and made continuous breakthroughs in the field of all-terrain cranes.
  • Self-disassembly and assembly of counterweight, self-disassembly and assembly of super-lifting technology, mature one-key tensioning technology for super-lifting, double-cylinder head single-cylinder bolt telescopic boom and large Key technologies such as load-independent suspension are pioneered by XCMG.
  • The XCA260C, which integrates a number of operation aids and a high-level power transmission system, is outstanding in the industry in terms of the hardware level of the whole machine!


Product Parameters:

Parameter item XCA260C
Size parameters
Overall length of the whole machine (mm) 15180
Overall width of the whole machine (mm) 3000
Overall height of the whole machine (mm) 4000
Wheelbase(mm) 2650+1650+2900+1650
Tire distance(mm) 2540/2540/2540/2540/2540
Weight parameter
Axle load(kg) 10290/10350/10350/12000/12000
Dynamic parameters
Engine model WP13.550E62/MC13.54-61
Engine model (Operating cab)
Engine rated power (kw/(r/min)) 405/1900 400/1800
Traveling parameters
Max. travel speed (km/h) ≥80
Min. stable driving speed (km/h) 1~1.5
Min. turning diameter (m) ≤18.5
Boom head Min. turning diameter (m) ≤21
Max. grade(%)
Min. ground clearance (mm) 307
Approach angle (°) 18
Departure angle (°) 14

Braking distance

(Dry and flat asphalt or concrete pavement,

When the vehicle speed is 30km/h) (m)

Fuel consumption per 100 kilometers (L) 70
Main performance parameters
Max. gradeability(%) 65
Max. rated total lifting weight (t) 260
Min. rated amplitude (m) 3
Max. lifting moment of the basic boom (kN m) 7997
Turntable tail turning radius (mm) 5250
Basic boom (m) 13.8
Forward (mm)
Chassis length (mm)
The longest main boom (m) 82
The longest main boom + jib (m) 120.5
Longest luffing jib (m)
Speed ​​of work
Max. rotation speed (r/min) ≥1.5
Full extension(s) ≤850
Amplitude time
Simultaneously put(s) ≤40
Simultaneous receipt (s) ≤40
Simultaneously put(s) ≤80
Simultaneous receipt (s) ≤40
