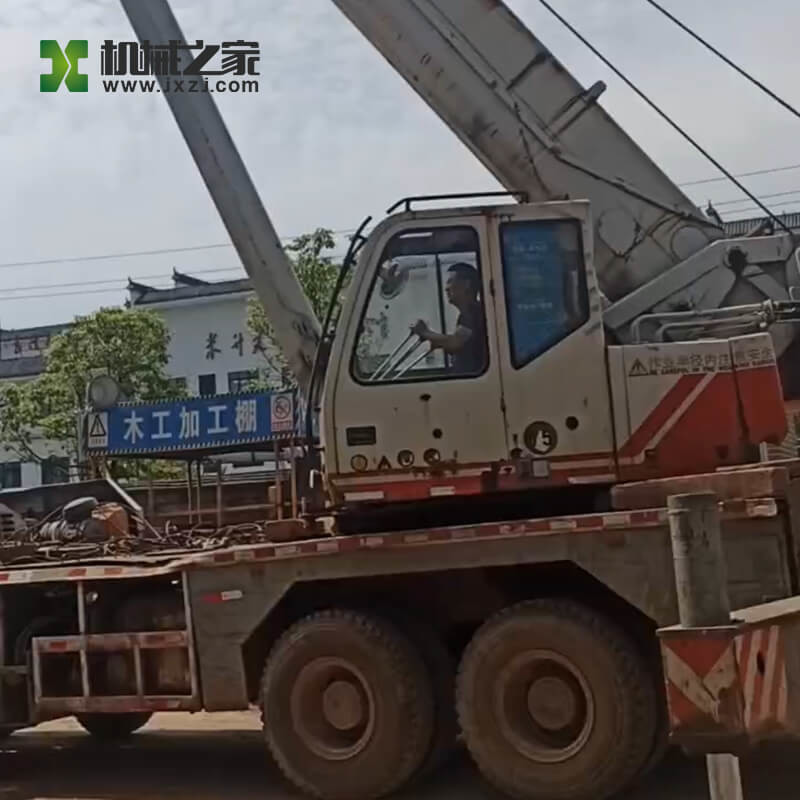

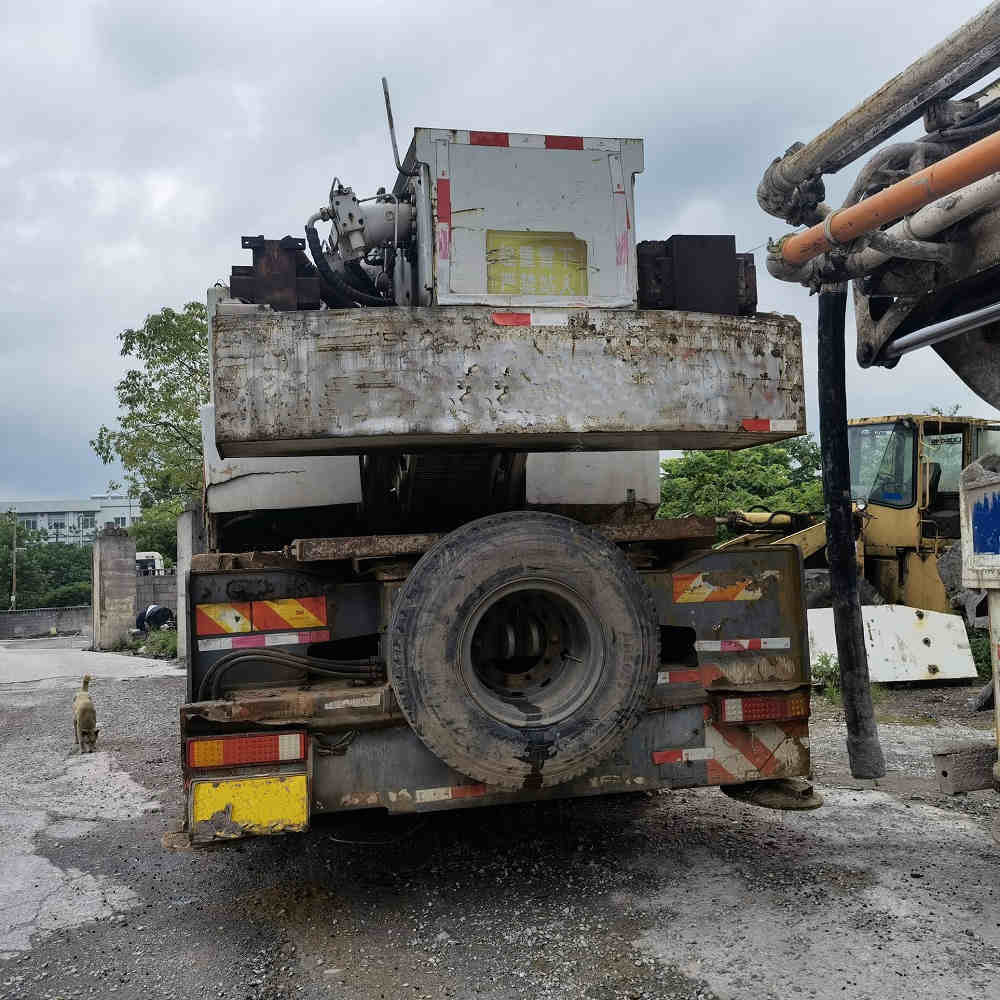

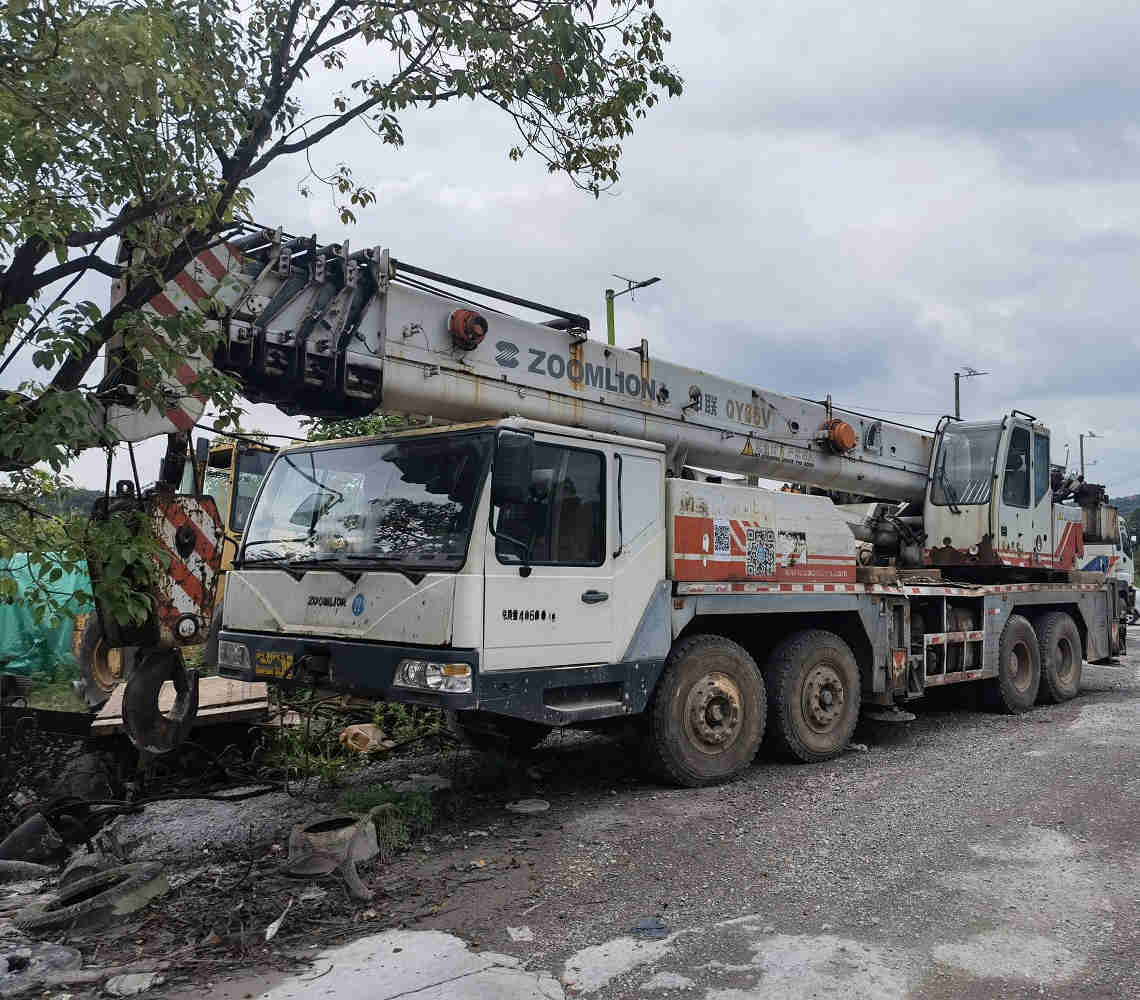

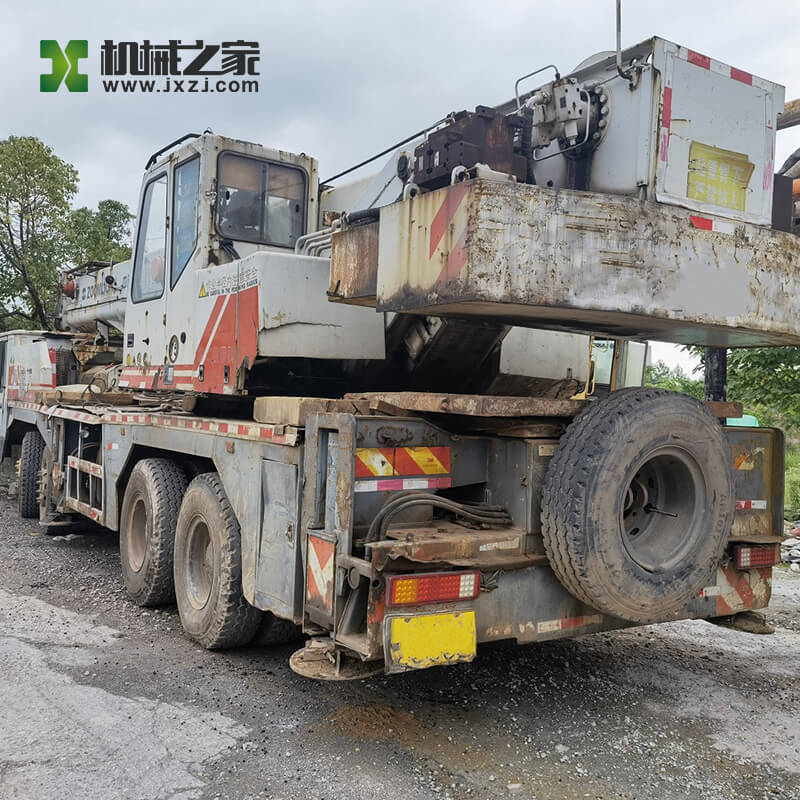

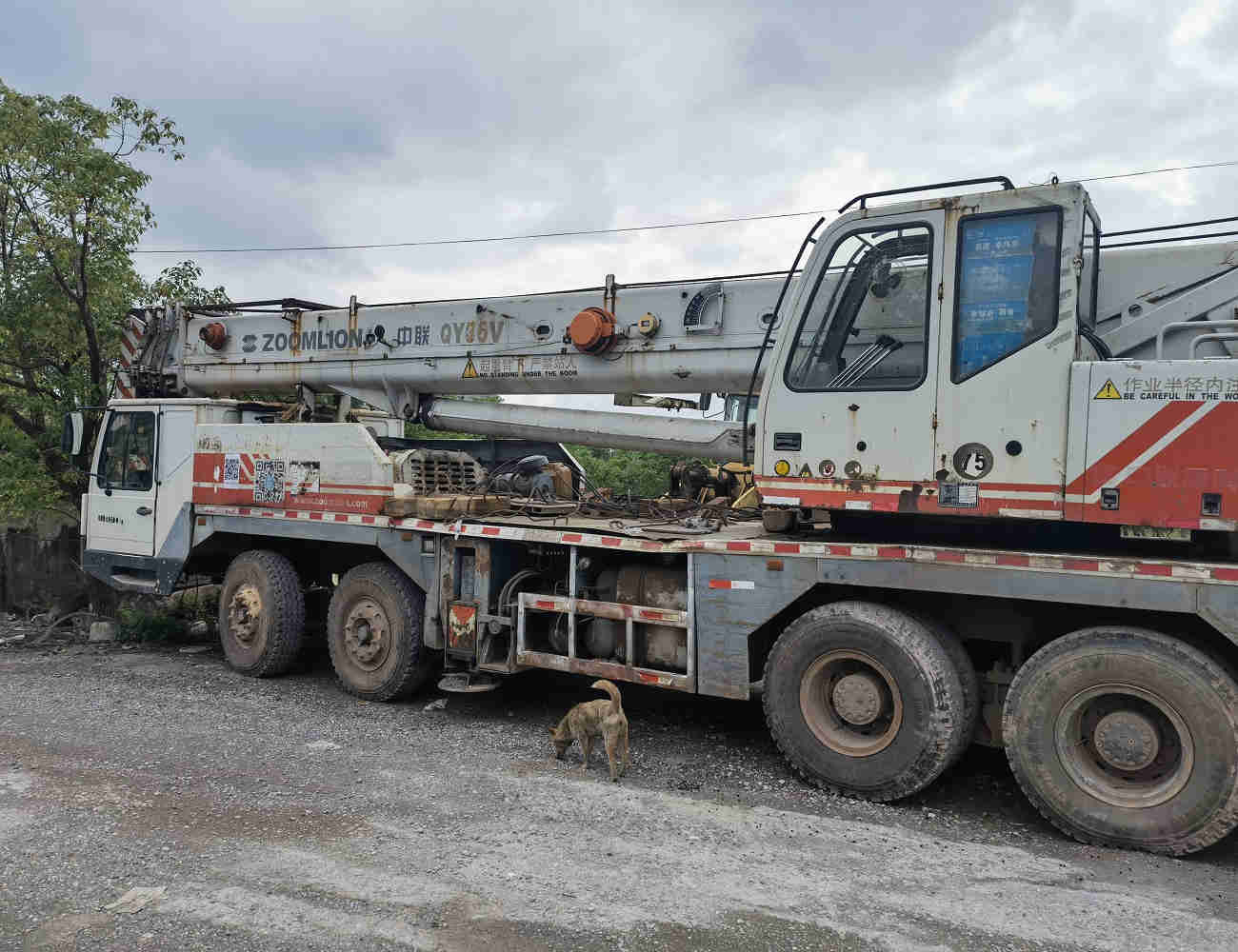

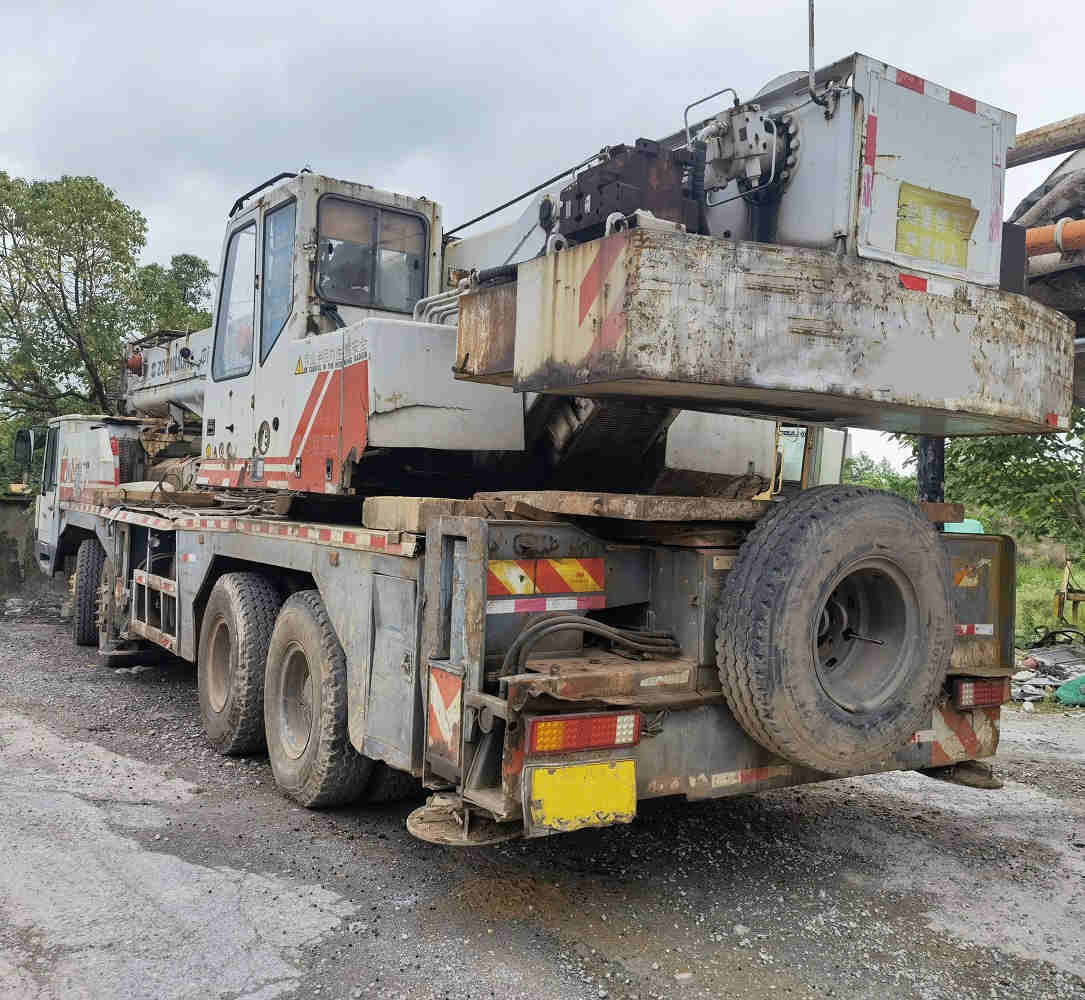

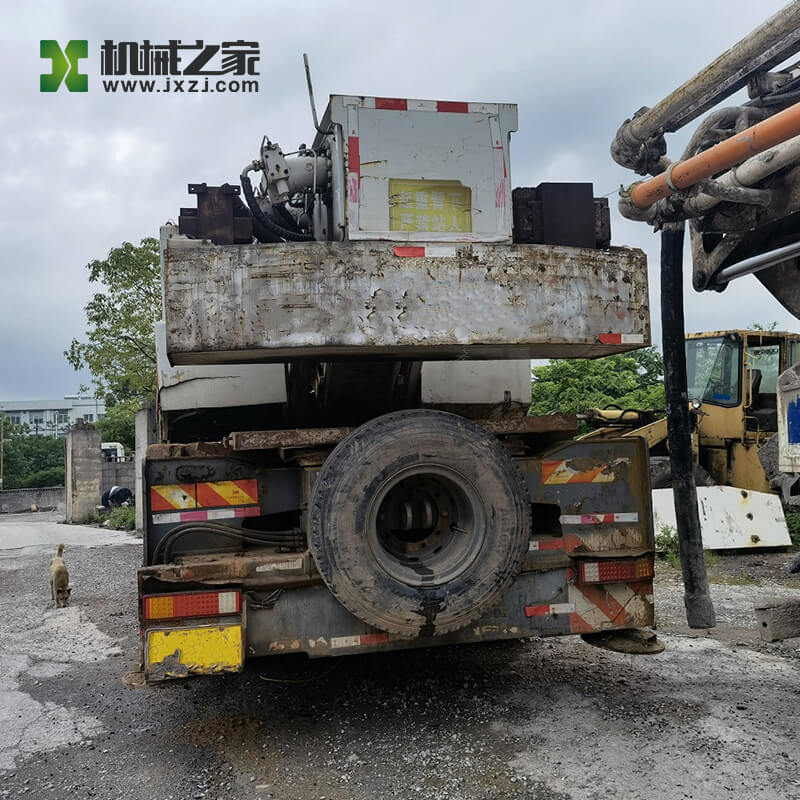

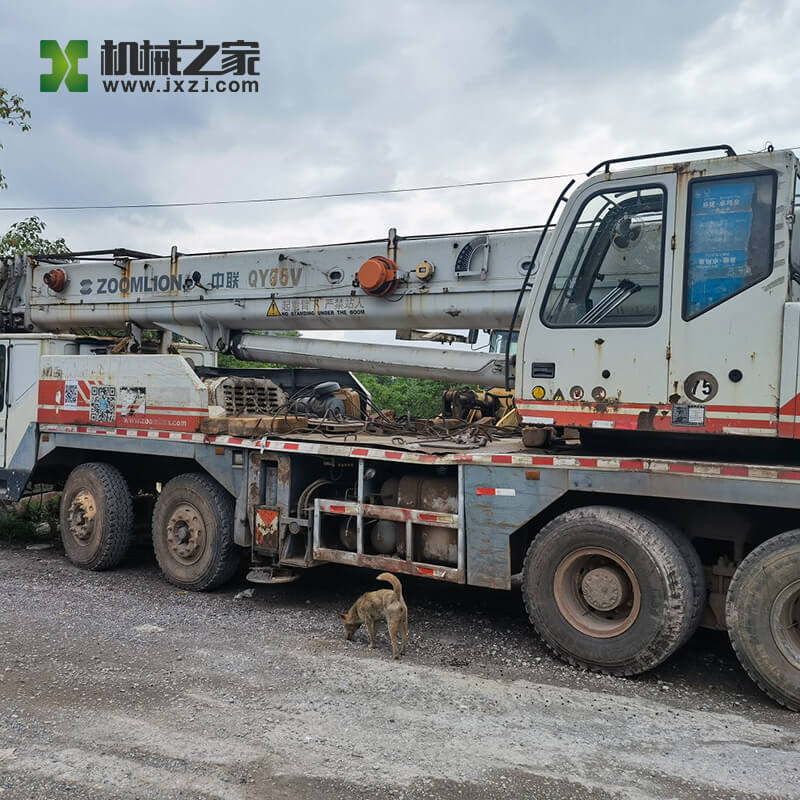

QY50V Used Zoomlion Truck Crane 2009 Second Hand Truck Mobile Crane 50 Ton
| Place of Origin | China |
|---|---|
| Brand Name | Zoomlion |
| Certification | CE, ISO9001 |
| Model Number | QY50V |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Bulk |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | Used | Maximum Lifting Height | 42.1 - 58.3m |
|---|---|---|---|
| Maximum Lifting Weight | > 50ton | Axle Number | 4 |
| Jib | 2 Section | production Date | 2009 |
| High Light | QY50V Used Zoomlion Truck Crane,2009 Used Zoomlion Truck Crane,Zoomlion Mobile Crane 50 Ton |
||
Product Description
Used Zoomlion Truck Crane Zoomlion QY50V Second Hand Truck Mobile Crane
Production Details:
|
Model NO.
|
QY50V |
Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
50000 kg | Max. Lifting Height of Jib | 42.1m |
|
Max. Gradeability
|
30% | Turning Diameter | 24m |
|
Transport Package
|
Compliant with export packaging requirements | Specification |
1330×2750×3650mm |
|
Drive Mileage
|
140000kms |
Working hours | 12000h |
|
Trademark
|
Zoomlion | Origin | China |
Zoomlion QY5OV truck crane is a new generation of high-performance products independently developed with years of experience and advanced technology. TThe performance parameters such as lifting height, main boom length, working speed and lifting capacity of this crane are all at the advanced level abroad. This product is a full-slewing, telescopic boom type, manually controlled five-section boom truck crane. The chassis adopts the company's self-made V-series four-axle special chassis, which has a wide field of vision, luxurious and comfortable decoration, emission standards of China III, 8x4 drive, hydraulic power steering, light and flexible.
The hydraulic system adopts the latest triple pump system to ensure that the working ability of each actuator can be fully exerted. Safety devices such as relief valve, balance valve, hydraulic lock, brake valve are provided to prevent the hydraulic system from being too high and to avoid Accidents caused by the rupture of dry oil pipes occur, which improves the reliability and safety of the system.
The product is equipped with a variety of safety devices such as torque limiters and a complete lighting system, which can ensure safe and reliable operation and facilitate night operations.
This Truck Crane was produced in 2009, drived more than 140000kms, and worked more than 12,000 hours, with a weight of 50T, no big repairs, no malfunction, regular maintenance, excellent performance at present.
Product Parameters:
| Item | Value | Remarks | |
| Working performance | Max. rated lifting capacity (kg) | 50000 | |
| Max. load moment of the basic boom (kN.m) | 1764 | ||
| Max. load moment of the longest main boom (kN.m) | 940.8 | ||
| Basic boom Max. lift height (m) | 11.6 | ||
| Main boom Max. lift height (m) | 42.1 | Boom deformation is not considered | |
| Max. lifting height of jib (m) | 58.3 | ||
| Working speeds | Max. hoist rope speed (main winch) (m/min) | 130 | |
| Max. hoist rope speed (auxiliary winch) (m/min) | 130 | ||
| Boom derricking up time (s) | 50 | ||
| Boom telescoping out time (s) | 95 | ||
| Max. slewing speed (r/min) | 0～2 | ||
| Traveling parameters | Top speed (km/h) | 76 | |
| Max. gradeability (%) | 40 | ||
| Min. turning diameter (m) | ≤24 | ||
| Min. ground clearance (mm) | 280 | ||
| Oil consumption/100 km (L) | 43 | ||
| Weights | Deadweight in traveling condition (kg) | 41000 | |
| Complete vehicle kerb mass (kg) | 40870 | ||
| Front axle load (kg) | 15000 | ||
| Rear axle load (kg) | 26000 | ||
| Dimensions | Dimensions (L×W×H) (mm) | 13300×2750×3650 | |
| Outriggers longitudinal distance (m) | 5.92 | ||
| Outrigger lateral distance (m) | Full extension 6.90,Half extension 4.70 | ||
| Tail turning radius (mm) | 3820 | ||
| Main boom length (m) | 11.1～42.0 | ||
| Main boom elevation (°) | -2～80 | ||
| Jib length (m) | 9.5 ,16 | ||
| Offset (°) | 0 , 30 | ||
