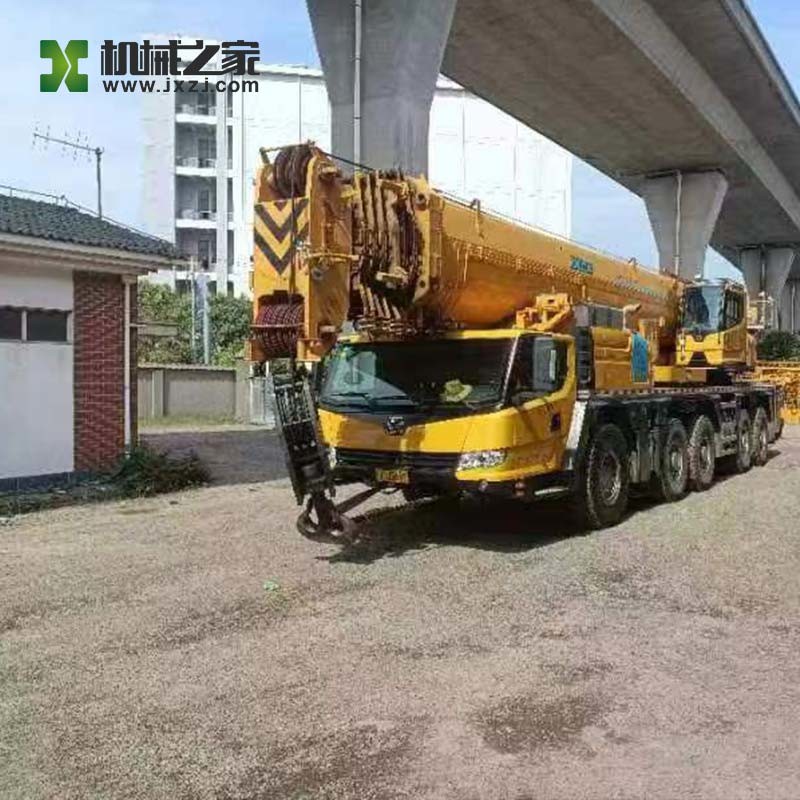

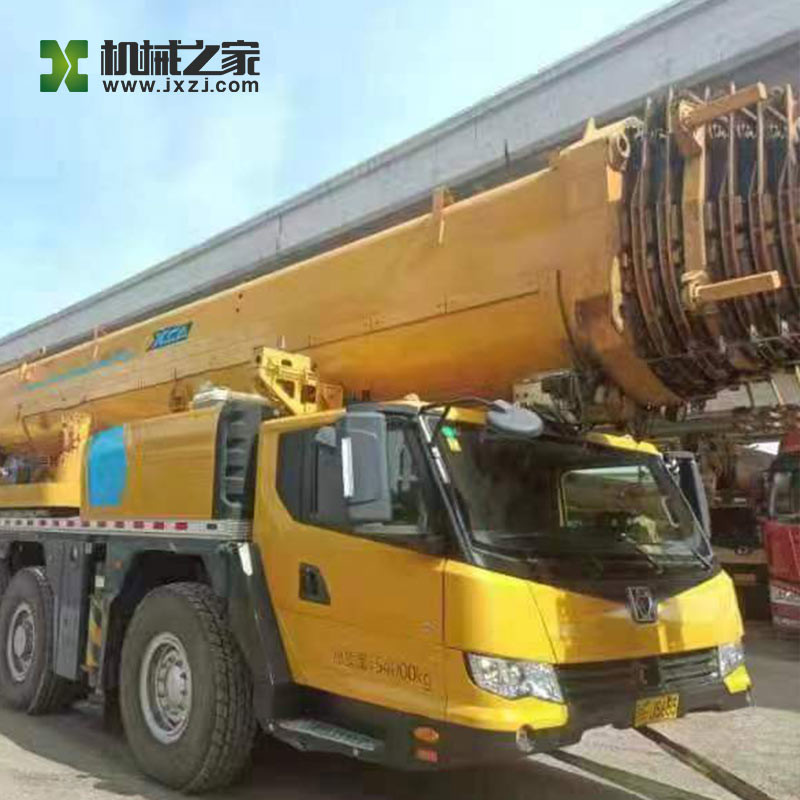

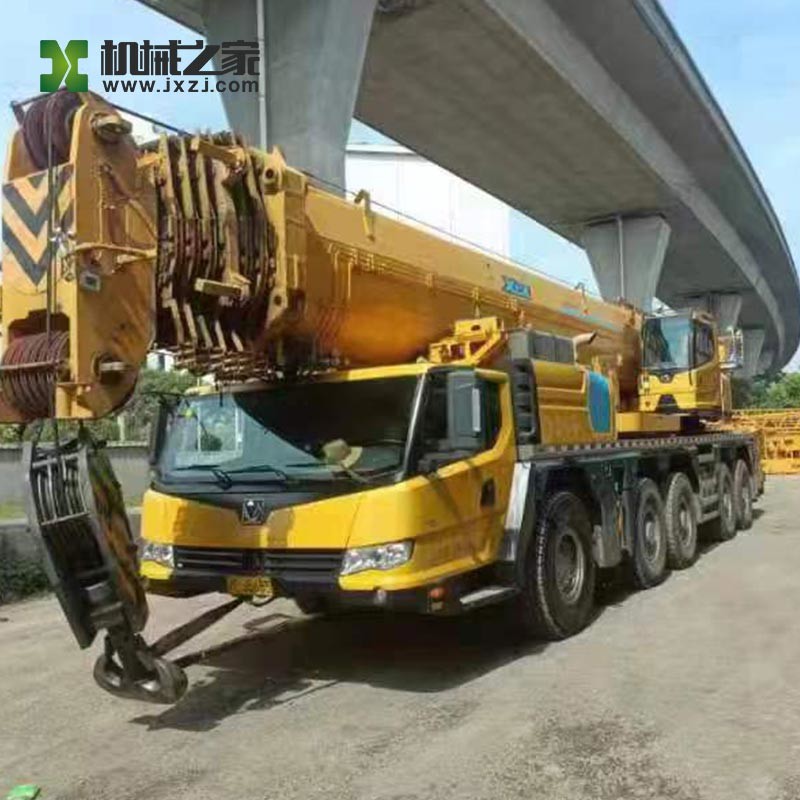

XCMG XCA260 Used Truck Cranes Second Hand Truck Mobile Crane 260ton
| Place of Origin | China |
|---|---|
| Brand Name | XCMG |
| Certification | CE, ISO9001 |
| Model Number | XCA260 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Bulk |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10PCS/M |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Status | Used | Max. Lifting Height | 13.8- 120.5m |
|---|---|---|---|
| Max. Lifting Weight | 260ton | Axle No. | 6 |
| Jib Boom | 2 Section | Production Date | 2021 |
| High Light | XCA260 Used Truck Cranes,82m Used Truck Cranes,260ton crane second hand |
||
Product Description
Used Truck Crane XCMG XCA260 Second Hand Truck Mobile Crane
Production Details:
|
Model No.
|
XCA260 |
Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
260000 kg | Max. Lifting Height of Jib | 82m |
|
Max Gradeability
|
65% | Working Diameter | 18.5m |
|
Transport Package
|
Complies with Min. export packaging requirements | Specification |
15180×3000×4000mm |
|
Driving Mileage
|
100000M | Working hours | 800h |
|
Trademark
|
XCMG | Place of Origin | China |
|
HS Code
|
Supply Capacity | 10 Units/ Month |
- XCMG XCA260C all-terrain crane XCMG XCA260C all-terrain crane is an all-terrain crane with a rated lifting capacity of 180~300t manufactured by XCMG.
- Adopts high-end first-line brand power transmission parts:
- 550 horsepower engine + 12-speed automatic transmission + high-load vehicle, collocation of the bridge, the four-axle drive is mechanically driven.
- With the excellent layout of the whole machine and deeply matched transmission parts, the driving force is maximized, and the Max. climbing performance is as high as 60%, reaching the highest level in the industry. Not to mention higher configuration, even the same configuration, XCMG power matching is better!
- The XCA260C has multiple transition modes:
- 55t announcement status long-distance transition: without 3-8 main boom and jib
- 69.8t short-distance transition: carry all main arms, movable outriggers, etc.
- 81.5t short-distance transition: carry all main arms, movable outriggers, superlift
- 137.8t short-distance transition: carry all main arms, movable outriggers, and 68t counterweight
- 137t can't run under its own weight? The three-wheel drive is switched to the four-wheel drive, and the power is still calm. Eight-section 82m longest main boom in the industry, 44m jib, the Max. boom length can reach 120.5m, with fixed-length super-lifting device.
- XCMG abandons the single development route of stack configuration, and continues to make breakthroughs in the field of all-terrain cranes. Self-disassembly and assembly of counterweight, self-disassembly and assembly of super-lifting technology, mature one-key tensioning technology for super-lifting, double-cylinder head single-cylinder bolt telescopic boom and large Key technologies such as load-independent suspension are pioneered by XCMG.
- The XCA260C, which integrates a number of operation aids and a high-level power transmission system, is outstanding in the industry in terms of the hardware level of the whole machine!
Product Parameters:
| Parameters item | XCA260C |
| Parameter item | XCA260C |
| Size parameters | |
| Overall length of the whole machine (mm) | 15180 |
| Overall width of the whole machine (mm) | 3000 |
| Overall height of the whole machine (mm) | 4000 |
| Wheelbase(mm) | 2650+1650+2900+1650 |
| Tire disdance(mm) | 2540/2540/2540/2540/2540 |
| Weight parameter | |
| Axle load (kg) | 10290/10350/10350/12000/12000 |
| Dynamic parameters | |
| Engine model | WP13.550E62/MC13.54-61 |
| Engine model (operating cab) | |
| Engine rated power (kw/(r/min)) | 405/1900 400/1800 |
| Traveling parameters | |
| Traveling | |
| Max. travel speed (km/h) | ≥80 |
| Min. stable driving speed (km/h) | 1～1.5 |
| Turn | |
| Min. turning diameter (m) | ≤18.5 |
| Boom head Min. turning diameter (m) | ≤21 |
| Max. grade(%) | |
| Min. ground clearance (mm) | 307 |
| Approach angle (°) | 18 |
| Departure angle (°) | 14 |
|
Braking distance (Dry and flat asphalt or concrete pavement, When the vehicle speed is 30km/h) (m) |
≤10 |
| Fuel consumption per 100 kilometers (L) | 70 |
| Main performance parameters | |
| Max. grade(%) | 65 |
| Max. rated total lifting weight (t) | 260 |
| Min. rated amplitude (m) | 3 |
| Max. lifting moment of the basic arm (kN m) | 7997 |
| Turntable tail turning radius (mm) | 5250 |
| Legs | |
| Basic arm (m) | 13.8 |
| Forward (mm) | |
| Chassis length (mm) | |
| The longest main boom (m) | 82 |
| The longest main boom + jib (m) | 120.5 |
| Longest luffing jib (m) | |
| Speed of work | |
| Max. rotation speed (r/min) | ≥1.5 |
| Full extension(s) | ≤850 |
| Amplitude time | |
| Simultaneously put(s) | ≤40 |
| Simultaneous receipt (s) | ≤40 |
| Simultaneously put(s) | ≤80 |
| Simultaneous receipt (s) | ≤40 |
