QY40KC XCMG Used Truck Cranes Second Hand Truck Mobile Crane 35 Ton

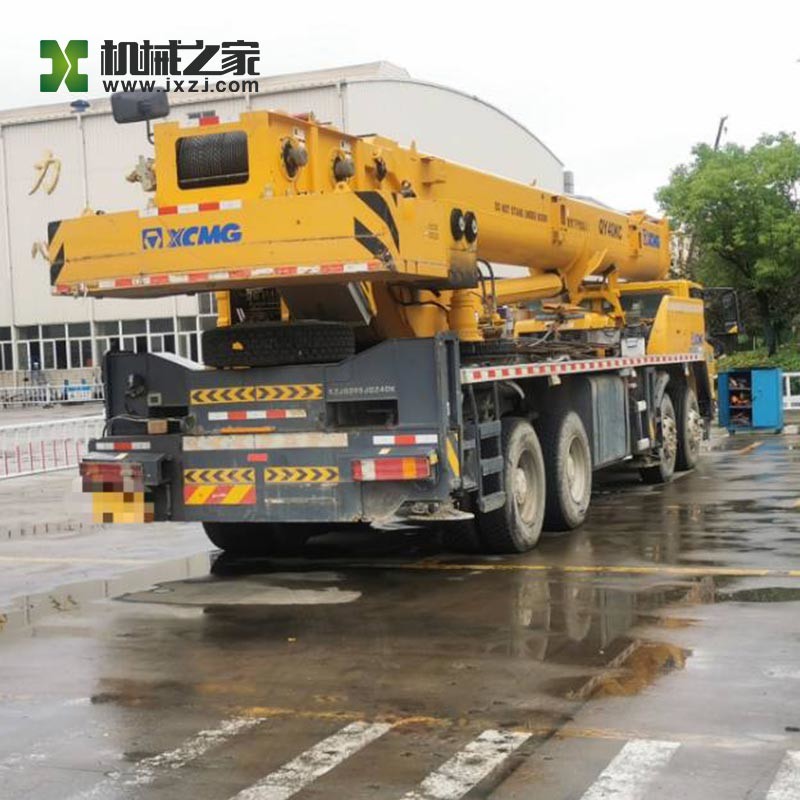

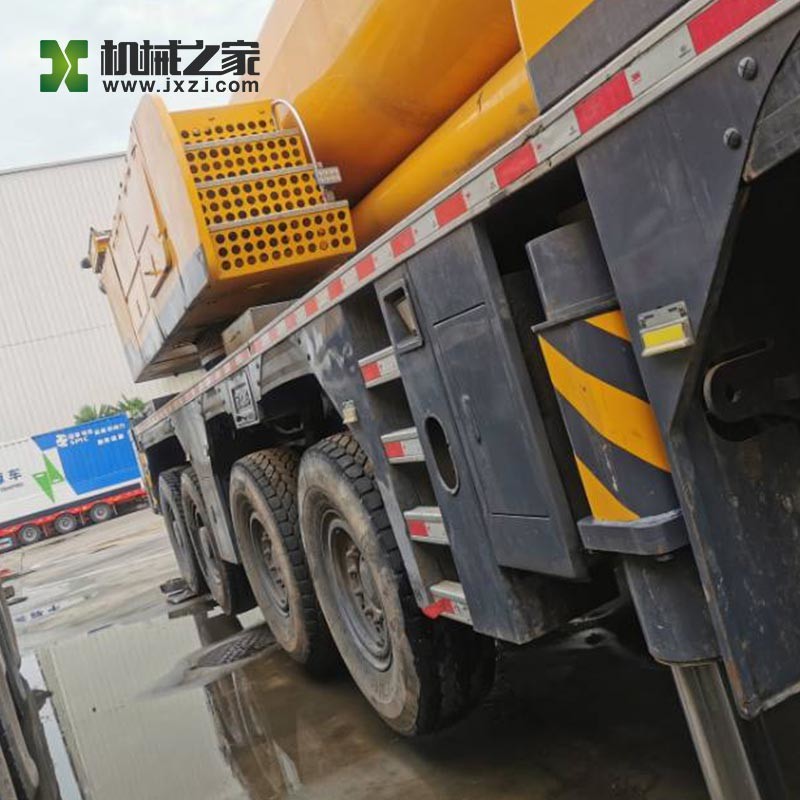

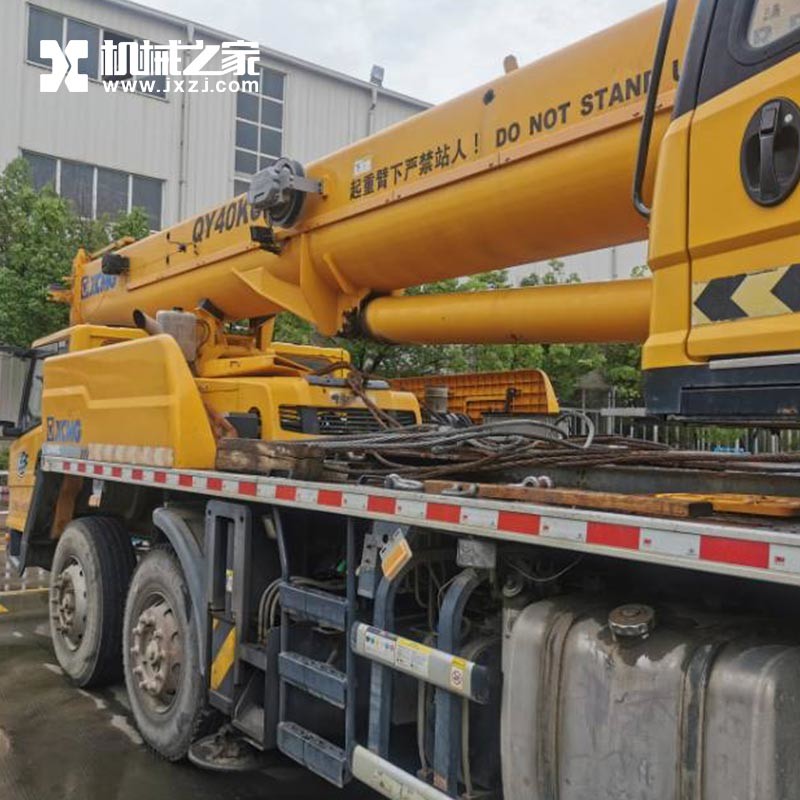

Used Truck Crane XCMG QY40KC Second Hand Truck Mobile Crane

Production Details:

1. Design, originality

Look at the bright and delicate paint effect of the whole car, the fully wrapped valve group, the hydraulic oil pipes and the wiring layout that are neat to cure the obsessive-compulsive disorder. In the essence of the company, there is no sloppy water, and it implements the policy of "leading technology and not destroying it, making it into handicrafts", and has the unique quality design of industry leaders.

2. Lifting performance under super high frequency conditions

In the product upgrade, XCMG focuses on the essential technology of cranes. The first is to create excellent lifting capacity. Today, the QY40KC-1 boom is still in the first echelon. The longest main boom at the same level is 45m, and the boom length is longer than that of the previous generation. 1m, the Max. lifting moment is 1600kN.m, and the Max. lifting capacity of the full outrigger is 9t.

Secondly, relying on the Internet of Things platform, analyze the operation data of 40-ton products in recent years, and focus on improving the performance of high-frequency working conditions from the precise design and positioning: the basic boom, the short and medium boom, the medium and long boom, and the full extension boom are all leading in all directions in the industry.

3. Gold transmission, surging power

Appearance is the best: the engine with a Max. power of 341 hp in the same class is paired with a Shaanxi gear 9-speed gearbox, and the double-reduction axle is suitable for high-load tires. This golden transmission system maximizes the power and ensures the economy at the high level. Equipped with a special G-type chassis for off-road four-axles, the layout is compact, the bearing capacity is large, the longitudinal passing angle is greater than 25°, the climbing ability is high, the fuel consumption is low, and the power and economy are a win-win situation.

Product Parameters:

Parameter item	QY40KC
Dimensions	*
Overall length of the whole machine (mm)	13745
Overall width of the whole machine (mm)	2800
Overall height of the whole machine (mm)	3560
Wheelbase(mm)	1470+4050+1350
Tire distance(mm)	2322/2059
Weight parameter	*
Deadweight in traveling condition (kg)	39400
Axle load(kg)	6890/6890/12810/12810
Dynamic parameters	*
Engine model	SC9DF340Q5
Engine rated power (kw/(r/min))	251/1900
Engine rated torque (N.m/(r/min))	1450/1100-1400
Traveling parameters	*
Traveling	*
Max. travel speed (km/h)	≥90
Min. stable driving speed (km/h)	2.5～3
Turning	*
Min. turning diameter (m)	≤24
Boom head Min. turning diameter (m)	≤29
Max. grade(%)	≥45
Min. ground clearance (mm)	293
Approach angle (°)	19
Departure angle (°)	15
Braking distance (m)	≤10
Fuel consumption per 100 kilometers (L)	35
Main performance parameters	*
Max. rated lifting weight (t)	40
Min. rated amplitude (m)	3
The Max. lifting moment of the basic arm (kN m)	1574
Turntable tail turning radius (mm)	3840 (balance weight) 3660 (sub volume)
Outrigger	*
Longitudinal (m)	5.975
Horizontal (m)	7.1
Max. lift height	*
Basic boom (m)	11.3
The longest main boom (m)	43.6
The longest main boom + jib (m)	60.3
The longest main boom + jib + extension	-
Boom length	*
Basic boom (m)	11.3
Longest main boom (m)	44
Longest main boom + jib	60
The longest main boom + jib + extension section (m)	-
Working speed	*
Max. slewing speed (r/min)	≥2.5
Lifting speed	*
Main hoisting mechanism	≥130 (single rope, fourth layer, no load)
Auxiliary lifting mechanism	≥130 (single rope, fourth layer, no load)
Boom extension time	*
Full extension(s)	≤80
Full shrink	-
Amplitude time	*
Full lift (s)	≤40
Full arm drop(s)	-
Outrigger retraction--horizontal	*
Simultaneously put -- horizontal (s)	≤35
At the same time closing -- horizontal (s)	≤30
Outrigger retraction-vertical	*
Simultaneously put(s)	≤35
Simultaneous receipt (s)	≤30
