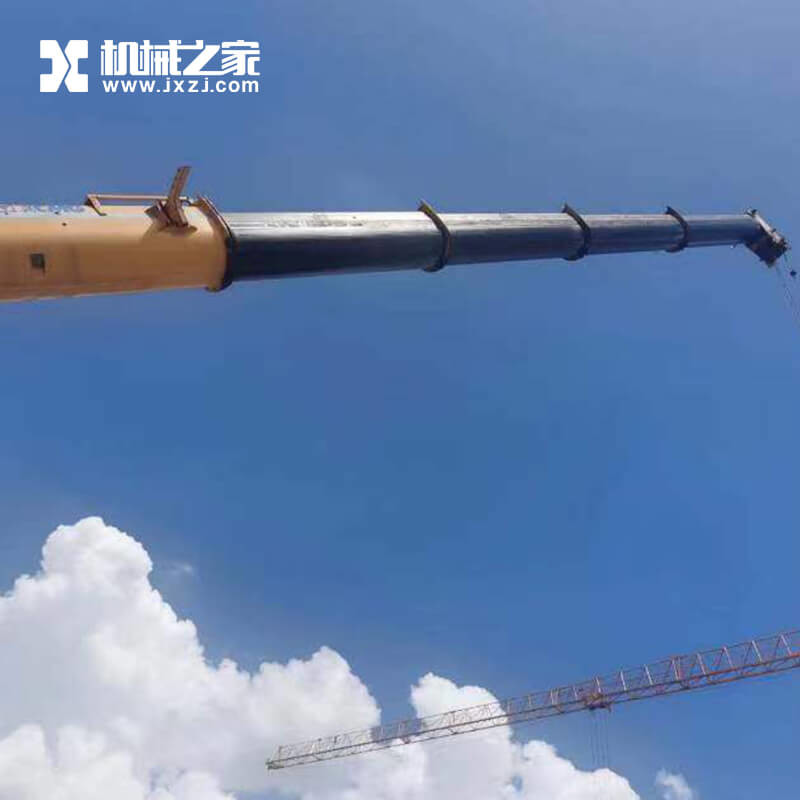

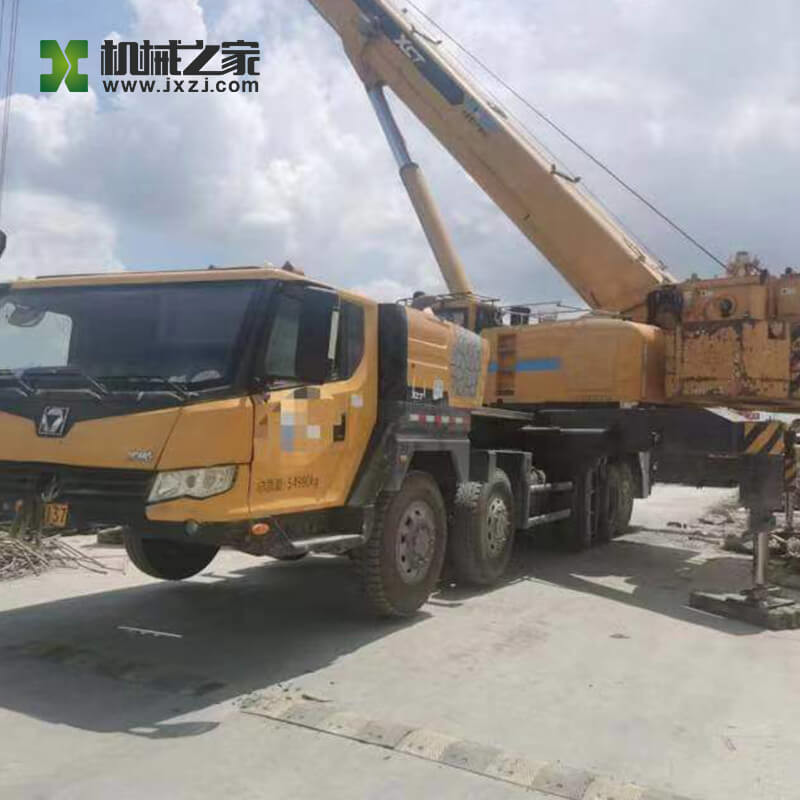

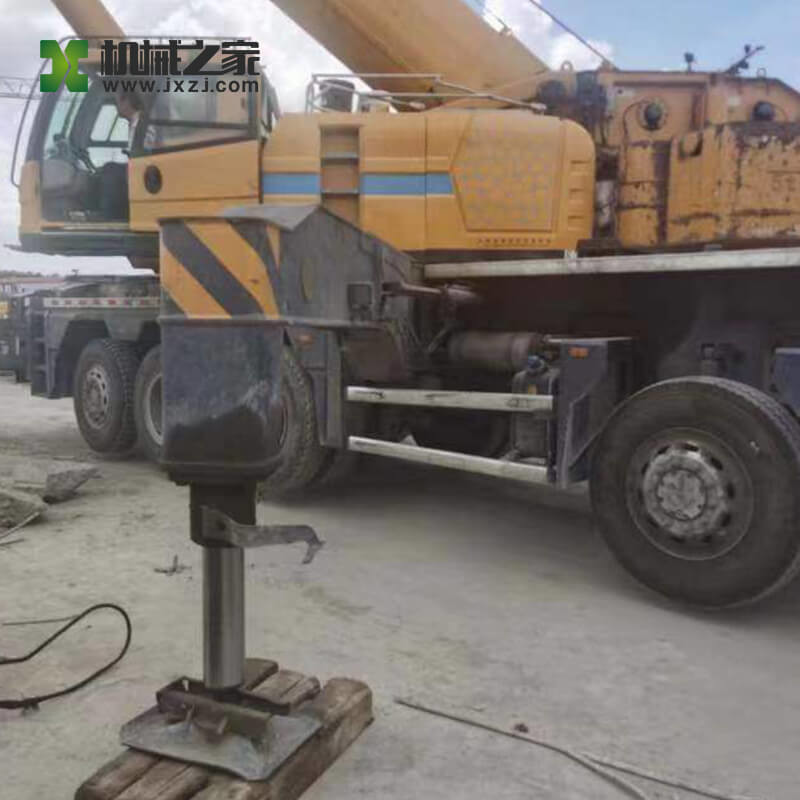

Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane

  • Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane
  • Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane
  • Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane
Place of Origin China
Brand Name XCMG
Certification CE, ISO9001
Model Number XCT100
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T
Supply Ability 10PCS/M

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 13.8 - 65m
Maximum Lifting Weight 100ton Axle Number 4
Jib 2 Section  production Date 2017
Leave a Message
Product Description

Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane



Production Details:



Model No.



XCT100

 Boom Type Telescopic



Max. Rated Lifting Capacity



 100000 kg Max. Lifting Height of Jib 65m



Max Gradeability



 45% Working Diameter 23m



Transport Package



 Complies with Min. export packaging requirements Specification

15600×3000×3870MM



Driving Mileage



 340000M Working hours 3981h



Trademark



 XCMG Place of Origin China



HS Code



   Supply Capacity 10 Units/ Month





  • XCMG XCT100 is known as a hundred-ton-class legendary boutique. Six-section 65m main boom, the Max. boom length can reach 99.5m, industry performance;
  • five-axle off-road chassis, dual-mode time-sharing switching drive system, free switching between three-wheel drive and four-wheel drive, perfect integration of power and economy;
  • original cylinder Controlled multi-mode follow-up steering system, the Min. turning diameter is only 20m, with the flexibility of all-terrain products;
  • the new energy-saving hydraulic system integrates ECO energy-saving control, and the operation is more economical;
  • the industry's first 100-ton hydraulic single-engine system saves 40% in annual maintenance costs %;
  • It can carry a 22.5t balance weight for short-distance transitions, which is efficient and convenient.



Product Parameters:

Item XCT100
Dimensions
Overall length of the whole machine (mm) 15600
Overall width of the whole machine (mm) 3000
Overall height of the whole machine (mm) 3870
Wheelbase(mm) 1920+3500+1420+1505
Tire distance(mm) 2449/2449/2315/2315/2449
Weight parameter *
Deadweight in traveling condition (kg) 54990
Axle load(kg) 10000+10000+13000+13000+9000
Dynamic parameters *
Engine model

(Operating cab) Weichai WP6G240E330 or

Mercedes-Benz OM906LA.E3A/2 (Driving Cab)

WP12.430E50 or ISM11E5 440
Engine rated power (kw/(r/min))

(Operating cab) 176/2300 or 190/2200 (Driving Cab)

316/1900 or 324/1900
Engine rated torque (N.m/(r/min))

(Operating cab) 860/(1200-1700) or 1000/(1200-1600)

(Driving Cab) 2060/(1100-1400) or 2080/1200
Traveling parameters *
Traveling *
Max. traveling speed (km/h) 90
Min. stable driving speed (km/h) 2.5～3
Turning *
Min. turning diameter (m) 23
Boom head Min. turning diameter (m) 26.8
Max. gradeability(%) 45
Min. ground clearance (mm) 326
Approach angle (°) 18
Departure angle (°) 13
Braking distance (m) ≤10
Oil consumption per 100 kilometers (L) 70 (Weichai)/65 (Xikang)
Main performance parameters *
Max. rated total lifting weight (t) 100
Min. rated amplitude (m) 3
Max. load moment of the basic boom (kN m) 4704
Turntable tail turning radius (mm) 4970
Outrigger *
Longitudinal (m) -
Horizontal (m) -
Max. lift height *
Basic boom (m) 13.9
The longest main boom (m) 63.3
The longest main boom + jib (m) 92.6
The longest main boom + jib + extension -
Boom length *
Basic boom (m) 13.5
The longest main boom (m) 64
Longest main boom + jib 82.1
The longest main boom + jib + extension section (m) 96.1
Speed ​​of work *
Max. rotation speed (r/min) 2
Lifting speed *
Main hoisting mechanism 135
Auxiliary hoisting mechanism 105
Boom extension time *
Full extension(s) 480
Full shrink -
Amplitude time *
Full lift (s) 60
Full boom drop(s) -
Outrigger retraction--horizontal *
Simultaneously put -- level (s) 40
At the same time closing -- level (s) 40
Outrigger retraction-vertical *
Simultaneously put(s) 50
Simultaneous receipt (s) -

Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane 0Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane 1
