Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane

  • Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane
  • Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane
Place of Origin China
Brand Name XCMG
Certification CE, ISO9001
Model Number QY90K
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T
Supply Ability 10PCS/M

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 13.8 - 71m
Maximum Lifting Weight 90ton Axle Number 5
Jib 2 Section  production Date 2014
Leave a Message
Product Description

Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane



Production Details:



Model No.



QY90K

 Boom Type Telescopic



Max. Rated Lifting Capacity



 70000 kg Max. Lifting Height of Jib 55m



Max Gradeability



 45% Working Diameter 23m



Transport Package



 Complies with Min. export packaging requirements Specification

14700×2800×3900mm



Driving Mileage



 600000M Working hours 6000h



Trademark



 XCMG Place of Origin China



HS Code



   Supply Capacity 10 Units/ Month





XCMG K series 90-ton classic products, six-section elliptical boom, five-axle rough terrain crane chassis, combined counterweight, compact structure and reasonable layout.



The lifting performance and driving performance are comprehensive. "U"-shaped boom, plug-in boom head, extended embedded slider, super lifting capacity. Proprietary single-cylinder bolt telescopic technology, the telescopic system is fully upgraded to improve active safety. The load-sensing system controlled by PLC bus has smooth control performance. Telescopic slow control technology. Adopt digital bus control system, strong anti-interference ability and low failure rate. The main structural parts adopt automatic welding technology, with zero welding defects and high reliability. The on-board fault diagnosis system makes the operation safer and more reliable.



Product Parameters:

Dimensions



Unit



QY90K


Overall length mm 14700
Overall width mm 2800
Overall height mm 3900
Weights 　 　
Deadweight in traveling condition kg 53000
Front axle load (1, 2, 3 axles) kg 9000/9000/13000
Rear axle load (4, 5 axles) kg 13000/9000
Dynamic parameters 　 　
Engine model 　 TAD720VE
OM457LAIII/9
Engine rated power kW/(r/min) 174/2300
315/1900
Engine rated torque N.m/(r/min) 845/1400
2100/1100
Traveling parameters 　 　
Top speed km/h 80
Min. turning diameter m 23
Min. ground clearance mm 315
Approach angle ° 20
Departure angle ° 16
Max. gradeability % 45
Oil consumption per 100 km L 60
Main performance parameters 　 　
Max. rated lifting capacity t 90
Min. rated amplitude m 3
Turntable tail turning radius m 4.51
Max. load moment kN.m 3234
Basic boom m 12.3
Longest main boom m 55
Longest main boom + jib m 71
Longitudinal distance of outriggers m 7.5
Outrigger lateral distance m 7.1
Working speed parameters 　 　
Boom luffing time s 75
Boom full extension time s 600
Max. rotation speed r/min ≥2

Max. speed of main hoisting mechanism

(single rope) (no load)

 m/min ≥120

Max. speed of auxiliary hoisting mechanism

(single rope) (no load)

 m/min ≥85

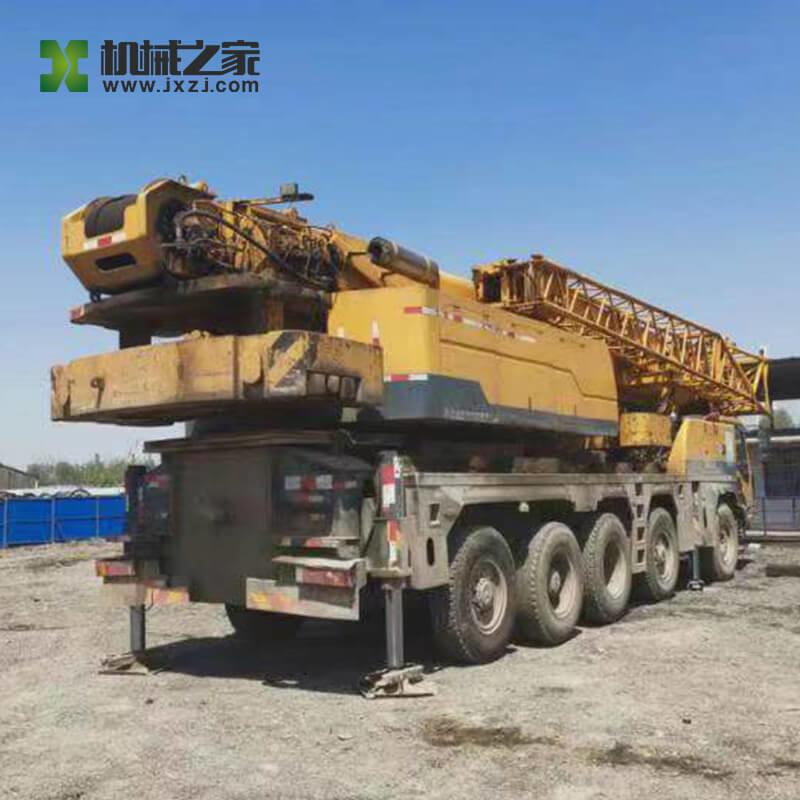

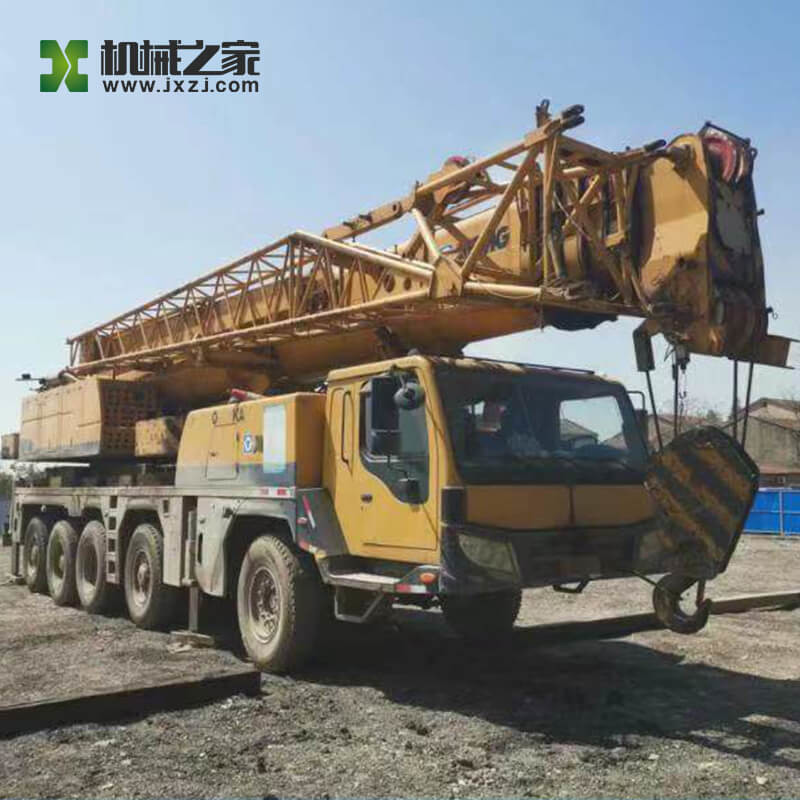

Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane 0Used Truck Crane XCMG QY90K Second Hand Truck Mobile Crane 1
