95ton Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane

  • 95ton Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane
  • 95ton Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane
  • 95ton Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane
Place of Origin China
Brand Name Zoomlion
Certification CE, ISO9001
Model Number ZTC950V
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 14 -87.5m
Maximum Lifting Weight 95ton Axle Number 5
Jib 6 Section  production Date 2018
High Light

95ton Used Zoomlion Truck Crane

,

Second Hand Zoomlion Truck Crane

,

ZTC950V
Leave a Message
Product Description

Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane

Production Details:


Model No.


 ZTC950V Boom Type Telescopic


Max. Rated Lifting Capacity


 950000 kg Max. Lifting Height of Jib 64m


Max Gradeability


 40% Working Diameter 23m


Transport Package


 Complies with Min. export packaging requirements Specification 15400×3000×3950MM


Driving Mileage


 10000M Working hours 1481h


Trademark


 Zoomlion Place of Origin China


HS Code


   Supply Capacity

10 Units/ Month



6-section 63-meter oval main boom, 3-section 24.5-meter jib,**Maximum lifting height is 87.5 meters;
Industry classic gold transmission chain, strong power, mature and reliable, good passability; reserved space for 10t bottom counterweight and two truss arms (17.5m) that can be attached to the vehicle to reduce the cost of use; standard reversing radar, main winch monitoring system And visual reversing image, safe and reliable.

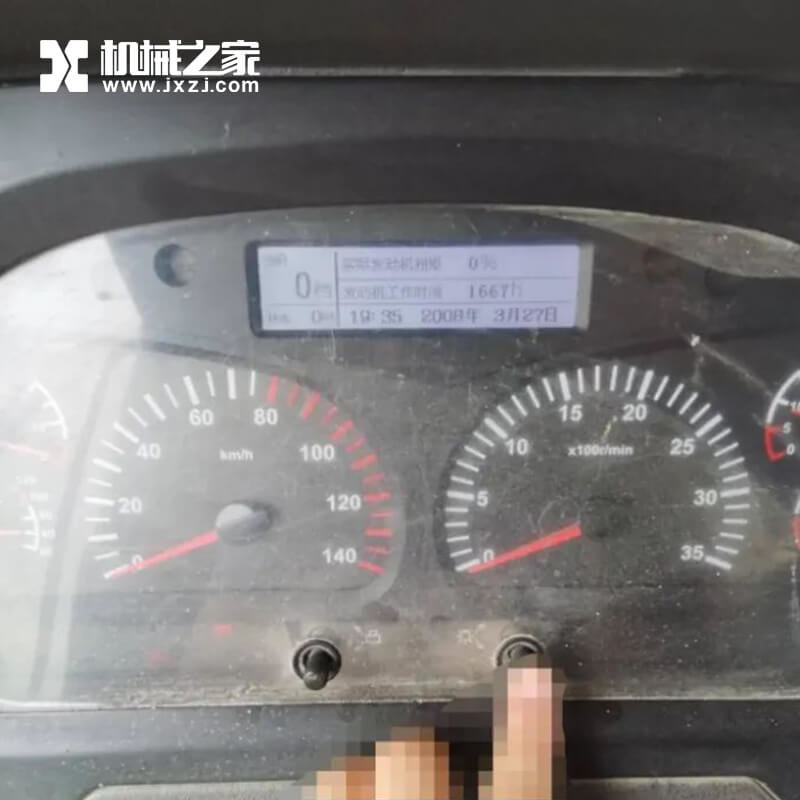

This machine was manufactured in April 2018, worked 1667 hours, 95 tons of 6-section boom truck crane, Euro 5 emission, original format original paint of the whole vehicle, no repairs, one set of counterweight, two-section jibs, three hooks (70t , 25t, 7t), the product has excellent performance and is your best choice.

Product Parameters:

Item


Value


Remarks


Working performance

 Max. rated lifting capacity (Kg) 95000 3m range
Max. load moment of the basic boom (KN.m) 4000 5m range
Max. load moment of long main boom (KN.m) 1860 30m range
Basic boom max. lifting height (m) 14
Main boom max. lifting height (m) 64

The boom deformation is not considered, and
the value in brackets is the value of the standard jib
Jib max. lifting height (m) 80.5/ (87.5)
Working speeds Max. hoist rope spee (main winch) (m/min) 110 Reel fifth layer
Max. hoist rope spee (auxiliary winch) (m/min) 75 Reel third layer
Boom derricking up time (s) 70
Boom telescoping out time (min) 13
Max. slewing speed (r/min) 1.5

Traveling parameters



 Max. use altitude (m) 2000
High travel speed (Km/h) 75
Max. gradeability (%) 40
Min. turning diameter (m) 23
Min. ground clearance (mm) 300
Limits for exhaust pollutants and smoke Conform to related standards

GB3847-2005
GB17691-2005 (Euro V)
Oil consumption per 100 km (L) 70
Weights Deadweight in traveling condition (Kg) 54900

In the driving state, the jib, 25t hook, 7t auxiliary hook,
auxiliary winch mechanism (including auxiliary coil wire
rope) and movable counterweight of the crane cannot
be driven with the vehicle and need to be disassembled;
with arm tip pulley, 70t crane.
Complete vehicle kerb mass (Kg) 54705
Ⅰ, Ⅱ axle load (Kg) 9950/9950
IV, V, VI axle load (Kg) 25100 (Dual axis) /9900
95ton Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane 095ton Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane 195ton Used Zoomlion Truck Crane Zoomlion ZTC950V Second Hand Truck Mobile Crane 2
