Used Truck Mobile Zoomlion 25 Ton Crane ZLJ5322JQZ25V Second Hand

  • Used Truck Mobile Zoomlion 25 Ton Crane ZLJ5322JQZ25V Second Hand
  • Used Truck Mobile Zoomlion 25 Ton Crane ZLJ5322JQZ25V Second Hand
Place of Origin China
Brand Name Zoomlion
Certification CE, ISO7501
Model Number ZLJ5322JQZ25V
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 11 - 47m
Maximum Lifting Weight 25ton Axle Number 3
Jib 2 Section  production Date 2016
High Light

Used Zoomlion 25 Ton Crane

,

Second Hand Zoomlion 25 Ton Crane

,

ZLJ5322JQZ25V
Leave a Message
Product Description

Used Zoomlion Truck Crane Zoomlion ZLJ5322JQZ25V Second Hand Truck Mobile Crane



Production Details:



Model No.



ZLJ5322JQZ25V

 Boom Type Telescopic



Max. Rated Lifting Capacity



 25000 kg Max. Lifting Height of Jib 39m



Max Gradeability



 35% Working Diameter 23m



Transport Package



 Complies with Min. export packaging requirements Specification

12700×2500×3450mm

0 × 3520MM



Driving Mileage



 20000M Working hours 7000h



Trademark



 Zoomlion Place of Origin China



HS Code



   Supply Capacity 10 Units/ Month



This product is a full-slewing, telescopic boom type, hydraulic proportional control five-section boom truck crane. The chassis adopts the company's self-made full-drive three-axle special chassis, which is discharged from Guochuan and has a wide field of vision. Simple and elegant decoration, 6x4 drive.



This product adopts the latest hydraulic proportional reversing valve with load feedback and quadruple gear pump system. Equipped with relief valve, balance valve, hydraulic lock, brake valve and other safety devices. In order to prevent the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe, ensure that the working ability of each actuator can be fully utilized. Improve the reliability and security of the system.



The product is equipped with a variety of safety devices such as torque limiters and a complete lighting system, which can ensure the safety and reliability of the work and facilitate night work.

The vehicle's exhaust emissions comply with the European Stage 3 emission standards (Euro III), and its safety devices meet the requirements of CCC certification.



This product was manufactured in June 2016, with five-section boom, jib, two hooks, excellent performance, is a very widely used model.



Product Parameters:

Item Value Remarks
Working performance Max. rated lifting capacity (kg) 25000
Max. load moment of the basic boom (kN.m) 980
Max. load moment of the longest main boom (kN.m) 494
Max. lifting height of the basic boom (m) 11.0
Max. lifting height of main boom (m) 39

Boom deformation is not considered
Max. lifting height of jib (m) 47.0
Working Speeds Max. speed of single rope (main winch) (m/min) 120 reel fourth layer
Max. speed of single rope (auxiliary winch) (m/min) 170 reel second layer
Boom derricking up time (s) 40
Boom telescoping out time (s) 80
Max. slewing speed (r/min) 0～2.2
Traveling parameters Max. travel speed (km/h) 78
Max. grade (%) 37
Min. turning diameter (m) 22
Min. ground clearance (mm) 220
Limits for exhaust pollutants and smoke Conform to related standards

GB3847-2005

GB17691-2005 Phase III
Oill consumption per 100 km (L) 45
Weights Deadweight in traveling condition (kg) 31700
Complete vehicle kerb mass (kg) 31570
Front axle load (kg) 6900
Rear axle axle load (kg) 24800
Dimensions Dimensions (L×W×H) (mm) 12700x2500x3450
Longitudinal distance of outriggers (m) 5.36
Outrigger lateral distance (m) 6.1
Main boom length (m) 10.4~39.2
Main boom elevation angle (°) -2～80
Jib length (m) 8
Offset (°) 0 , 30
Chassis Model zlj5325
Type Class II
Engine   Model WP10.375N
Rated power (kW/r/min) 199/2200
Max. output torque (N.m/r/min) 1100/1300~1600

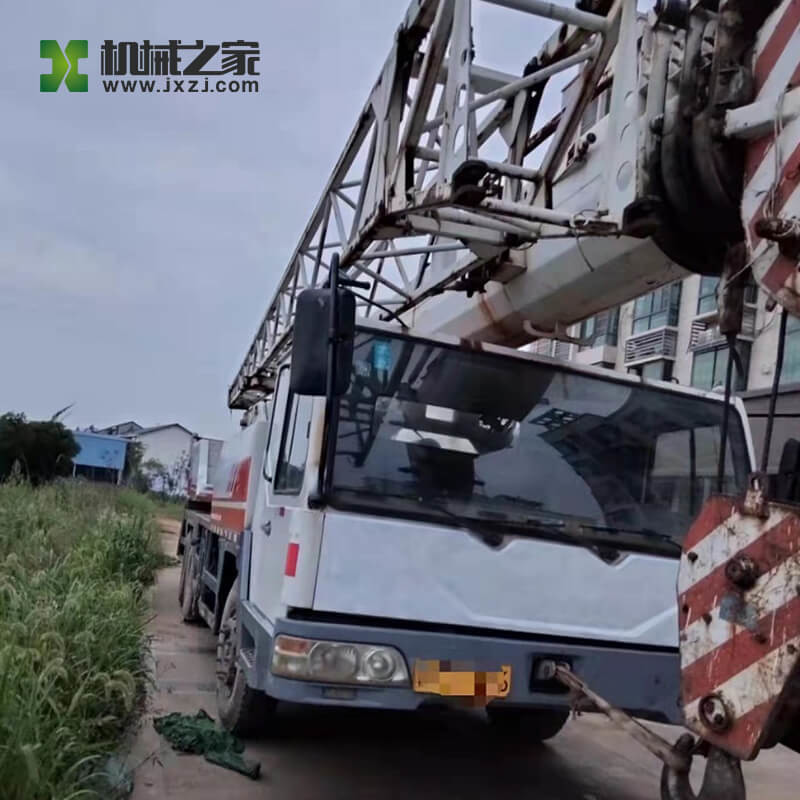

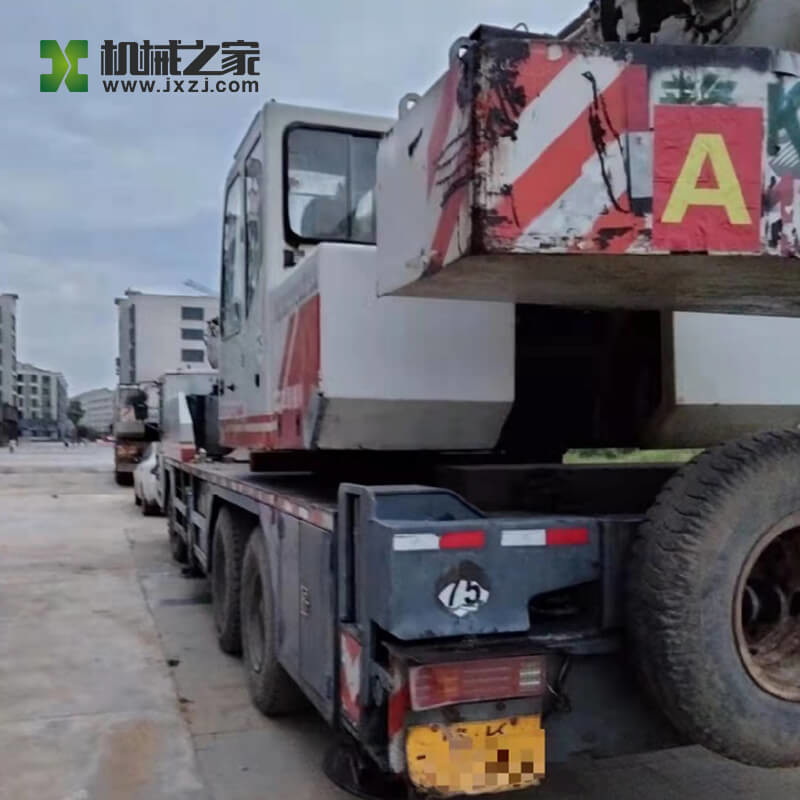

Used Truck Mobile Zoomlion 25 Ton Crane ZLJ5322JQZ25V Second Hand 0Used Truck Mobile Zoomlion 25 Ton Crane ZLJ5322JQZ25V Second Hand 1
