Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane

  • Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane
  • Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane
Place of Origin China
Brand Name XCMG
Certification CE, ISO9001
Model Number JQZ130
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T
Supply Ability 10PCS/M

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 13～58 M
Maximum Lifting Weight 130ton Axle Number 6
Jib 3 Section  production Date 2009
Leave a Message
Product Description

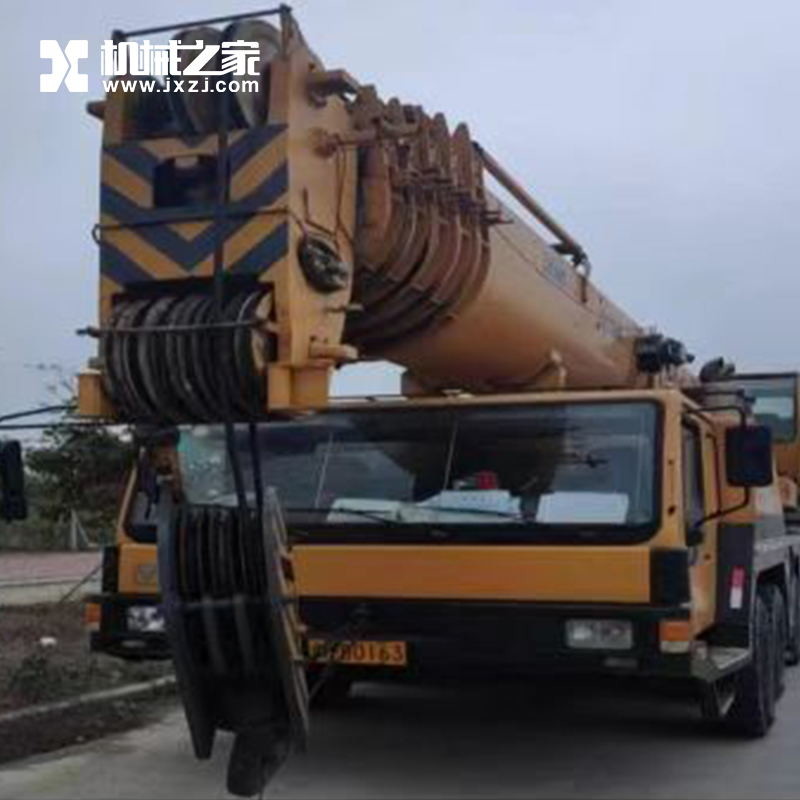

Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane



Production Details:



Model NO.



 XZJ5552JQZ130 Boom Type Telescopic



Max. Rated Lifting Capacity



 130000 kg Max. Lifting Height of Jib 61m



Max Gradeability



 40% Working hours 90000h



Transport Package



 Compliant with export packaging requirements Specification 15785×3000×3995(mm)



Trademark



 XCMG Place of Origin China



HS Code



   Supply Capacity 1 Units Per Month



      This crane is a special work vehicle, with forward/backward extension: 1775mm/255mm (corresponding to a vehicle length of 15675mm), 1925mm/255mm (corresponding to a vehicle length of 15825mm), and the net power of the MC13.48-60 engine is 353kW.

The maximum height from the ground is 530mm, and the rear protection is replaced by the fixed outrigger box, and the height from the ground is 500mm. Remove the lifting hook, counterweight and single pulley at the arm end, jib and bracket, auxiliary Hoisting mechanism (including wire rope and rigging), spare tire and its bracket, counterweight bracket, foot plate, counterweight fixing device (removed when the vehicle length is 15675mm) or main hoisting wire rope (removed when the vehicle length is 15825mm). ABS control Model: 4460037130, CM6XL-6S/6M. Manufacturer: WABCO Automotive Control System (China) Co., Ltd., Guangzhou Kemi Automotive Electronic Control Technology Co., Ltd. Optional cab with different lamps and mirrors.



Product Parameters:



Brand XCMG Type All Terrain Cranes
Rated quality   Total mass 54990
Vehicle weight 54795 Fuel type Diesel
Emissions according to standards GB17691-2005 Euro Ⅴ Number of axes 5
Wheelbase 2650+1650+2900+1650 Axle load 11490/12000/12000/9900/9600
Number of spring pieces -/-/-/-/- Number of tires 10
Tire specifications 385/95R25 170F approaching the departure angle 19/16
Front suspension rear suspension 2660/2135 Front track 2590
Rear track 2590/2590/2590/2590 identification code LXGDPA55×××××××××
Vehicle length 15675,15825 vehicle width 3000
Vehicle height 3980,3995 Cargo length
Cargo width   Cargo height
Top speed 80 Rated passenger
The number of occupants in the cab 3 Steering Type Steering wheel
Total mass of quasi-trailer   Carrier Mass Utilization Coefficient
Maximum load-carrying mass of semi-trailer saddle   Company Name XCMG
Wheelbase XZJ5552JQZ130 Class II Chassis 2
Chassis 3   Chassis 4
Engine model Engine manufacturer Engine Brand Displacement Power
MC13.48-50 Sino   12419 356

Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane 0Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane 1
