Truck Mobile Zoomlion Crane 80 Ton Used Zoomlion ZLJ5504JQZ80V Second Hand
| Place of Origin | China |
|---|---|
| Brand Name | Zoomlion |
| Certification | CE, ISO9001 |
| Model Number | ZLJ5504JQZ80V |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Bulk |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | Used | Maximum Lifting Height | 12.5 - 58.5m |
|---|---|---|---|
| Maximum Lifting Weight | 80ton | Axle Number | 4 |
| Jib | NO | production Date | 2019 |
| Highlight | Truck Mobile Zoomlion Crane 80 Ton,zoomlion crane 80 ton Used,ZLJ5504JQZ80V |
||
Product Description

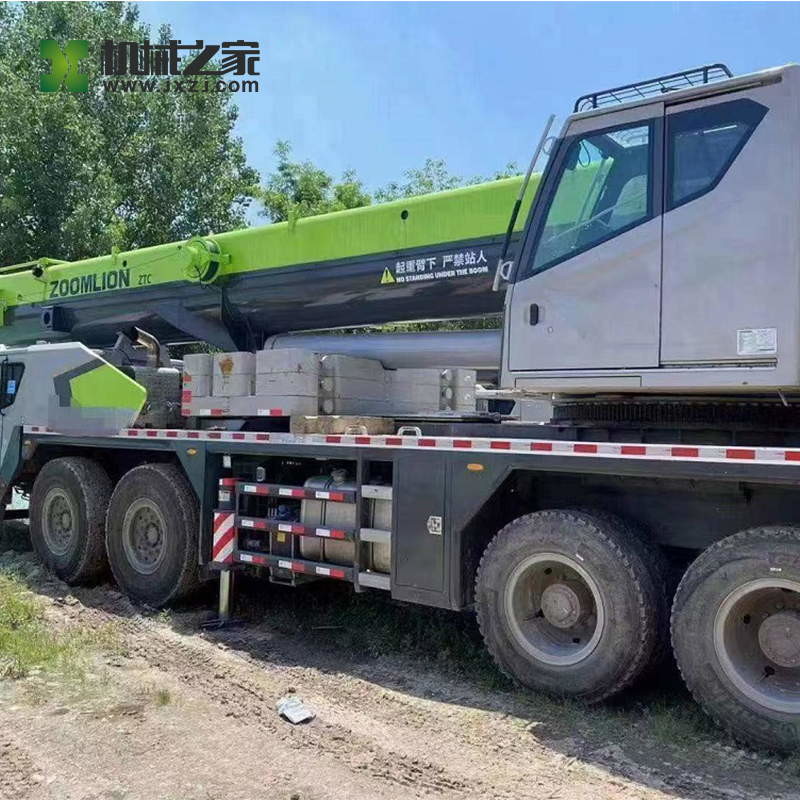

Used Zoomlion Truck Crane Zoomlion ZLJ5504JQZ80V Second Hand Truck Mobile Crane
Production Details:
|
Model NO.
|
ZLJ5504JQZ80V |
Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
80000 kg | Max. Lifting Height of Jib | 86m |
|
Max Gradeability
|
40% | Working Diameter | 23m |
|
Transport Package
|
Complies with Min export packaging requirements | 规格 Specification |
15000×2850×3820mm |
|
Driving mileage
|

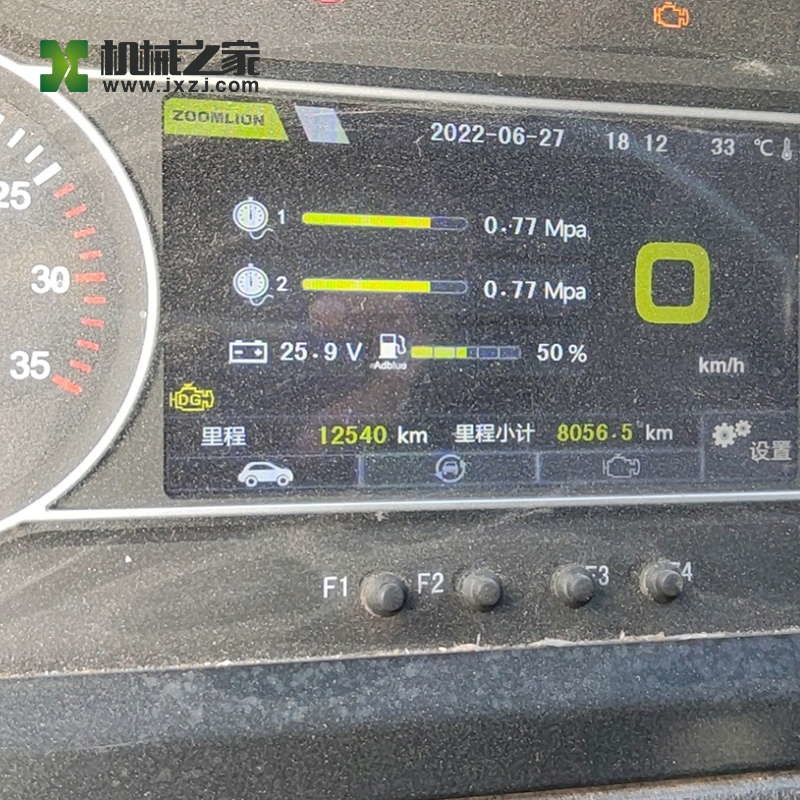

12540km | Working hours | 1990.8h |
|
Trademark
|
Zoomlion | Place of Origin | China |
|
HS Code
|
Supply Capacity | 10 Units Per Month |
ZLJ5504JQZ80V truck crane is a new generation of high-performance product independently developed by our company in order to meet the market demand and integrate many years of experience and advanced technology. The performance parameters such as lifting height, main boom length, working speed and lifting capacity of the crane are all at the current international leading level.
This product is a full-slewing, telescopic boom type, electro-hydraulic proportional control truck crane, using the company's self-made full-drive four-axle dedicated chassis, wide field of vision, luxurious and comfortable decoration, 8 × 4 drive, hydraulic power steering, lightweight flexible.
This product adopts electro-hydraulic proportional reversing valve with load feedback and variable pump plus gear pump system, which makes the working capacity of each actuator fully exerted. The combined action between the mechanisms greatly improves the working efficiency of the crane. It has the characteristics of light and flexible operation, stable and reliable work, stepless speed regulation and so on. In the hydraulic system, there are safety devices such as relief valve, balance valve, hydraulic lock, brake valve, etc., to prevent the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe.
The crane is equipped with a variety of safety devices such as torque limiters and a complete lighting system, which can ensure safe and reliable operation and facilitate night operations.
The product is novel in shape, and integrates beauty in shape, shape and color.
Product Parameters:
| Item | Value | Remarks | |
| Working performance | Max. rated gross lifting capacity (kg) | 80000 | |
| Max. load moment of the basic boom (kN.m) | 3540 | ||
| Max. load moment of the longest main boom (kN.m) | 1728 | ||
| Max. lifting height of the basic boom (m) | 13.7 | ||
| Max. lifting height of main boom (m) | 59.2 |
Boom deformation is not considered |
|
|
Max. lifting height of jib (Optional 9.5m extension boom) (m) |
86.0 | ||
| Working speeds | Max. speed of single rope (main winch) (m/min) | ≤130 | At fourth layer |
| Max. speed of single rope (auxiliary winch) (m/min) | ≤110 | At second layer | |
| Boom derricking up time (s) | 60 | ||
| Boom telescoping out time (s) | 480 | ||
| Rotation speed (r/min) | 0～1.6 | ||
| Traveling parameters | Max. travel speed (km/h) | 90 | |
| Max Climb (%) | 40 | ||
| Min. turning diameter (m) | 23 | ||
| Min. ground clearance (mm) | 310 | ||
| Oil consumption per 100 km (L) | 46 | ||
| Weight parameters | Deadweight in traveling condition (kg) | 50000 | |
| Complete vehicle kerb mass (kg) | 49805 | ||
| Front axle load (kg) | 24000 | ||
| Rear axle load (kg) | 26000 | ||
| Dimensions | Dimensions (L×W×H) (mm) | 15000×2850×3820 | |
| Longitudinal distance of outriggers (m) | 6.38 | ||

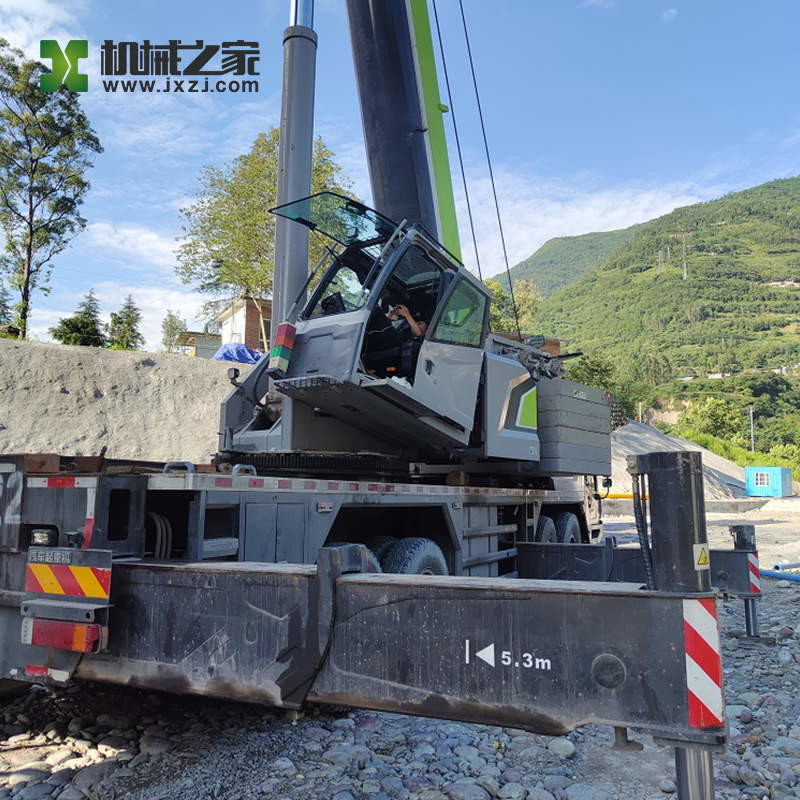

| Outrigger lateral distance (m) | Full extension 8.0 | Half extension 5.3 | |
| Tail turning radius (mm) | 4420 | ||
| Main boom length (m) | 12.5～58.5 | ||
| Main boom elevation angle (°) | -2～80 | ||
| Jib length (m) | 10.4,17.5 | ||
| Offset (°) | 0,15,30 | ||
| Extended boom length (m) | 9.5 | Optional | |
| Working angle of extension boom (°) | 0 | ||
| Goose head frame length (m) | 3 | Optional | |
| Goosehead working angle (°) | 30 | ||
