Used Zoomlion Truck Crane Zoomlion ZLJ5462JQZ70H Second Hand Truck Mobile Crane

Place of Origin China
Brand Name Zoomlion
Certification CE, ISO9001
Model Number ZLJ5462JQZ70H
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Maximum Lifting Height 46.5 - 62.5m
Maximum Lifting Weight 70ton Axle Number 4
Jib 2 Section  production Date 2020
Leave a Message
Product Description

sed Zoomlion Truck Crane Zoomlion ZLJ5462JQZ70H​ Second Hand Truck Mobile Crane


Production Details:


Model No.


JQZ70H Boom Type Telescopic


Max. Rated Lifting Capacity


70000 kg Max. Lifting Height of Jib 44.2m


Max Gradeability


30% Working Diameter 24m


Transport Package


Complies with Min. export packaging requirements Specification 14950×2800×3900MM


Driving Mileage


8400km Working hours 1600h




Zoomlion Place of Origin China


HS Code


  Supply Capacity 10 Units/ Month



       Zoomlion ZLJ5459JQZ70H truck crane is a new generation of high-performance economical product independently developed by our company to meet the market demand and integrate many years of experience and advanced technology. The performance parameters such as lifting height, main boom length, working speed and lifting capacity of the crane are all at the current international leading level.

This product is a full-rotation, telescopic boom type, and manual proportional control truck crane. It is economical, excellent in performance and flexible in operation. It adopts the company's self-made four-axle dedicated chassis, which meets the national and Sichuan emission standards. The cab has a wide field of view, luxurious and comfortable decoration, 8X4 drive, hydraulic power steering, light and flexible.

The product adopts the latest proportional reversing valve with load response and load response variable pump + quantitative gear pump system, so that the working ability of each actuator can be fully utilized, and the joystick operation can realize the main and auxiliary hoisting, luffing, and rotation. The combined action of the telescopic mechanisms greatly improves the working efficiency of the crane. It has the characteristics of light and flexible operation, stable and reliable work, stepless speed regulation and so on. In the hydraulic system, there are safety devices such as relief valve, balance valve, hydraulic lock, and swing buffer valve to prevent the hydraulic system pressure from being too high and prevent accidents caused by oil pipe rupture.

The crane is equipped with a variety of safety devices such as torque limiters and a complete lighting system, which can ensure safe and reliable operation and facilitate night operations.

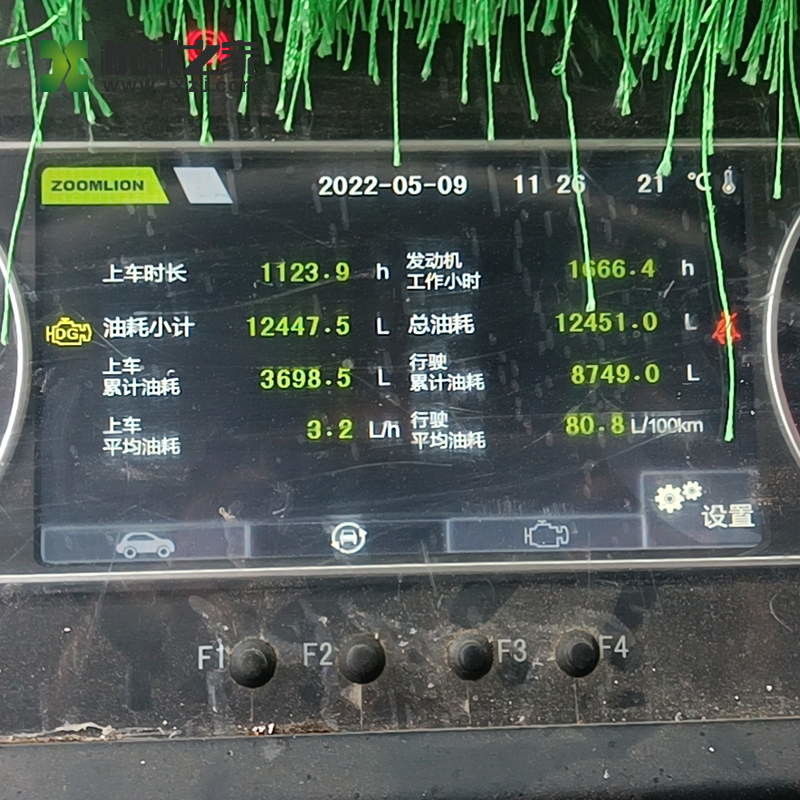

       This product was manufactured in August 2020, with a total of 8,400 kilometers and 1,600 hours of driving. The highest configuration in this series, without any maintenance, is your best choice.



Product Parameters:


Model ZLJ5462JQZ70H
Overall length 14950mm
Overall width 2800mm
Overall height 3900mm
Curb weight 45805kg
Total mass 46000kg
Number of seats 3
Top speed 85km/h


Chassis parameters/configuration


Chassis model ZLJ5460JQZV5 Class II
Front suspension rear suspension 2692/2545mm
Number of spring pieces 12/12/-
Number of axes 4
Wheelbase 1450+4500+1350mm
Axle load 10000/10000/13000/13000kg
Front track 2290/2290mm
Rear track 2060/2060mm
Approaching the departure angle 19.5/12.1°




Number of tires 12
Tire specifications 325/95R24/12.00R24


Engine/Motor Parameters





Brand Power Displacement
WP10.375E53 Weichai Power Co., Ltd. 276kw 9726ml
