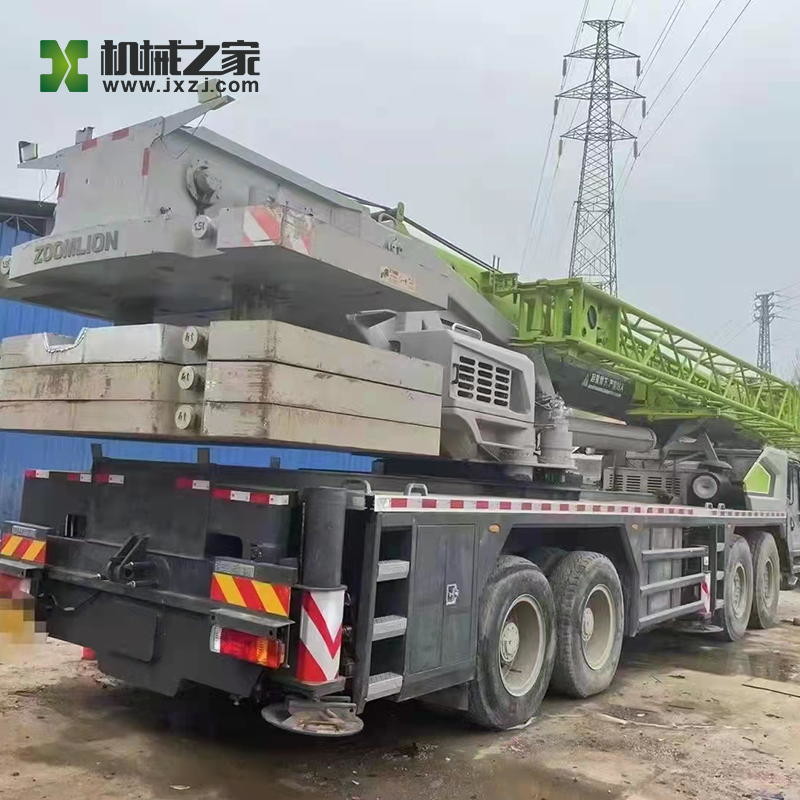

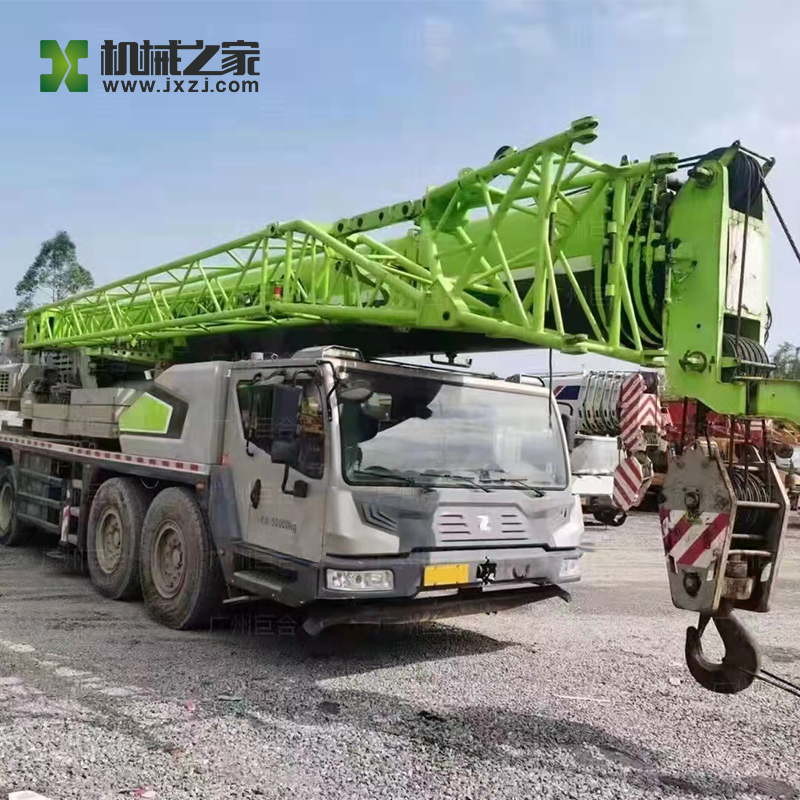

ZTC80V Zoomlion Used Truck Cranes 80ton 49m Second Hand Crane Trucks

  • ZTC80V Zoomlion Used Truck Cranes 80ton 49m Second Hand Crane Trucks
  • ZTC80V Zoomlion Used Truck Cranes 80ton 49m Second Hand Crane Trucks
Place of Origin China
Brand Name Zoomlion
Certification CE, ISO9001
Model Number ZTC80V
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Status Used Max. Lifting Height 13 - 72..5m
Max. Lifting Weight 80ton Axle No. 4
Jib 2 Section Production Date 2019
High Light

ZTC80V Used Truck Cranes

,

49m Used Truck Cranes

,

80ton Second Hand Crane Trucks
Leave a Message
Product Description

Used Zoomlion Truck Crane Zoomlion ZTC80V Second Hand Truck Mobile Crane



Production Details:





Model No.



 ZTC80V Boom Type Telescopic



Max. Rated Lifting Capacity



 80000 kg Max. Lifting Height of Jib 49m



Max Gradeability



 30% Working Diameter 24m



Transport Package



 Complies with Min. export packaging requirements Specification 15100 × 2850 × 3820M



Driving Mileage



 60000km Working hours 3000h



Trademark



 Zoomlion Place of Origin China



HS Code



   Supply Capacity 10 Units/ Month







  • Precise and stable:

  • A custom slow gear function can keep the lowest slewing speed at 0.1°/s and hosting speed at 2.5 m/min. Therefore, the extremely precise lifting operation can be guaranteed.

  • Excellent performance:
  •  Longest five-section U-shaped boom in its category, namely 49 m,Comprehensive lifting performance is ahead of the same tonnage crane by 5% - 15%,Its OMs are comparable with 90 ton truck cranes.





  • Energy conservation and environmental protection:

  • Intelligent multi-power mode energy saving system ensures that average fuel consumption is 4.5 L/h during lifting. In addition, it can save fuel by 20%.



  • Intelligent and internet of things:
  • The operator is able to manage a full range of information by mobile apps.





  • Heavy load and ease driving:
  •  During short-distance transit, 10.5 ton counterweight can be attached on heavy special purpose chassis of which the loading capacity is 50 ton；rong power, Max. driving speed is 90 km/h.



Product Parameters:

Specifications



Unit



Value


Max. rated lifting capacity kg 80000
Max. load moment of basic boom kN.m 3180
Max. load moment of main boom (fully extended) kN.m 1710
Main boom length (fully extended) m 49
Main boom length (fully extended) + longest Jib length m 72.5
Max. hoist rope speed
(main/auxiliary winch)		 m/min 130 / 110
Max. driving speed km/h 90
Deadweight in driving condition kg 50000
Overall dimensions (L × W × H ) mm 15100 × 2850 × 3820
Outrigger spread (L × W) m 6.38 × 8.0
Rated power / RPM kW/r/min 276 / 1900
Max. torque / RPM N.m/r/min 1800 / 1000 – 1400

ZTC80V Zoomlion Used Truck Cranes 80ton 49m Second Hand Crane Trucks 0ZTC80V Zoomlion Used Truck Cranes 80ton 49m Second Hand Crane Trucks 1
