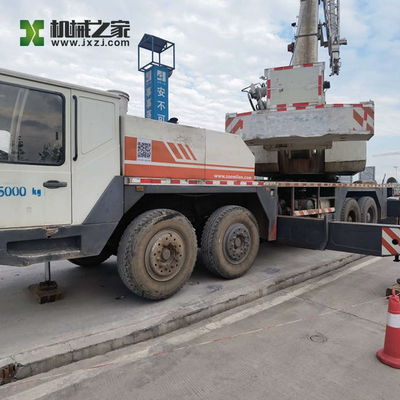

QY70V Zoomlion Second Hand Truck Crane Used Truck 70 Ton Mobile Crane

Place of Origin China
Brand Name Zoomlion
Certification CE, ISO9001
Model Number QY70V
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Condition Used Maximum Lifting Height 46.5 - 62.5m
Maximum Lifting Weight 70ton Axle Number 4
Jib 2 Section  production Date 2010
High Light

Zoomlion Second Hand Truck Crane


QY70V Second Hand Truck Crane


Used 70 Ton Mobile Crane

Leave a Message
Product Description

Used Zoomlion Truck Crane Zoomlion QY70V Second Hand Truck Mobile Crane


Production Details:


Model No.


QY70V Boom Type Telescopic


Max. Rated Lifting Capacity


70000 kg Max. Lifting Height of Jib 44.2m


Max Gradeability


30% Working Diameter 24m


Transport Package


Complies with Min. export packaging requirements Specification 14×2.75×3.75M


Driving Mileage


140000km Working hours 12000h




Zoomlion Place of Origin China


HS Code


  Supply Capacity 10 Units/ Month


Zoomlion 70V truck crane is new generation of high-performance products independently developed by our company in order to meet the market demand and integrate many years of experience and advanced technology. The performance parameters such as the lifting height, main length, working speed and lifting capacity of the crane are all at the current international leading level.

This product is a full-rotation, telescopic, electro-hydraulic proportional control truck crane, with excellent performance,

Flexible operation and other characteristics, the main boom can be expanded and retracted arbitrarily, and the outriggers are fully extended and half-extended. Made by our company

Driving on a special chassis for four axles, meeting the Ouchuan or T3 emission standards, the cab has a wide field of vision, luxurious and comfortable decoration, 8X4 drive

Dynamic, hydraulic power steering, light and flexible.

This product adopts the latest electro-hydraulic proportional reversing valve with load feedback and load feedback variable pump + quantitative gear pump system, so that the working ability of each actuator can be fully exerted. The combined action of the swing, slewing, and telescopic mechanisms greatly improves the working efficiency of the crane. It has the characteristics of light operation, flexibility, stable and reliable work, stepless speed regulation and so on. In the hydraulic system, there are safety devices such as relief valve, balance valve, hydraulic lock, rotary buffer valve, etc., to prevent the hydraulic system pressure from being too high and avoid accidents caused by oil pipe rupture. The control system uses the bus technology, has the function of fault self-diagnosis, and is equipped with a full-screen liquid crystal display. It can display the pressure of the fault point in real time and provide troubleshooting methods.

The crane is equipped with a variety of safety devices such as torque limiters and a complete lighting system, which can ensure safe and reliable operation and facilitate night operations.

The product has a novel shape, which integrates beauty in shape, line shape and color. Its appearance has won the national patent and won the special prize for appearance at the 2005 Beijing International Construction Machinery Exhibition.


Product Parameters:




Working performance Max. rated lifting capacity (kg) 70000
Max. load moment of the basic boom (kN.m) 2646
Max. load moment of the longest main boom (kN.m) 1376
Max. lifting height of the basic boom (m) 12.8
Max. lifting height of main boom (m) 46.4
Max. lifting height of jib (m) 62.5
Working speeds Max. speed of single rope (main winch) (m/min) 140
Max. speed of single rope (auxiliary winch) (m/min) 120
Boom derricking up time (min) 55
Boom telescoping out time (s) 110
Rotation speed (r/min) 0-1.7
Traveling parameters Max. travel speed (km/h) 75
Max. gradeability (%) 37
Min. turning diameter (m) ≤20
Min. ground clearance (mm) 300
Oil consumption/100km (L) 48
Weights Deadweight in traveling condition (kg) 48000
Complete vehicle kerb mass (kg) 47870
Front axle load (kg) 24000
Rear axle load (kg) 24000
Dimensions Dimensions (L×W×H) (mm) 14500×2800×3850
Longitudinal distance of outriggers (m) 6.15
Outrigger lateral distance (m)

Full extension 7.8,

Half extension 5.17

Tail turning radius (mm) 4280
Main arm length (m) 12.0—46.0
Main boom elevation angle ° -2- 80
Jib length (m) 9.5,16.0
Offset (°) 0,15,30
Engine Chassis engine model

Weichai (Hangfa) WD615.46 rated power (kw/rpm) 266/2200
