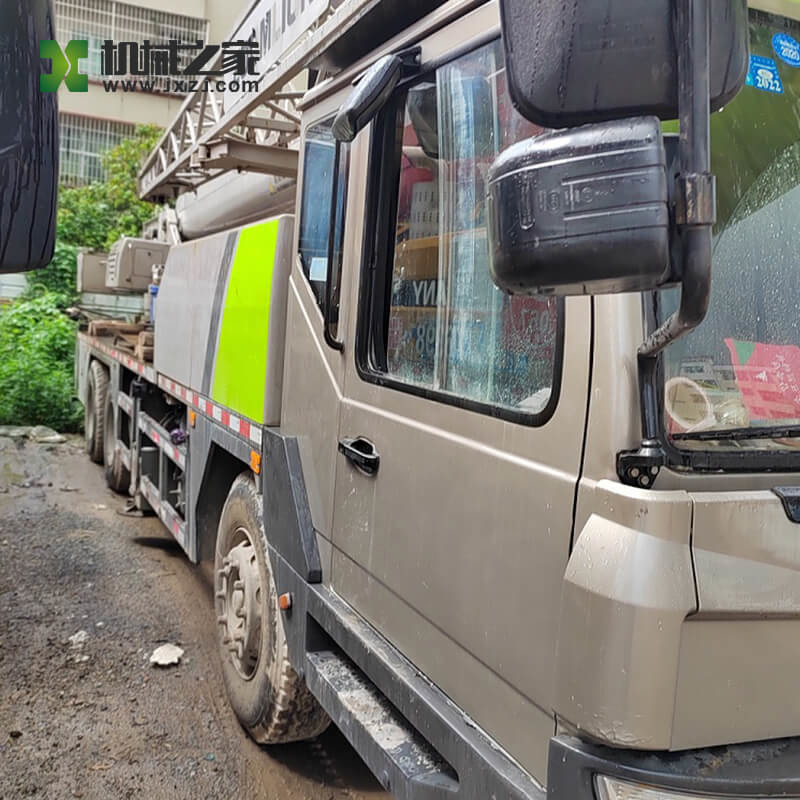

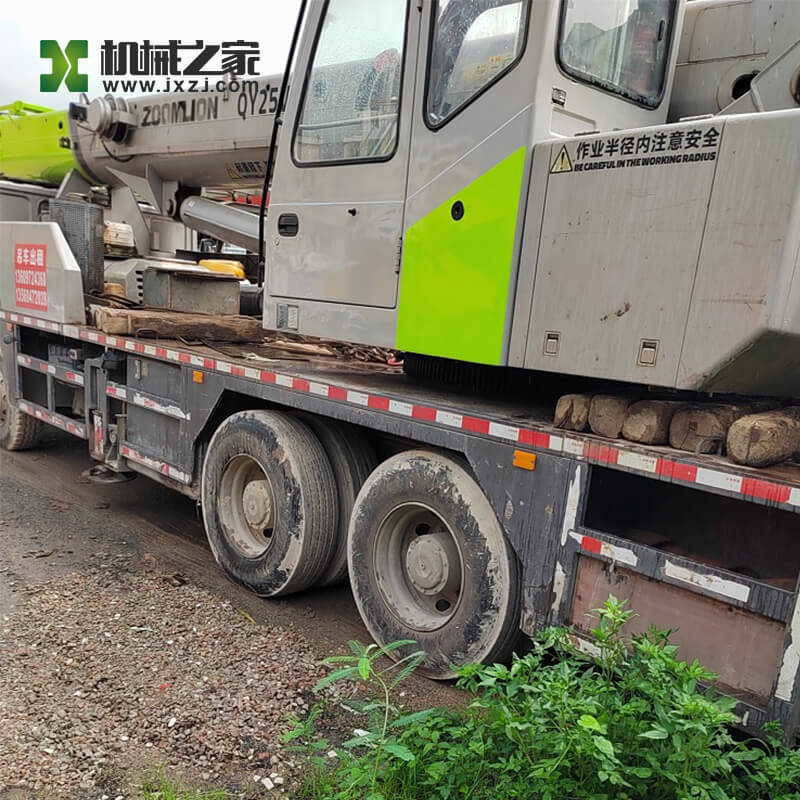

Used Zoomlion Mobile Crane 25 Ton Zoomlion ZLJ5302JQZ25V
| Place of Origin | China |
|---|---|
| Brand Name | Zoomlion |
| Certification | CE, ISO7501 |
| Model Number | ZLJ5302JQZ25V |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Bulk |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Status | Used | Max. Lifting Height | 11 - 47m |
|---|---|---|---|
| Max. Lifting Weight | 25ton | Axle No. | 3 |
| Jib Boom | 2 Section | Production Date | 2016 |
| High Light | Used mobile crane 25 ton,Zoomlion mobile crane 25 ton,ZLJ5302JQZ25V |
||
Product Description
Used Zoomlion Truck Crane Zoomlion ZLJ5302JQZ25V Second Hand Truck Mobile Crane
Production Details:
|
Model NO.
|
ZLJ5302JQZ25V | Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
25000 kg | Max. Lifting Height of Jib | 39m |
|
Max Gradeability
|
37% | Working Diameter | 23m |
|
Transport Package
|
Complies with Min. export packaging requirements | Specification | 12700×2500×3450mm |
|
Driving mileage
|
38381.4Km | Working hours | 12088.5h |
|
Trademark
|
Zoomlion | Place of Origin | China |
|
HS Code
|
Supply Capacity | 10 Units Per Month |
- Full-slewing, telescopic boom type, hydraulic proportional control five-section boom truck crane.
- Its chassis adopts the company's own full drive three axles special chassis, discharged from Guochuan, also has a wide field of vision.
- Ensure that the working ability of each actuator can be fully utilized, to preventing the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe,
- Uses the newest hydraulic proportional reversing valve with load feedback and quadruple gear pump system. Equipped with relief valve, balance valve, hydraulic lock, brake valve and other safety devices.
- Equipped with a variety of safety devices, including torque limiters and a complete lighting system, that can ensure the safety and reliability of the work, also facilitate night work.
- Exhaust emissions comply with Euro III, its safety devices meet the requirements of CCC certification.
Product Parameters:
|
Item
|
Value
|
Remark
|
||
| Working performance | Max. rated gross lifting capacity (kg) | 25000 | ||
| Max. load moment of the basic boom (kN.m) | 980 | |||
| Max. load moment of the longest main boom (kN.m) | 494 | |||
| Max. lifting height of the basic boom (m) | 11.0 | |||
| Max. lifting height of main boom (m) | 39 |
Boom deformation is not considered |
||
| Max. lifting height of jib (m) | 47.0 | |||
| Working Speeds | Max. speed of single rope (main winch) (m/min) | 120 | At fourth layer | |
| Max. speed of single rope (auxiliary winch) (m/min) | 170 | At second layer | ||
| Boom derricking up time (s) | 40 | |||
| Boom telescoping out time (s) | 80 | |||
| Max. slewing speed (r/min) | 0～2.2 | |||
| Traveling parameters | Max. travel speed (km/h) | 78 | ||
| Max. gradeability (%) | 37 | |||
| Min. turning diameter (m) | 22 | |||
| Min. ground clearance (mm) | 220 | |||
| Limits for exhaust pollutants and smoke | Conform to related standards | GB3847-2005 GB17691-2005 Phase III | ||
| Oil consumption per 100 km (L) | 45 | |||
| Weights | Deadweight in traveling condition (kg) | 31700 | ||
| Complete vehicle kerb mass (kg) | 31570 | |||
| Front axle load (kg) | 6900 | |||
| Rear axle axle load (kg) | 24800 | |||
| Dimensions | Dimensions (L×W×H) (mm) | 12700x2500x3450 | ||
| Longitudinal distance of outriggers (m) | 5.36 | |||
| Outrigger lateral distance (m) | 6.1 | |||
| Main arm length (m) | 10.4~39.2 | |||
| Main boom elevation angle (°) | -2～80 | |||
| Jib length (m) | 8 | |||
| Jib Mounting Angle (°) | 0 , 30 | |||
| Chassis | model | zlj5325 | ||
| Type | Class II | |||
| Engine | Model | WP10.375N | ||
| Rated power (kW/r/min) | 199/2200 | |||
| Max. output torque (N.m/r/min) | 1100/1300~1600 | |||
